RAPID CONFIGURATION
22 MATRIX 320
Advanced Setup for Manual Adjustable Focus Models (C-Mount)
To begin configuration, the reader must be correctly mounted at the correct reading dis-
tance for your application so that its Field of View covers the application reading area.
1. Set the Diaphragm to suit your application and block the lens ring.

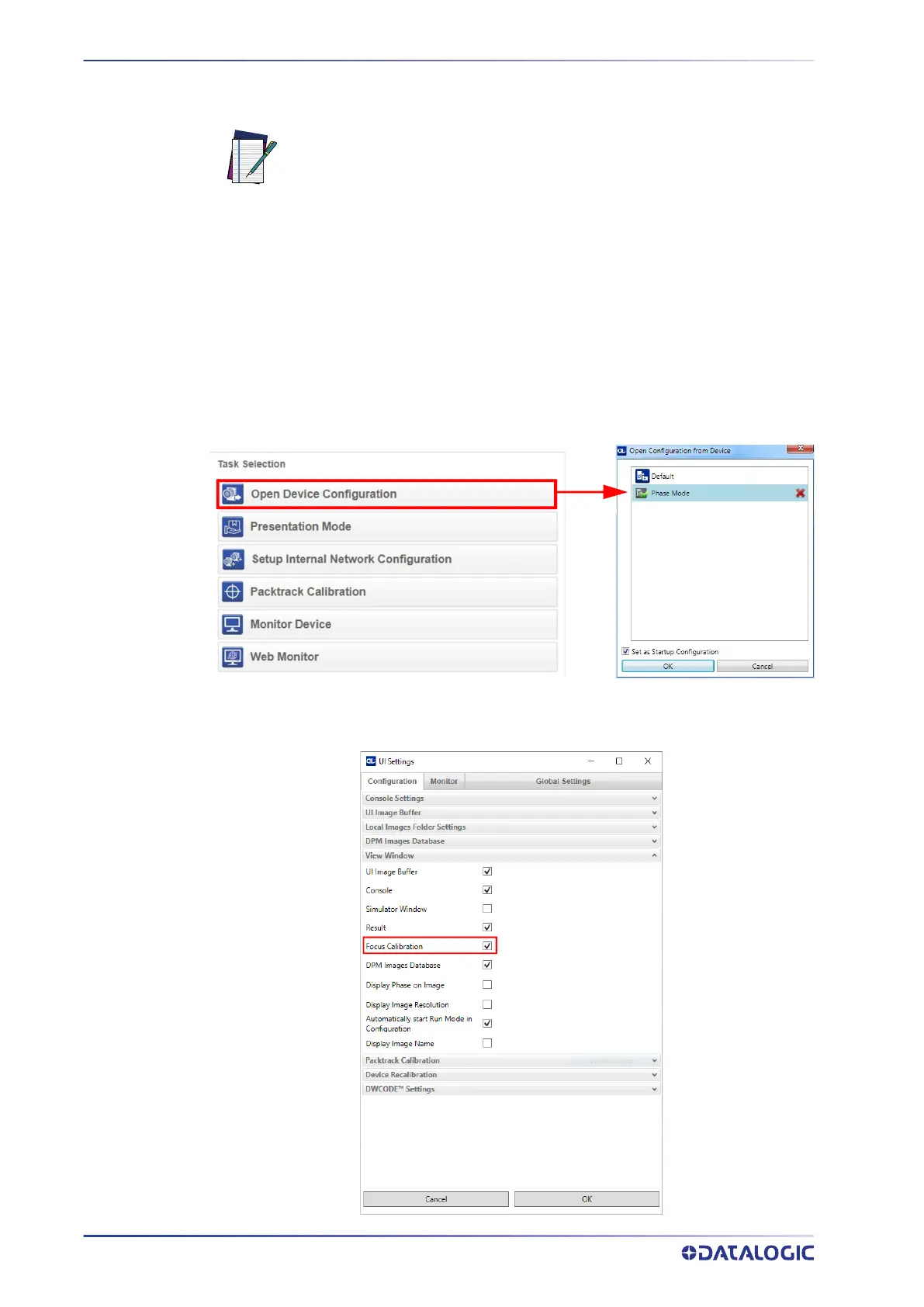

2. From the Task Area select Open Device Configuration.
3. The Open Device Configuration window opens showing the list of currently saved
configurations (jobs) saved on the device. For new devices, the only saved job is
the Default configuration. Click OK. The device enters run mode and begins acquir-
ing images.
4. Make sure that the Focus Calibration tool is enabled under Options > UI Settings
Configurations:
NOTE
For Software Adjustable Focus models, go to "
Advanced Setup for Soft-
ware Adjustable Focus Models (Liquid Lens)" on page 16
then continue
the configuration with the "
Reading Phase" on page 25.
