ID-NET Response Time
The following figure shows the response time of the ID-NET network. This time is
defined as the period between the Trigger activation and the beginning of data trans-
mission to the Host.

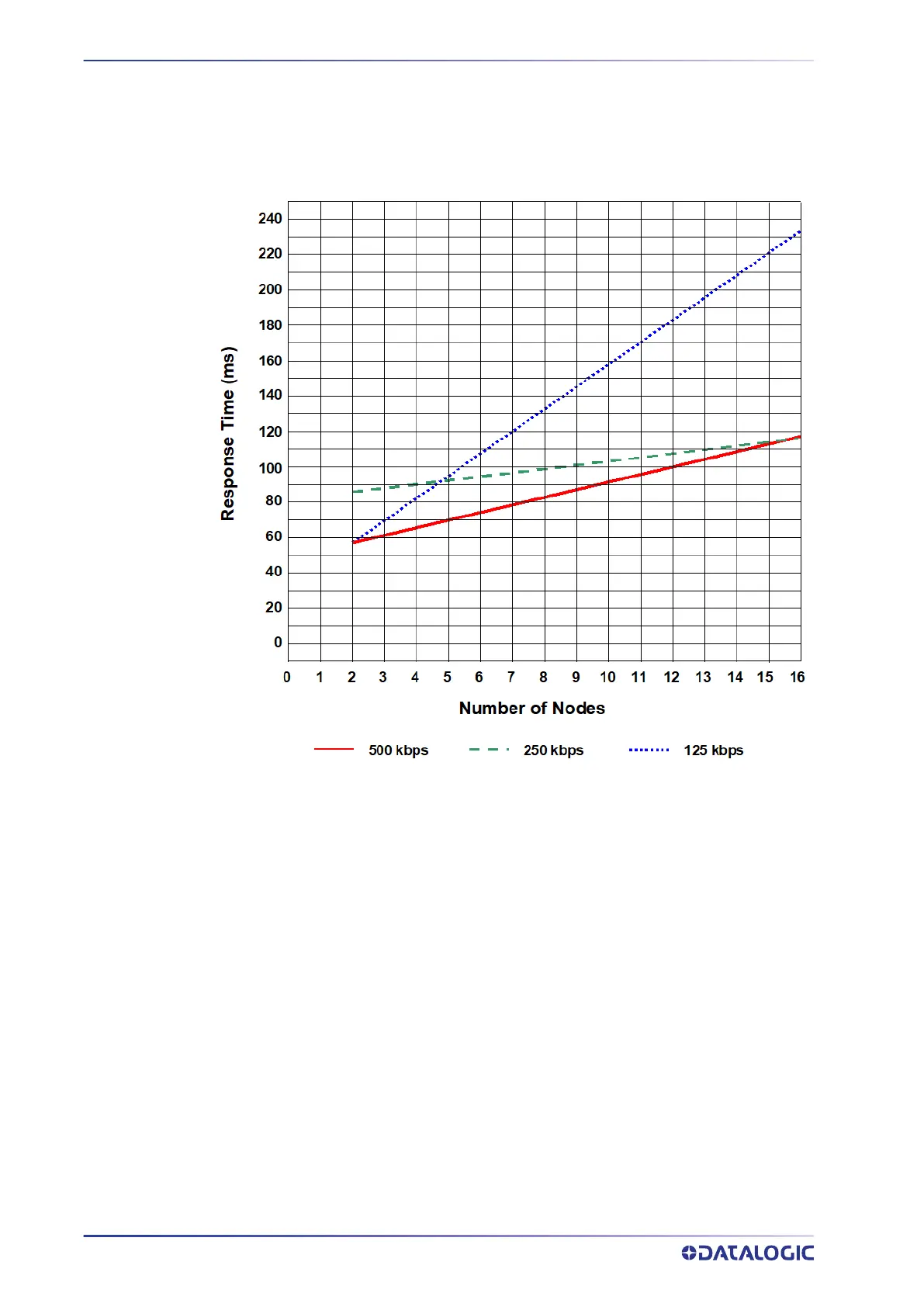

Figure 57 - ID-NET Response Time
Conditions
• ID-NET M/S Synchronized layout
• message length = 50 bytes per node
