SERIAL CONNECTION
PRODUCT REFERENCE GUIDE 105
SERIAL CONNECTION
In this layout the data is transmitted to the Host on the main serial interface. The Ether-
net interface can be used for reader configuration by connecting a laptop computer run-
ning DL.CODE.
Data can be transmitted on the RS232 auxiliary interface independently from the main
interface selection to monitor data.
When One Shot or Phase Mode operating mode is used, the reader can be activated by
an External Trigger (for example a pulse from a photoelectric sensor) when the object
enters its reading zone.

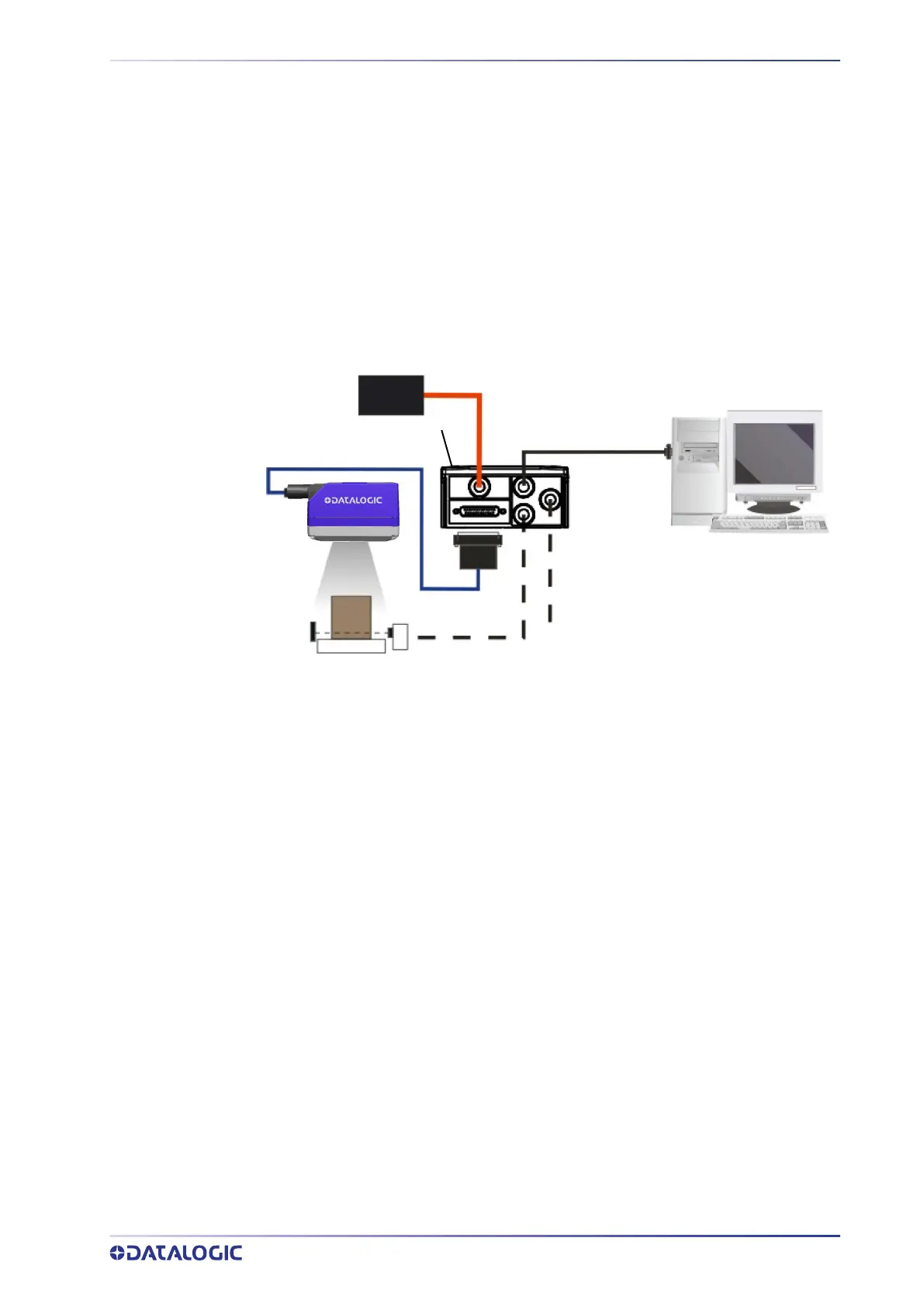

Figure 80 - Serial Interface Point-to-Point Layout
All devices always support multiple output channels (i.e. for data monitoring).
PG6000
Host
CAB-DSxx-S
Matrix 320
CBX



Main Serial Interface (RS232 or RS422 Full-Duplex)
Auxiliary Serial Interface (RS232 - Data Monitor)
External Trigger (for One Shot or Phase Mode)
Alone



Terminal
