CBX ELECTRICAL CONNECTIONS
90 MATRIX 320
AUXILIARY RS232 INTERFACE
The RS232 auxiliary interface is available for Point-to-Point connections. When it is con-
nected to the host computer it allows transmission of code data.
The parameters relative to the aux interface (baud rate, data bits, etc.) can be defined
through the Reading Phase step (Channels) in DL.CODE.

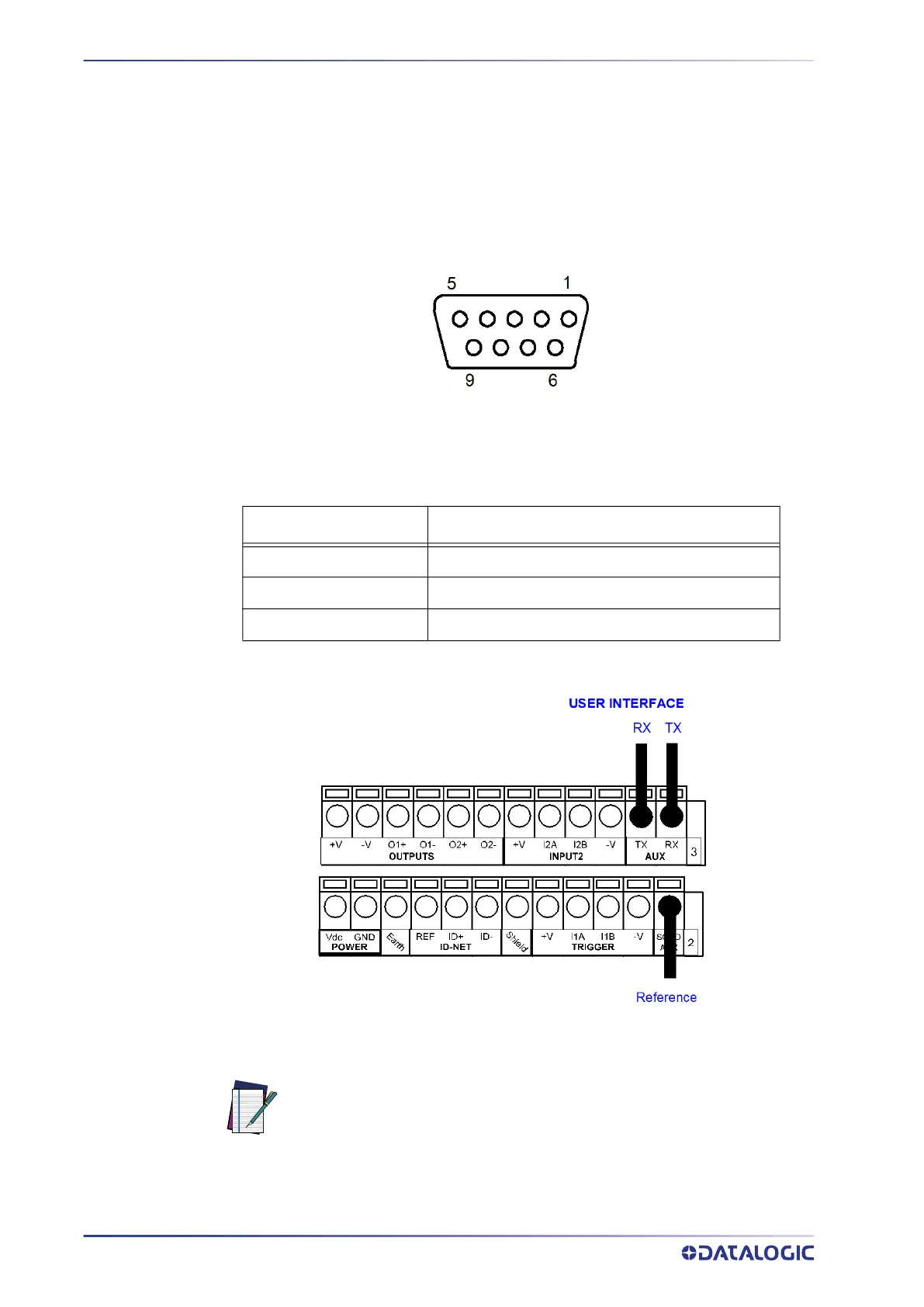

The 9-pin female Auxiliary Interface connector inside the CBX is the preferred connector
for temporary communication monitoring.
Figure 61 - 9-pin female connector
If permanent system wiring is required, the following pins are used to connect the
RS232 auxiliary interface:
Figure 62 - RS232 Auxiliary Interface Connections
CBX100/500 Description
TX Auxiliary Interface Transmit Data
RX Auxiliary Interface Receive Data
SGND Auxiliary Interface Reference
NOTE
Do not connect the Aux Interface to the CBX spring clamp connectors and
the 9-pin connector simultaneously.
