Output 1 and 2 Connections Using External Power

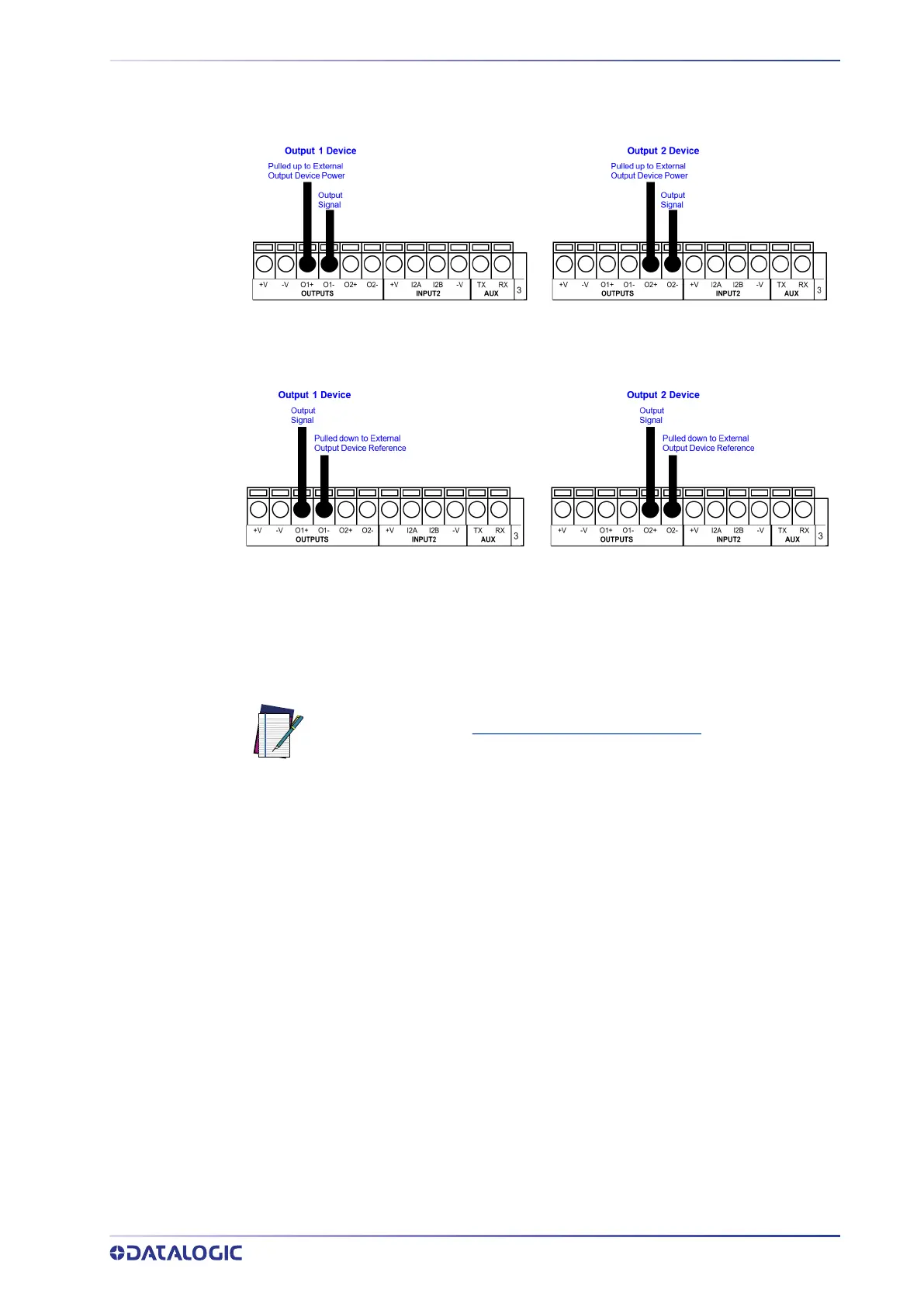

Figure 74 - PNP/Open Emitter Output Using External Power
Figure 75 - NPN/Open Collector Output Using External Power
Output 3 is not opto-isolated but can be assigned to the same events. By default it is
not assigned to any event. The CBX500 must be used to connect this output.
NOTE
For Output 3, set the Line Type configuration parameter
according to the
hardware connection to the CBX: NPN, PNP or Push-Pull.
