MATRIX 320
GREEN/RED SPOT AND 360° VISUAL FEEDBACK
Matrix 320 is equipped with a Green/Red Spot and 360° Visual Feedback through col-
ored LEDs mounted around the illuminator window cover to provide immediate feed-
back on the device status during operation.
The available colors are activated by the following default events:
• Blue = Configuration Mode (Visual Feedback only)
• Green = Good Read
• Red = No Read

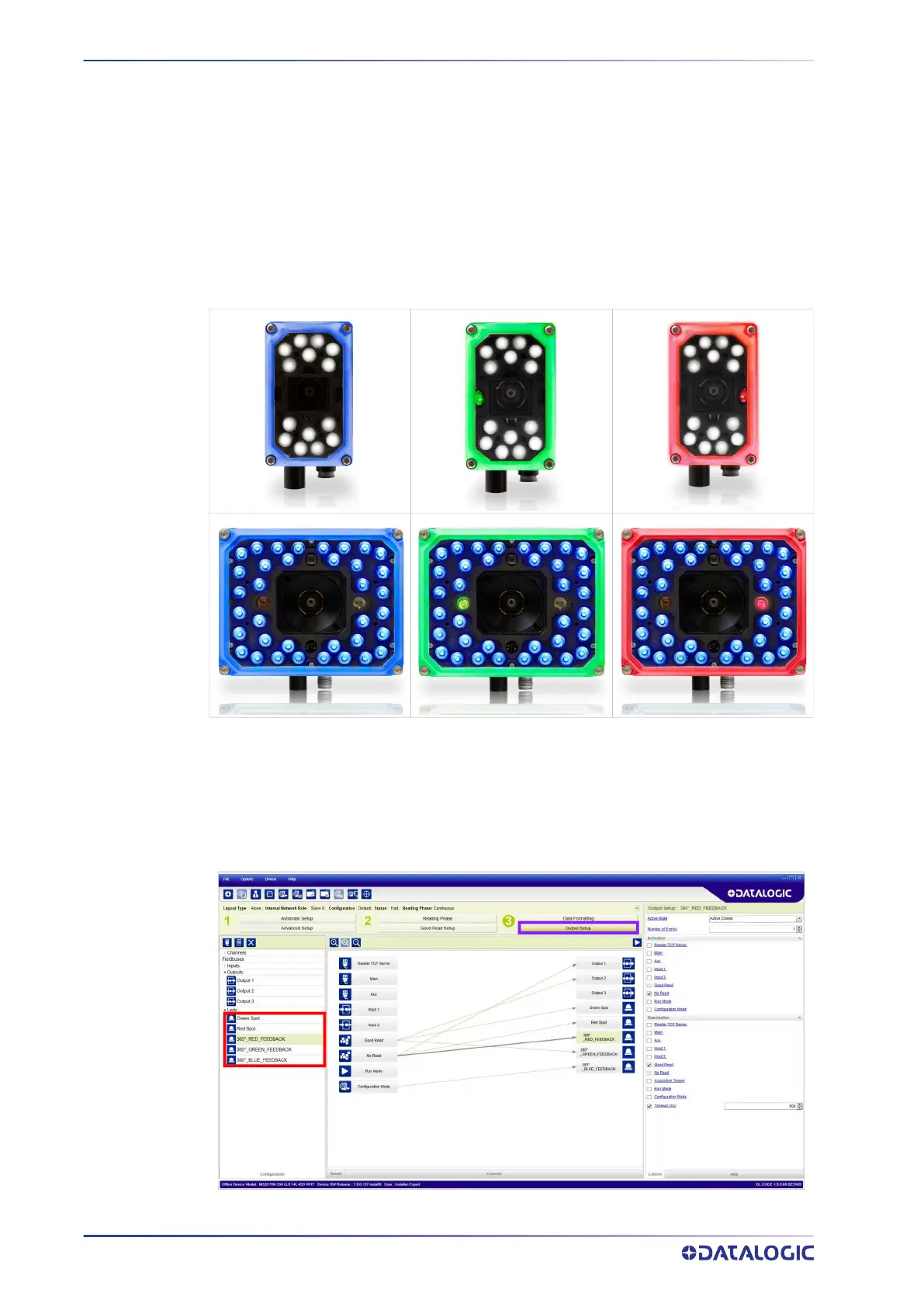

Figure 17 - 360° Visual Feedback and Green/Red Spot
On DL.CODE it is possible to select the events that will activate each Spot and 360° Feed-
back (e.g. Communication Channel Strings, Inputs, Read Events, Operating Mode, Script
Events). To do this, go to Output Setup > LEDs.
