ON-BOARD ETHERNET CONNECTOR
PRODUCT REFERENCE GUIDE
193
* Output 1 and Output 2 are opto-coupled when using a CBX.
** Do not leave floating, see
"RS422 Full Duplex Interface" on page 84 for connection
details.
In order to meet EMC requirements:
• connect the reader chassis to the plant earth ground by means of a flat copper
braid shorter than 100 mm;
• connect your cable shield to the locking ring nut of the connector.
ON-BOARD ETHERNET CONNECTOR
An M12 X-Coded female connector is provided for the on-board Ethernet connection.
This interface is IEEE 802.3 10 BaseT and IEEE 802.3u 100 BaseTx compliant.

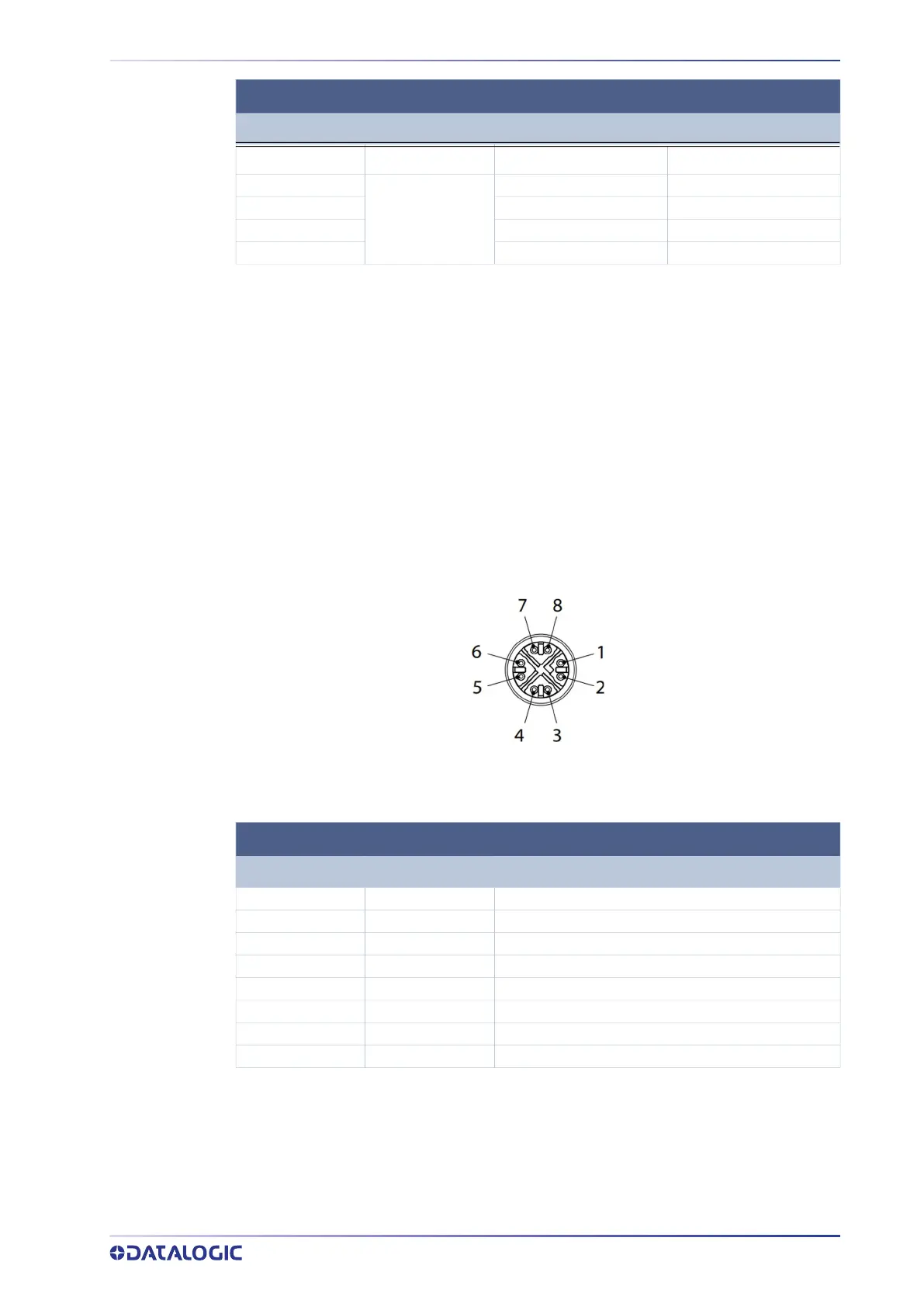

Figure 2 - M12 X-Coded Female Ethernet Network Connector
ID-NET NETWORK TERMINATION
The network must be properly terminated by a 120 Ohm resistor at the first and last
reader of the network.
RS232 RS422 Full-Duplex
17
Main Interface
(SW Selectable)
TX TX+
11 RX RX+ **
12 - TX-
10 - *RX-
POWER, COM AND I/O CONNECTOR PINOUT
PIN NAME DESCRIPTION
ON-BOARD ETHERNET NETWORK CONNECTOR PINOUT
PIN NAME DESCRIPTION
1 DA+ Bidirectional data DA+
2 DA- Bidirectional data DA-
3 DB+ Bidirectional data DB+
4 DB- Bidirectional data DB-
5 DD+ Bidirectional data DD+
6 DD- Bidirectional data DD-
7 DC- Bidirectional data DC-
8 DC+ Bidirectional data DC+
