CBX ELECTRICAL CONNECTIONS
96 MATRIX 320
Input 2 Connections Using External Power

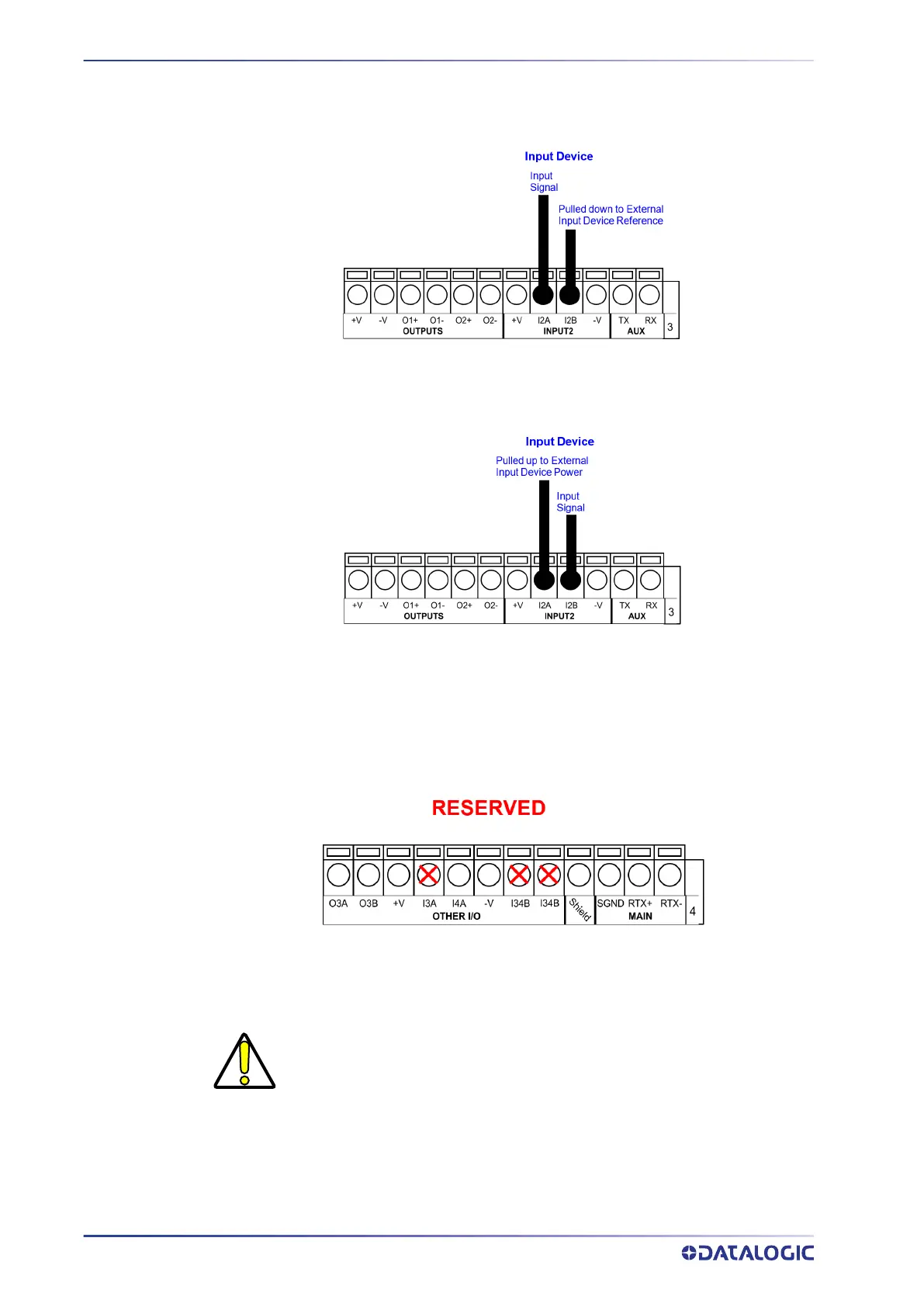

Figure 69 - PNP Input 2 Using External Power
Figure 70 - NPN Input 2 Using External Power
Input 3 Connections (CBX500 Only)
Figure 71 - Input 3 Using External Power
CAUTION
Do not connect to I3A or I34B signals, they are reserved.
