INTRODUCTION
42
MATRIX 320
Diagnostic Indication
The “STATUS” (red) and “READY” LED (green) blink simultaneously to signal the pres-
ence of an error. Diagnostic message transmission on interfaces can be enabled to pro-
vide details about specific error conditions. See the Diagnostic Error Conditions chart in
the Diagnostic page of the DL.CODE Monitor.
MODEL DESCRIPTION

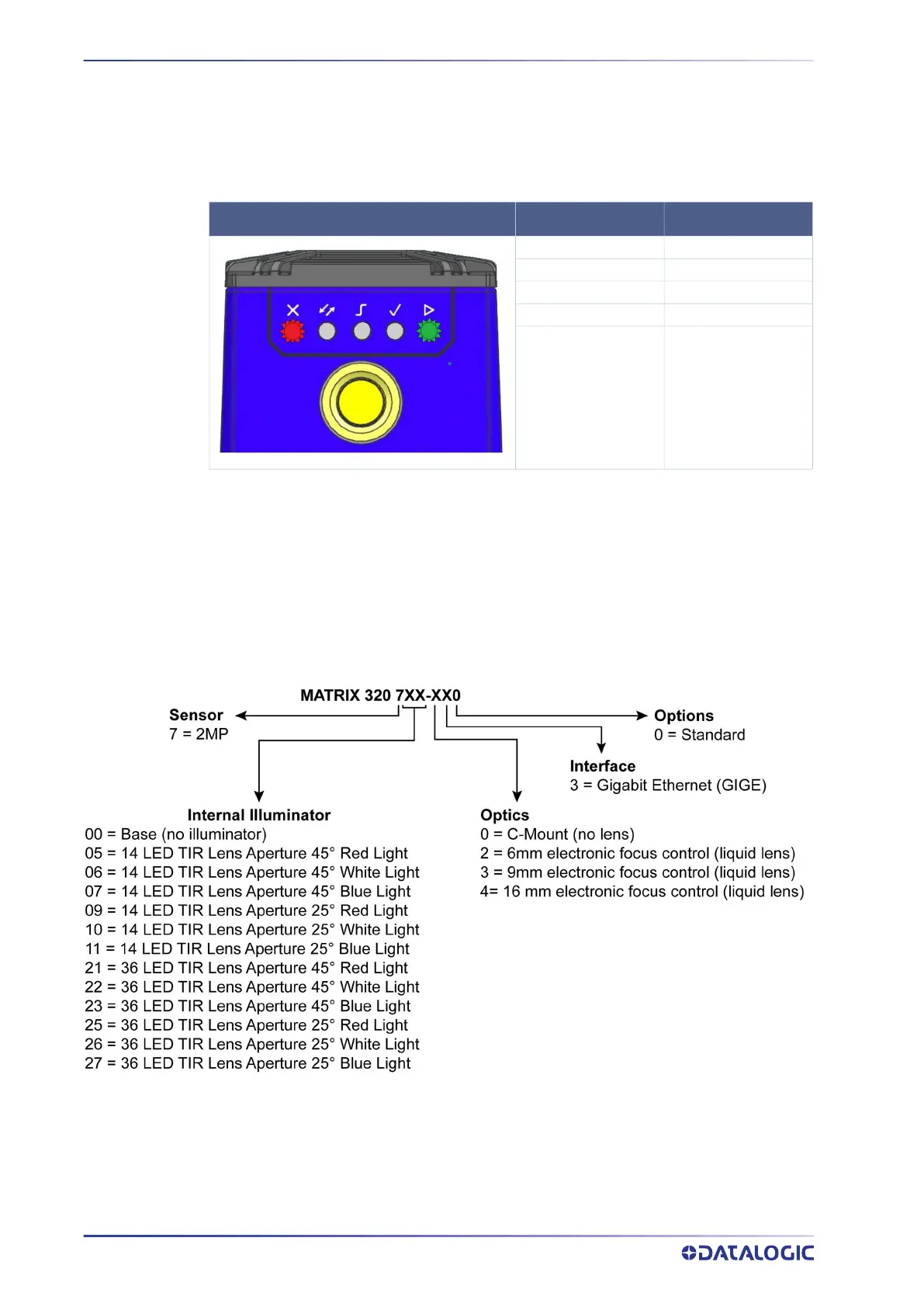

Matrix 320 readers are described by their model number which indicates the character-
istics listed in the diagram below. Not all combinations are available. For a complete list
of combinations see "
Available Models" on page 43.
LED STATUS
Ready Blink
Good
Trigger
COM
Status Blink
To Next Page
