RAPID CONFIGURATION
26
MATRIX 320
Good Read Setup

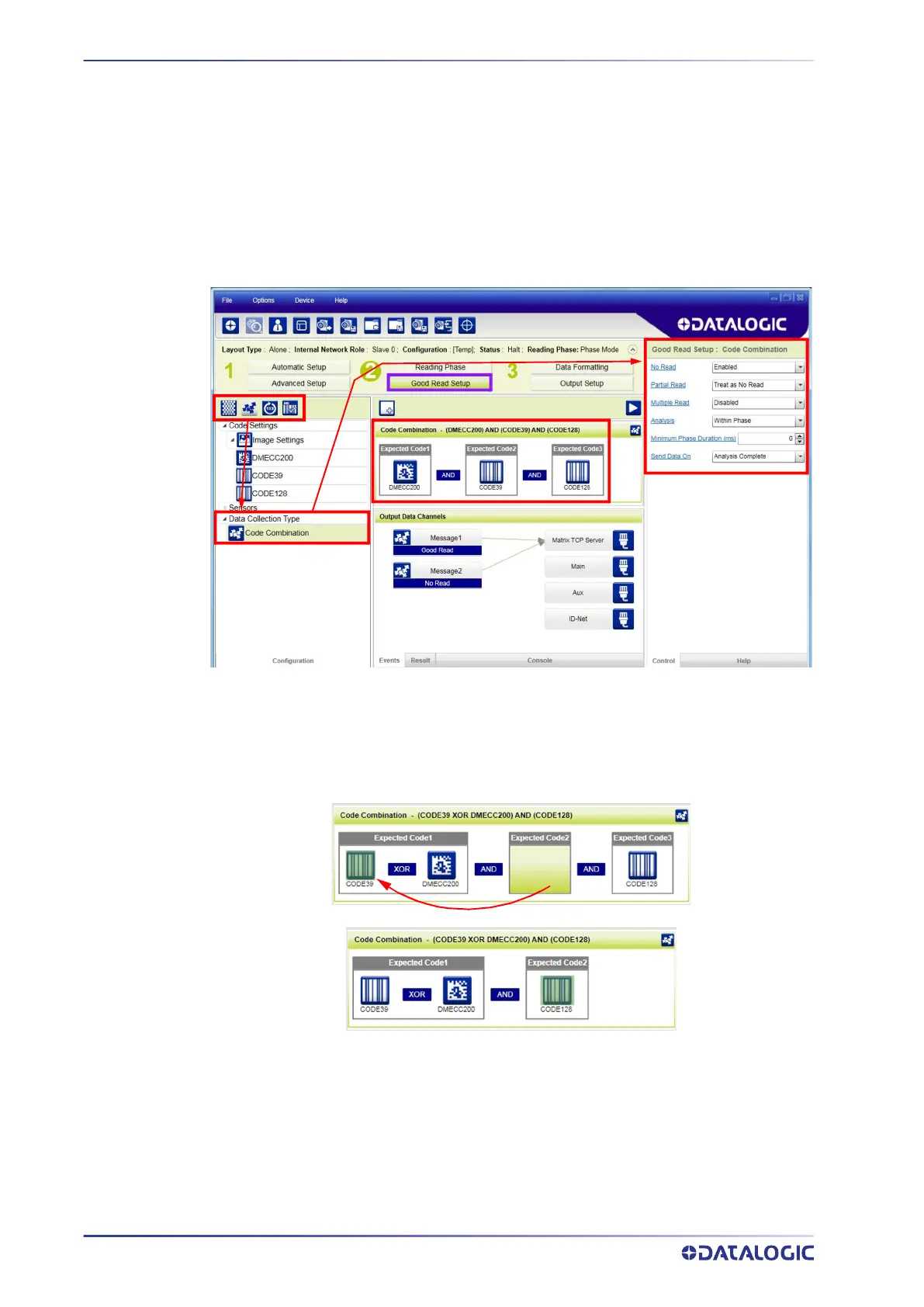

1. Select your specific data collection type from the icons over the Configuration
Parameters tree area: Code Collection, Code Combination, Presentation or Match
Code. Not all data collection types are available for all Operating Modes; for exam-
ple PackTrack Operating Mode only supports Code Combination. Incompatible
data collection types will be shown in gray and cannot be selected.
The following example shows Code Combination. By default, the Expected Codes
(when more than one code type is selected), are in logical AND, which means that
all codes are required to be decoded to produce a Good Read condition.
2. If a Good Read condition should be produced when any single code is decoded,
independent from the others, then they need to be combined in logical XOR. To do
this, drag the code icon(s) from their relative Expected Code box into the Expected
Code box of the XOR combination you wish to create. Then delete the empty box
by selecting it with the mouse (highlighted) and pressing the delete key on your
keyboard.
To Next Page
