Datalogic Matrix 320 Product Reference Guide

PRODUCT REFERENCE GUIDE 1
CHAPTER 1
RAPID CONFIGURATION
For the rapid configuration of Matrix 320 models with Liquid Lens, refer to Matrix 320
with Software Adjustable Focus (Liquid Lens), starting on page 1
For the rapid configuration of Matrix 320 C-Mount models, refer to Matrix 320 with Man-
ual Adjustable Focus (C-Mount), starting on page 5
.
MATRIX 320 WITH SOFTWARE ADJUSTABLE FOCUS (LIQUID
LENS)
Step 1A - Connect the System
To connect the system in a Stand Alone configuration, you need the hardware indicated
in Figure 5. In this layout the data is transmitted to the Host on the Ethernet interface.
Data can also be transmitted on the RS232 auxiliary interface independently from the
main interface selection.
When One Shot or Phase Mode Operating mode is used, the reader is activated by an
External Trigger (photoelectric sensor) when the object enters its reading zone.

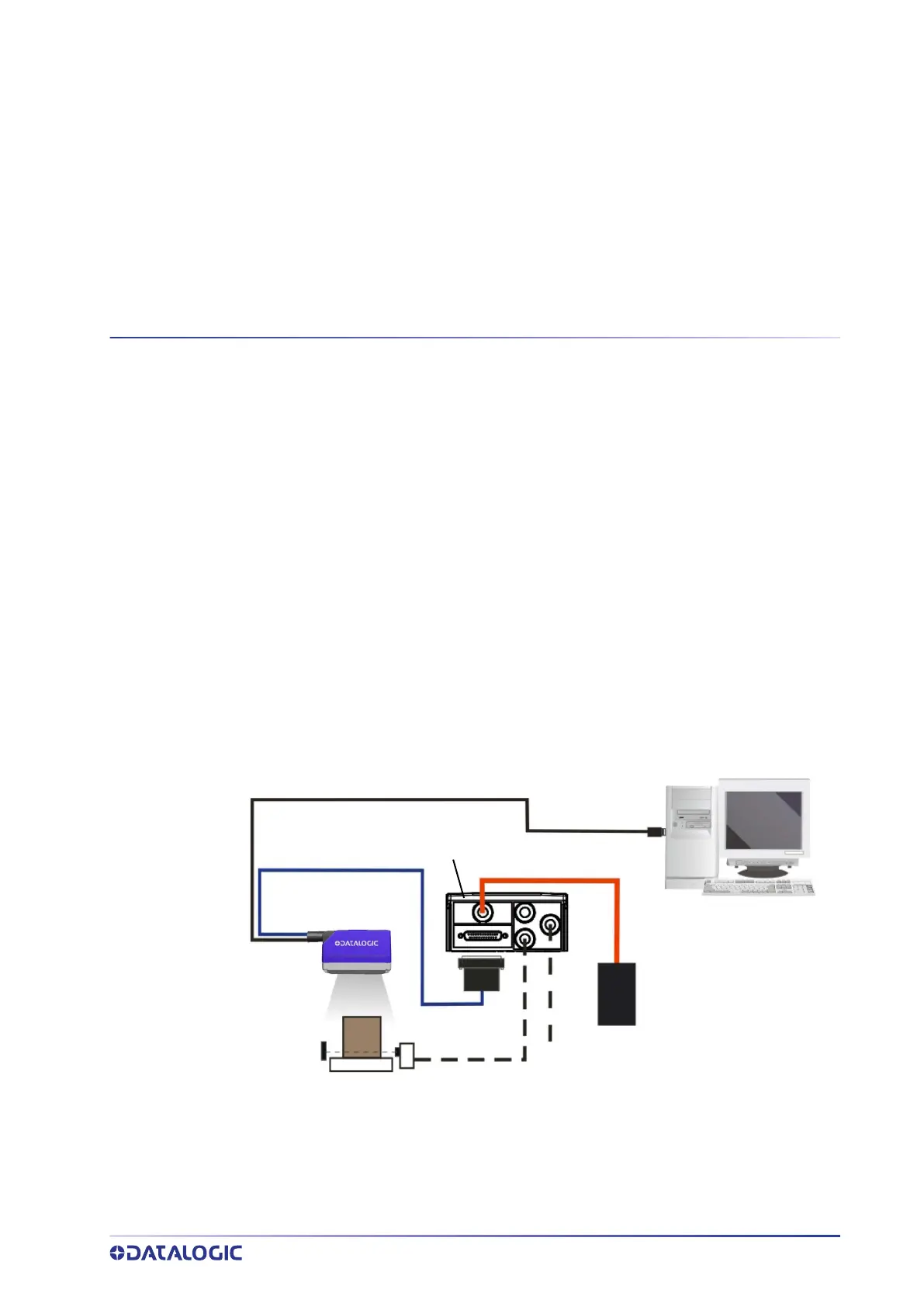

Figure 5 - Matrix 320 in Stand Alone Layout
PG6000
Host
CAB-DSxx-S
Matrix 320
CAB-ETH-X-M0x
CBX



Ethernet Interface
Auxiliary Serial Interface (RS232 - Data Monitor)
External Trigger (for One Shot or Phase Mode)



