CBX ELECTRICAL CONNECTIONS
92 MATRIX 320
External Trigger Input Connections Using Matrix 320 Power

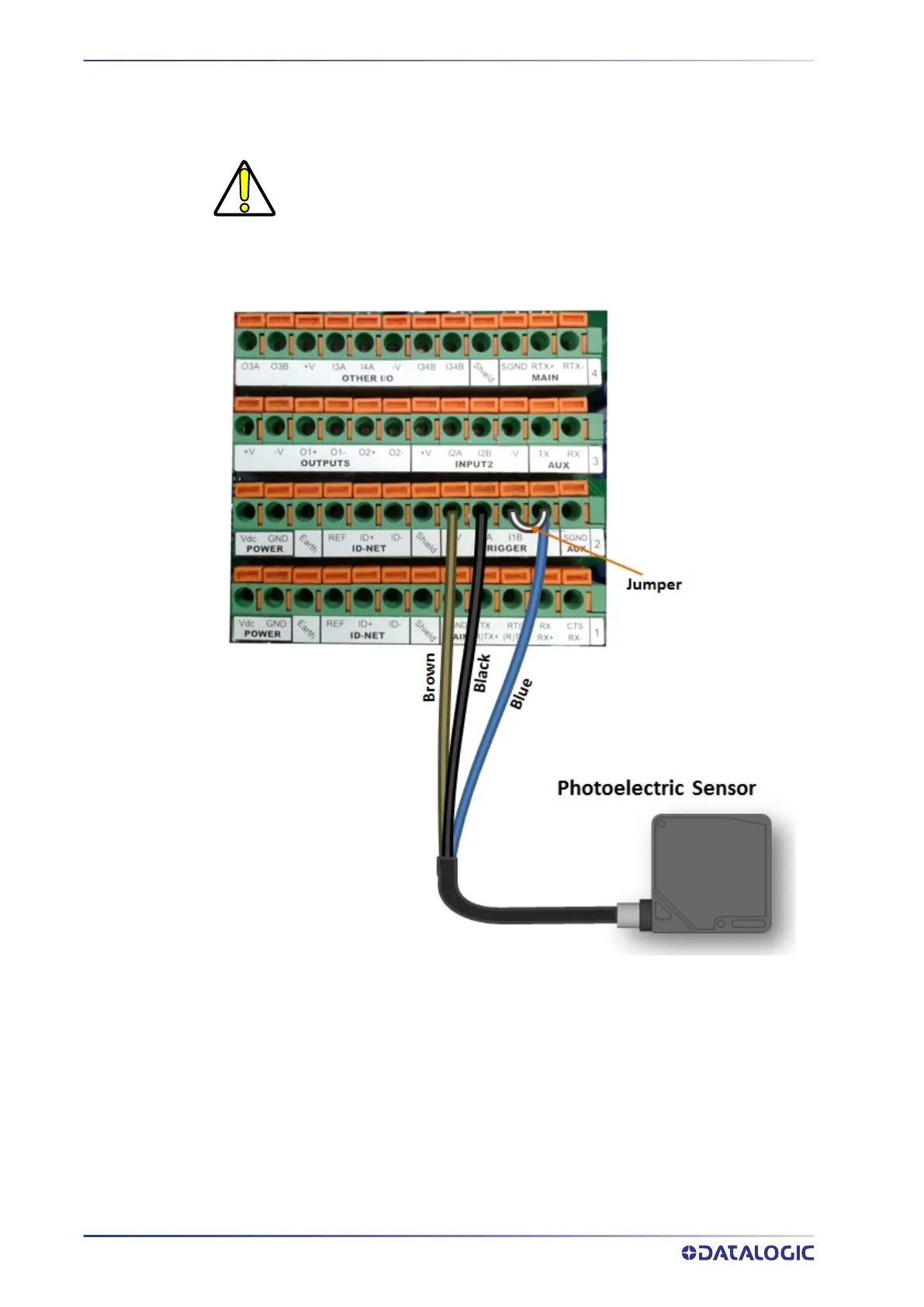

Figure 63 - PNP External Trigger Using Matrix 320 Power
CAUTION
Power from the Vdc/GND spring clamps is available directly to the Input
Device on the +V/-V spring clamps, and does not pass through the Power
Switch (ON/OFF) inside the CBX. Disconnect the power supply when
working inside the CBX.
