Datalogic Matrix 320 Product Reference Guide

OUTPUTS
PRODUCT REFERENCE GUIDE 195
The output signals are fully programmable being determined by the configured Activa-
tion/Deactivation events, Deactivation Timeout or a combination of the two. For further
details refer to the Help On Line page for the Output Setup step in DL.CODE.

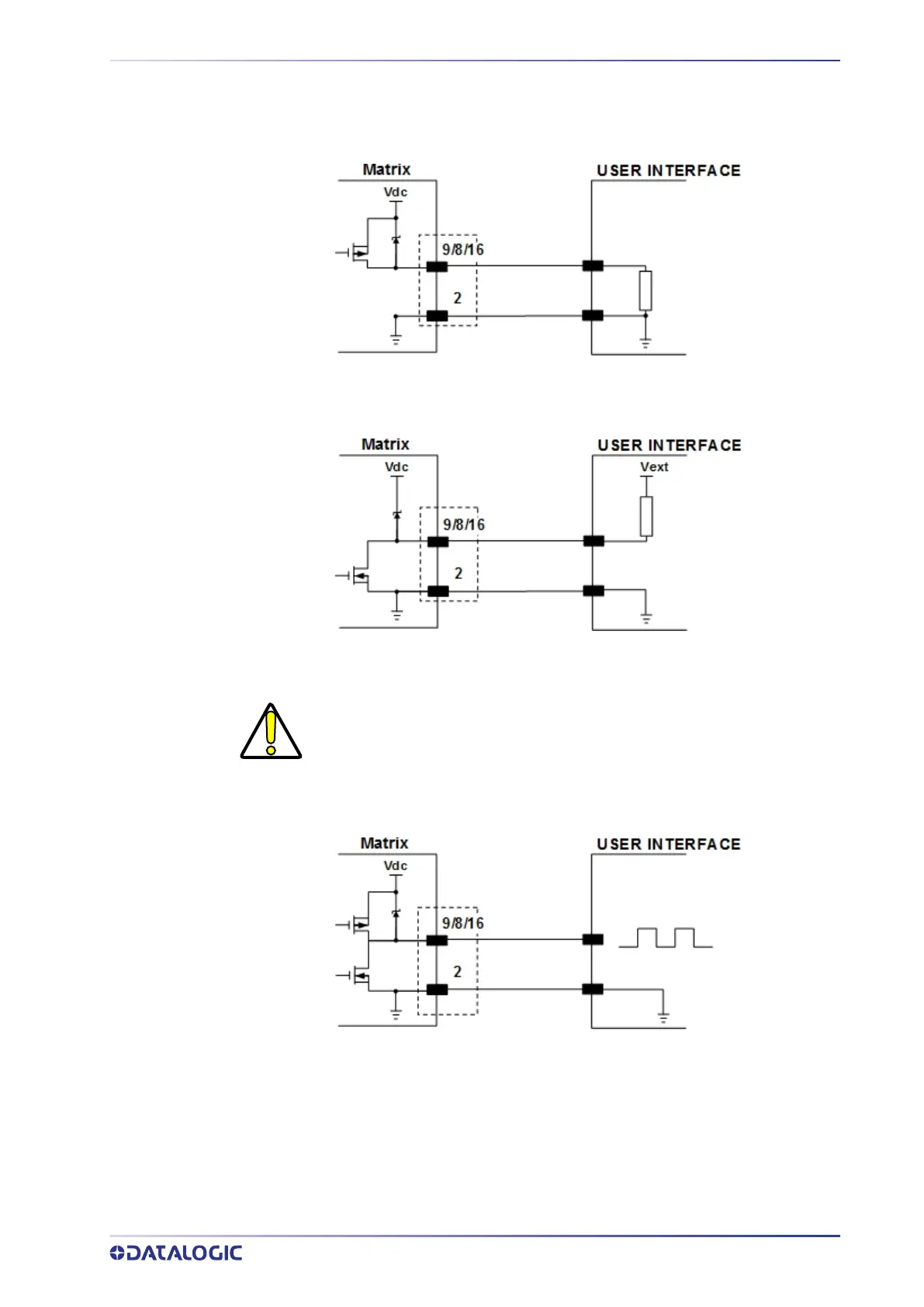

Figure 3 - PNP Output Connection
Figure 4 - NPN Output Connection
Figure 5 - Push-Pull Output Connection
CAUTION
For NPN output connections, the external interface voltage (Vext) must
not exceed the Matrix 320 power supply source voltage (Vdc) otherwise
correct output functioning cannot be guaranteed.

Datalogic Matrix 320 Specifications

General

Brand	Datalogic
Model	Matrix 320
Category	Barcode Reader
Language	English
