MECHANICAL DIMENSIONS
PRODUCT REFERENCE GUIDE
61

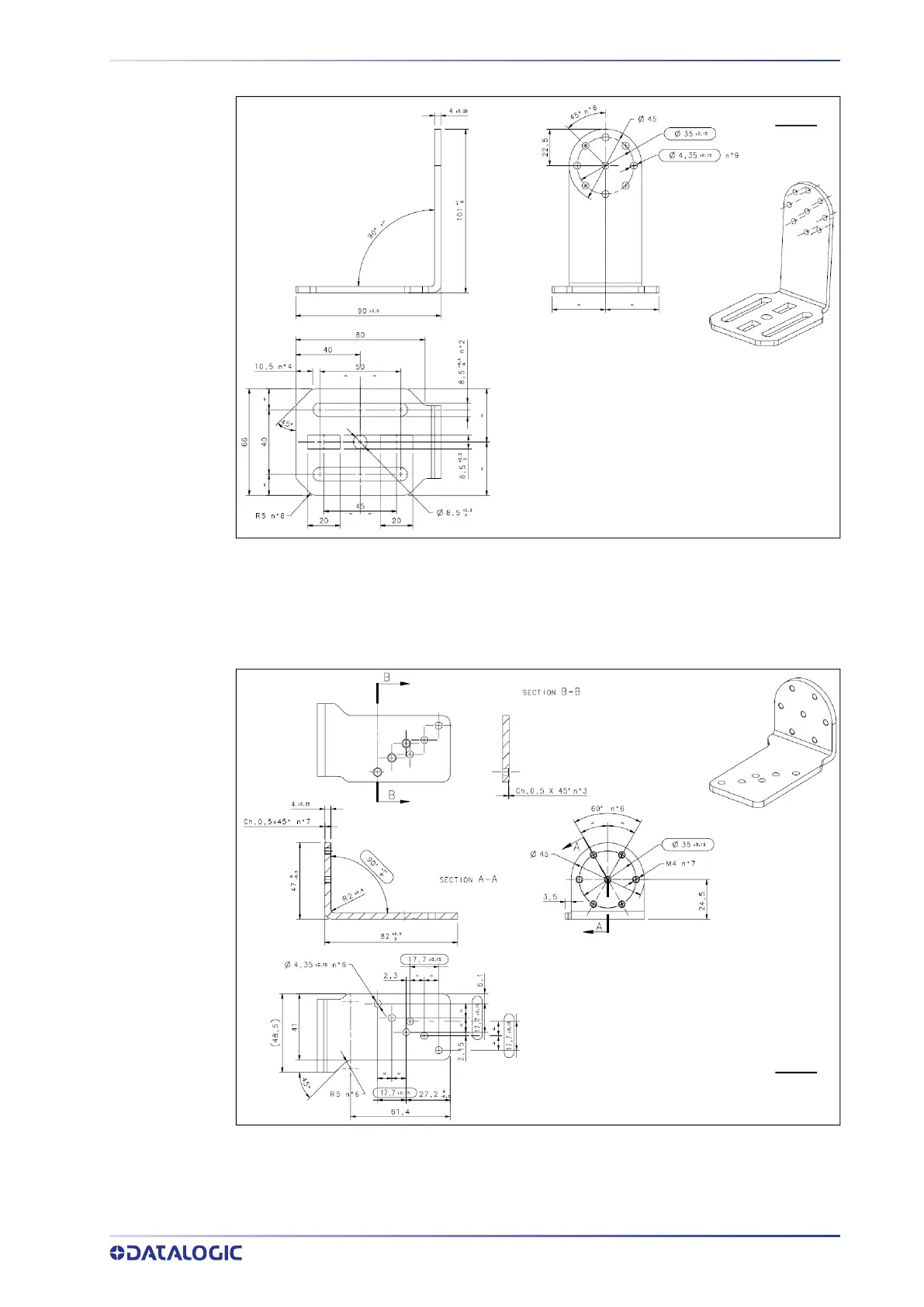

Figure 38 - Overall Dimensions: BK-32-010 Pivot Fix Bracket (1) for Matrix 320 with 36
LEDs illuminator
Figure 39 - Overall Dimensions: BK-32-010 Pivot Fix Bracket (2) for Matrix 320 with 36
LEDs illuminator
mm
[inch]
mm
[inch]
