MATRIX 320 C-MOUNT MOUNTING INSTRUCTIONS
PRODUCT REFERENCE GUIDE
69

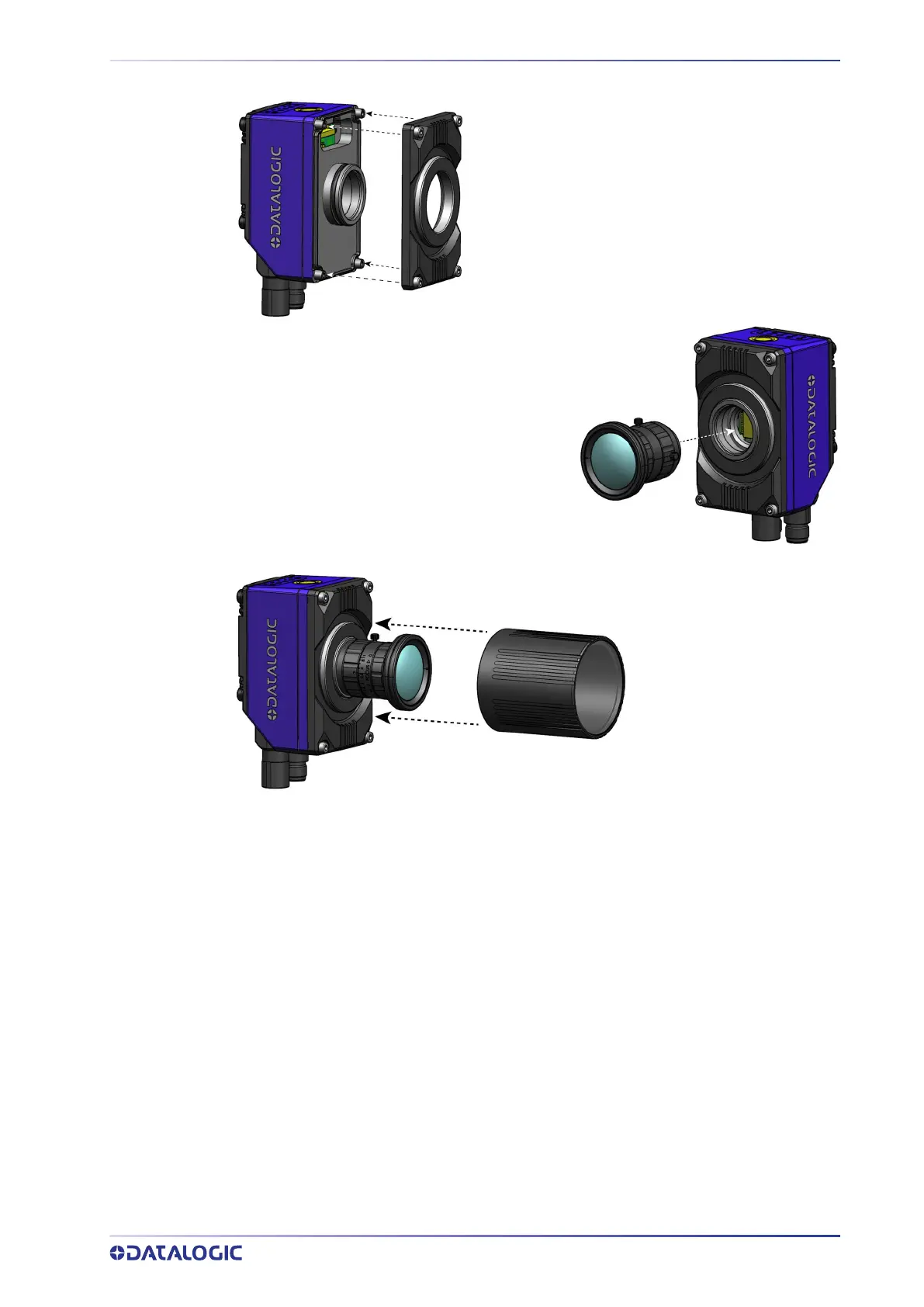

8. Mount the heat sink (see "Heat Sink mounting instructions" on page 72).
4. Mount the base cover and tighten the four
screws.
5. Mount the lens by screwing it tightly
onto the base.
6. Focus the reader. Refer to "
Step 3B -
Focus the reader" on page 5
.
7. Mount the lens cover
onto the base cover.
