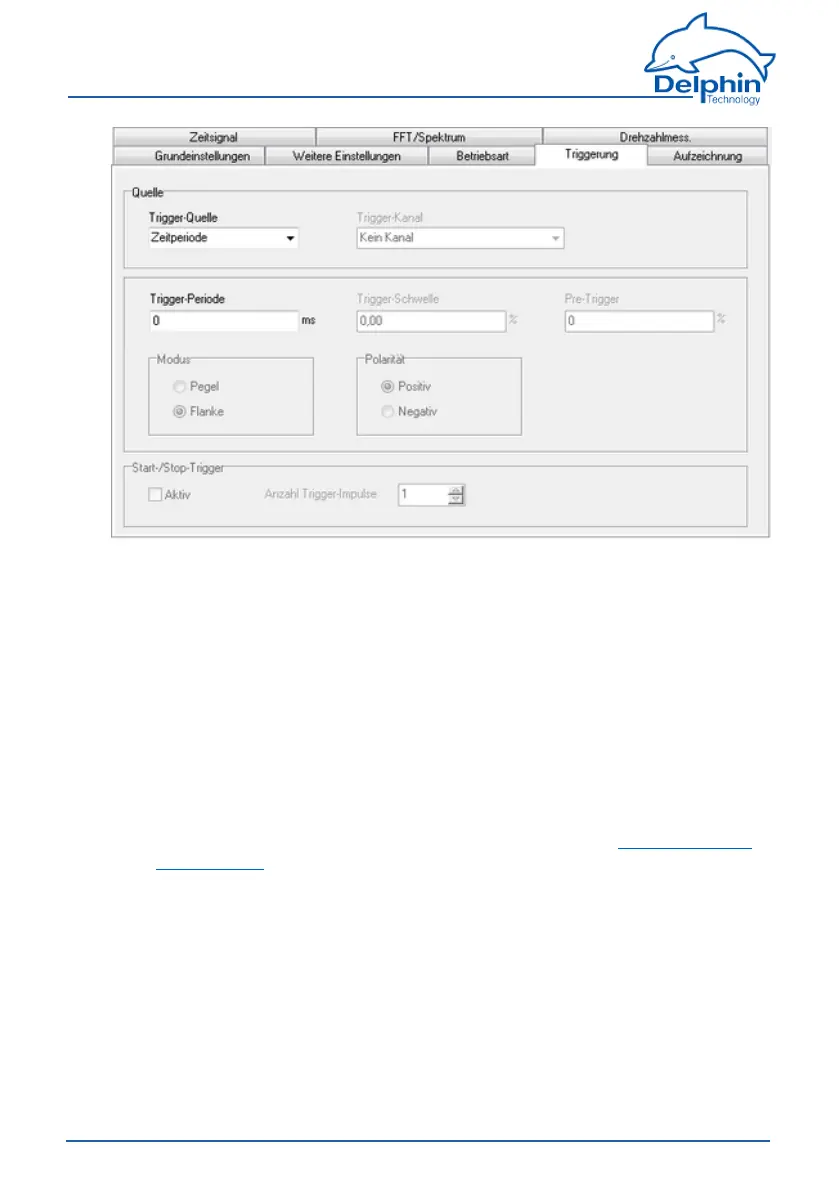

Trigger source
Atriggereventstartsrecording(i.e.signalacquisition).Selectfromfourtrigger-
sourceoptions:
l Timeperiod
TheI/Omodule'sinternaltimecounterisusedtogenerateperiodicaltrigger
events.
l Analogueinput
Thetriggersourceisoneofthemodule'seightanalogueinputs.
l Digitalinput
Thetriggersourceisoneofthemodule'sfourdigitalinputs.
l Master
ThetriggersourceisasecondAMDTI/Omodule.RefertoSynchronizinga
secondAMDT.
Trigger channel
Selectsthetriggeringchannel.ThisisalwaysoneoftheI/Omodule'sownchan-
nels.
Trigger period
Tosetatimeperiod,betweentwotriggerevents,intherange1ms…60srange.
Note:Ashorttimeperiodcanextendtheactualperiodwhenthetotaltimeis
greaterforrecording,evaluationanddatatransmission.
