In gated mode, two interfaces are available: frequency domain and time domain. Press
In Freq/In Time
(F2) to toggle between them.

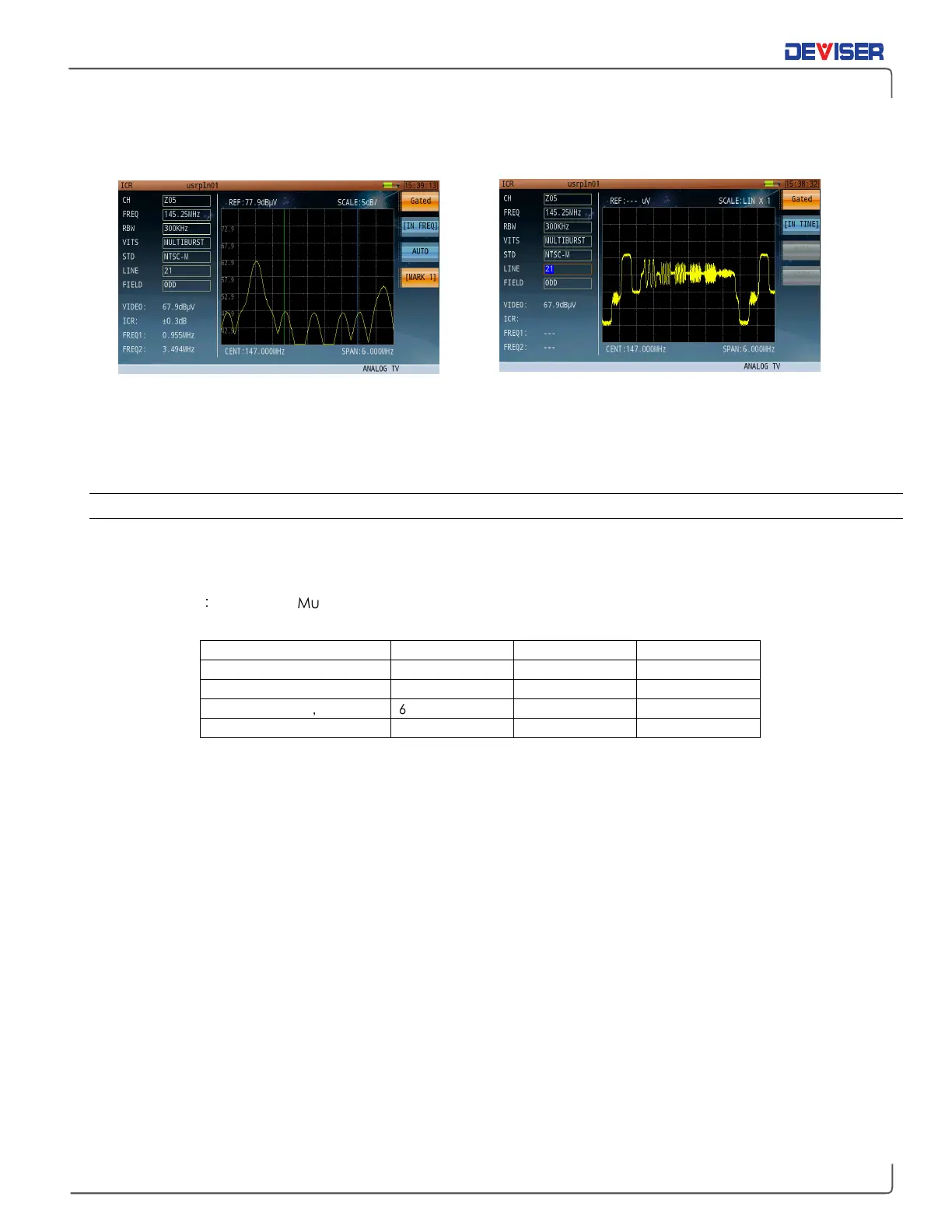

Gated ICR– Frequency Domain Waveform Gated ICR–Time Domain Waveform
In the time domain interface, the user can view the VITS signal waveform.
Note that the resolution bandwidth filter (RBW) can be changed to obtain better measurement results.
7-2.1 Settings
The ICR function allows you to change the following settings. Possible values are listed when applicable.
RBW: 100kHz, 300kHz
VITS signal type
:
Multiburst, GCR
Supported TV standards:
System and TV standard Line/Frame Field frequency Color encoding
NTSC-M 525 60Hz NTSC
PAL-M 525 60Hz NTSC
PAL-B, D, G, H, I
,
K 625 50Hz PAL
PAL-N 625 50Hz PAL
Per frame 525 lines system: Field 1 (odd field), line 1-263; Field 2 (even field), line2-262
Per frame 625 lines system: Field 1 (odd field), line 1-313; Field 2 (even field), line2- 312
