Part II: Settings and Measurements
A Note on Upstream Spectrum Analysis
The DS2831’s downstream & upstream spectrum analysis functions are almost the same, with a few
exceptions. First, for quick ease of use, US spectrum analysis SPAN presets offer several fixed modes: 4-46
MHz, 4-68 MHz, 4-88 MHz, 4-120 MHz and 4-210MHz, however, you can tune any specific SPAN setting either
with START/STOP or Center Freq/Span, max span is 206MHz. Although the RBW is fixed at 300KHz in this
mode, the sweep and trace settings are flexible to enhance the ability to troubleshoot US events.

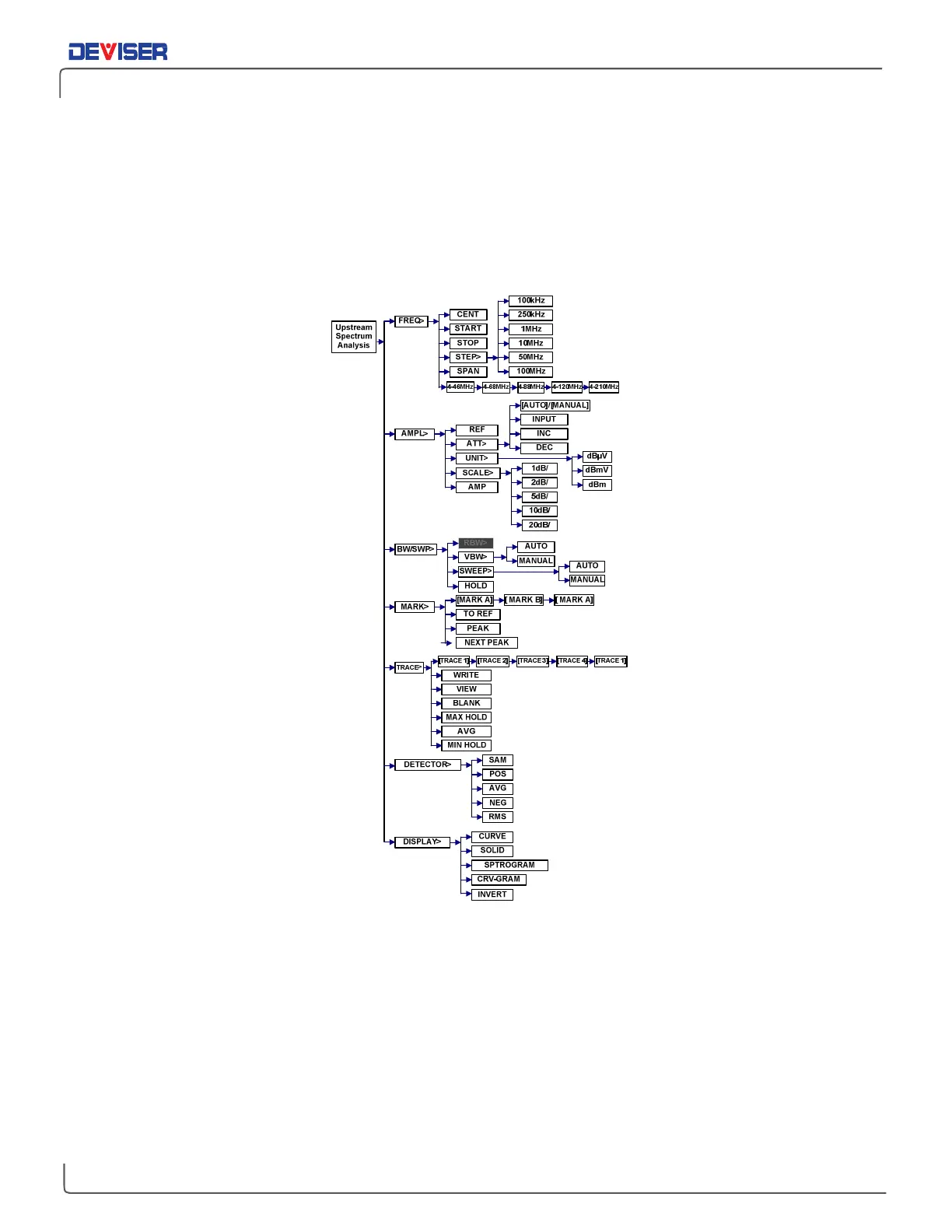

Upstream Spectrum Analysis Menu Tree
