Dräger Infinity Delta User Manual

12-4 DELTA/DELTA XL/KAPPA VF8
12 R
ESPIRATION
Patient Preparation
Proper skin preparation and careful electrode positioning are essential for reliable
results in impedance respiration monitoring. Follow the same recommendations as
those for ECG monitoring (see page 8-8).
As a rule, place electrodes so that they generate the clearest possible signals with a
minimum of artifact. Electrodes that adhere tightly and have a large conductive area
give the best results. Use a 5-lead cable set (with RL as a neutral electrode) to improve
the RESP signal. You may want to position the electrodes to span the maximum
expansion and contraction of the lungs, especially in the case of deep abdominal
breathers.
For neonates, place the RA and LA electrodes at nipple level, midaxillary line.
Position the LL electrode below the diaphragm and umbilicus. Avoid the liver area

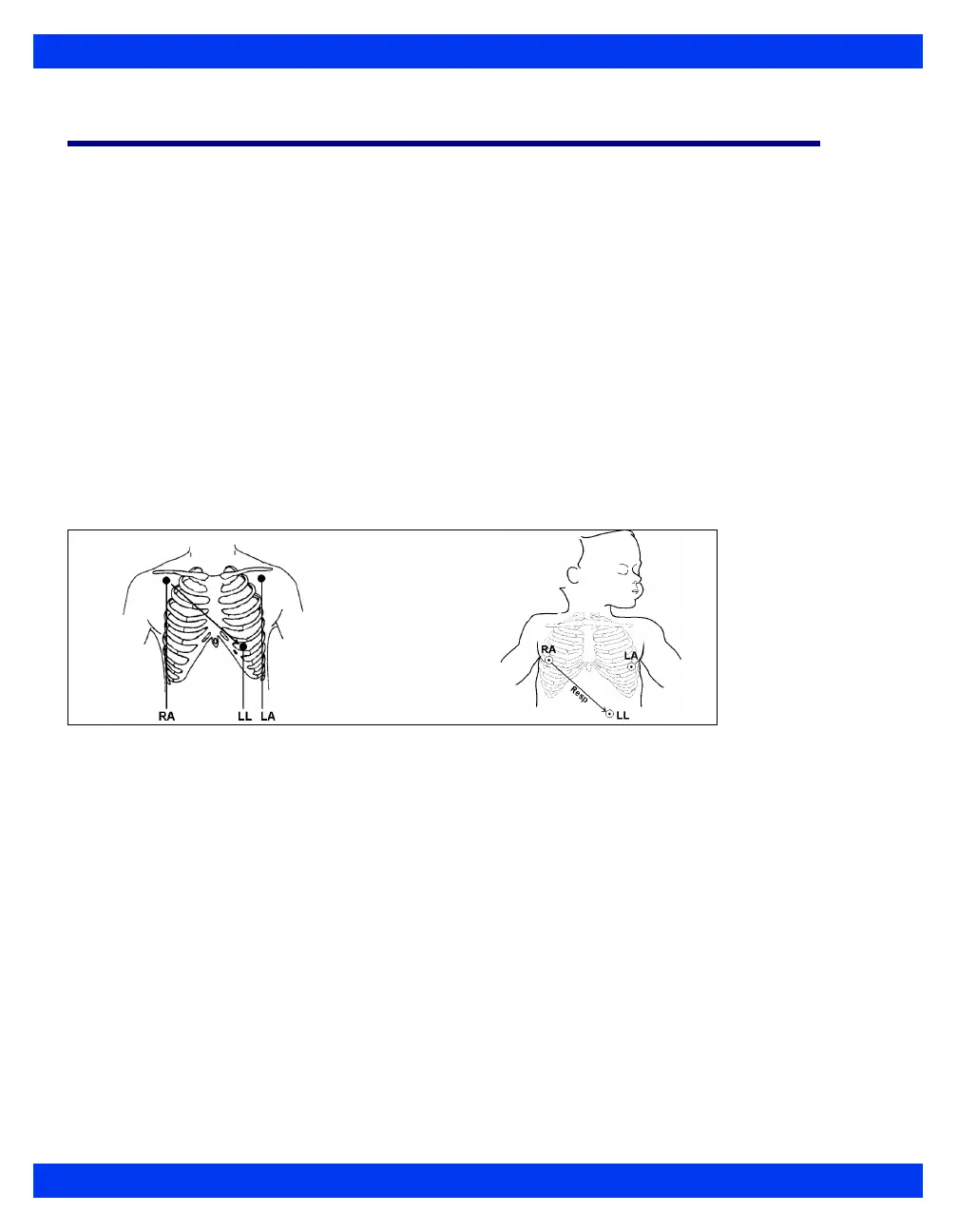

and ventricles of the heart to prevent artifacts caused by pulsatory blood flow. The
following figure illustrates the recommended placement of ECG leads for impedance
respiration on an adult and a neonate:
Respiration Lead Place-
ment
Adult
Neonate

Dräger Infinity Delta Specifications

General

Display Size	10.4 inch
Resolution	800 x 600 pixels
Battery Type	Lithium-ion
Parameters Monitored	ECG, SpO2, NIBP, Invasive Blood Pressure, Temperature, CO2, Cardiac Output
ECG	Yes
SpO2	Yes
NIBP	Yes
Invasive Blood Pressure	Yes
Temperature	Yes
CO2	Yes
Cardiac Output	Yes
Power Supply	100 to 240 V AC, 50/60 Hz
Connectivity	WLAN
Operating Temperature	0 to 40 °C
Storage Temperature	-20 to 60 °C
Humidity	15 to 95 % relative humidity, non-condensing
Alarms	Audible and visual alarms
