Dräger Infinity Delta User Manual

26-16 DELTA/DELTA XL/KAPPA VF8
26 P
ULSE CONTOUR CARDIAC OUTPUT (PICCO) MONITORING
Parameter boxes for Continuous
Pulse Contour Analysis parameters
will display PCCI, PCCO, p-SVI,
SVV, p-SVR, p-SVRI and
dPmax.Parameter boxes for
Continuous Pulse Contour Analysis
parameters will display PCCI,
PCCO, p-SVI, SVV, p-SVR and p-

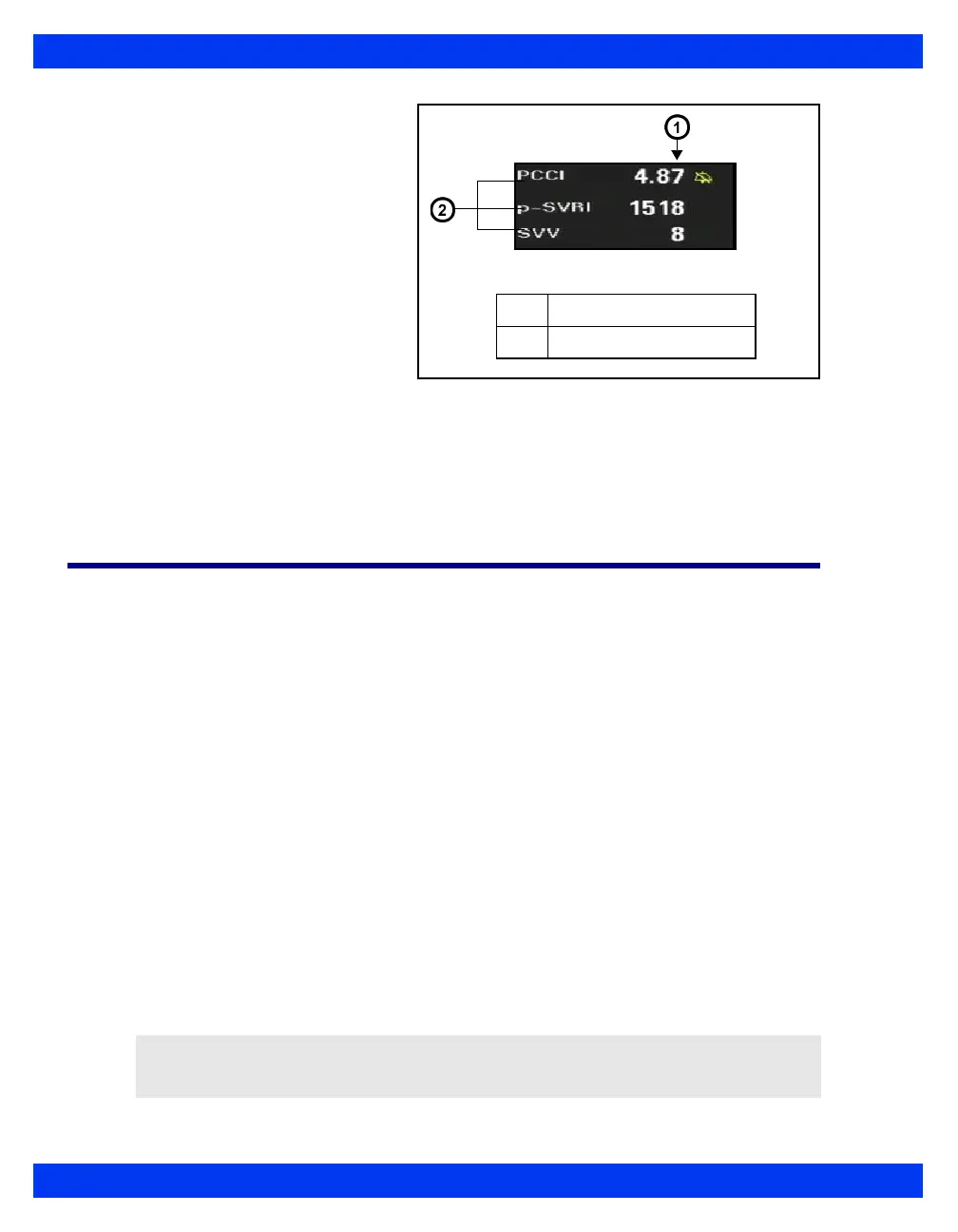

SVRI. A typical Continuous Pulse
Contour Analysis parameter box is
shown in the illustration to the right:
PiCCO Parameter Setup
To access the setup menu for the PiCCO pod
 Click on the PiCCO parameter box on the main screen.
or
1. Press the
Menu fixed key to display the Main menu.
2. Click on
Patient Setup.
3. Click on
Parameters.
4. Click on
PiCCO-PC.
5. Click on
Parameter 1
6. Scroll to the PiCCO pulse contour parameter you want to assign as
Parameter 1 (PCCO, PCCI, p-SV, p-SVI, SVV, p-SVR, p-SVRI, PPV, or
dPmax, PCCO, PCCI, p-SV, p-SVI, SVV, p-SVR, p-SVRI, or PPV) and
click.
7. Repeat the previous two steps for
Parameter 2 and Parameter 3.
NOTE: Values for p-BT and p-IT are displayed in the Pulse Contour and Thermodilution menu
selections that appear after you select the appropriate parameter box. These references are shown
below the p-CO selection (see page 26-20).
1
Pulse contour values
2
Parameter labels

Dräger Infinity Delta Specifications

General

Display Size	10.4 inch
Resolution	800 x 600 pixels
Battery Type	Lithium-ion
Parameters Monitored	ECG, SpO2, NIBP, Invasive Blood Pressure, Temperature, CO2, Cardiac Output
ECG	Yes
SpO2	Yes
NIBP	Yes
Invasive Blood Pressure	Yes
Temperature	Yes
CO2	Yes
Cardiac Output	Yes
Power Supply	100 to 240 V AC, 50/60 Hz
Connectivity	WLAN
Operating Temperature	0 to 40 °C
Storage Temperature	-20 to 60 °C
Humidity	15 to 95 % relative humidity, non-condensing
Alarms	Audible and visual alarms
