Dräger Infinity Delta User Manual

24-4 DELTA/DELTA XL/KAPPA VF8
24 N
EUROMUSCULAR TRANSMISSION (NMT) MONITORING

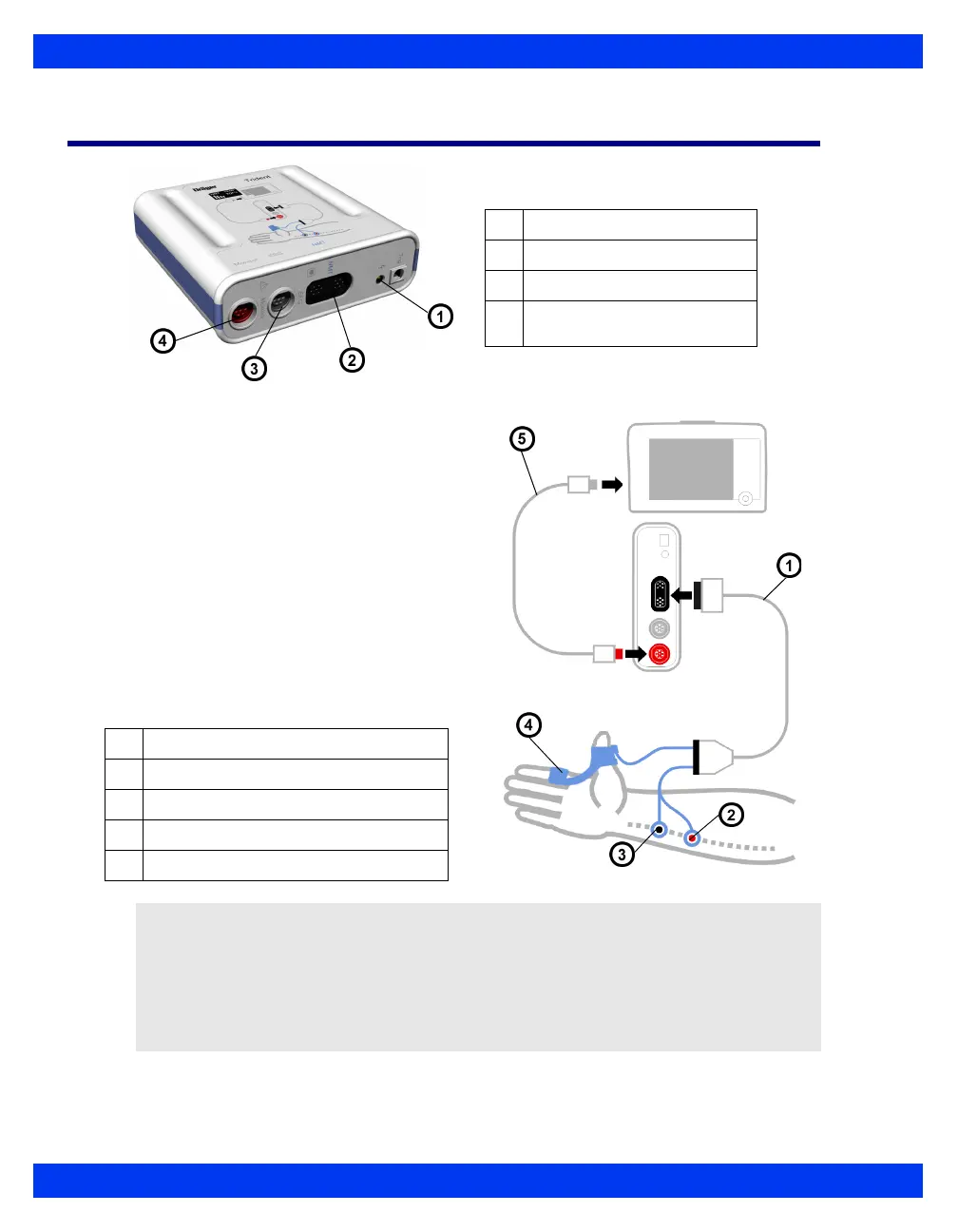

Connections
1. Attach the distal (black) and proximal
(red) electrodes above the Ulnar
nerve as shown (3 to 5 cm. apart).
2. Connect the Trident pod with the
PodCom cable to the monitor’s
PodCom connector.
3. Apply the NMT hand adaptor.
4. Connect electrode and sensor cables
to the NMT cable (if applicable).
5. Connect the NMT cable to the
Trident pod (NMT connector).
1 NMT intermediate cable
2 Red (positive) electrode grabber
3 Black (negative) electrode grabber
4 NMT hand adapter
5 PodCom cable
NOTE:
 Check that the thumb can move unconstrained before applying NMT sensor.
 An EEG or BisX pod can connect to the monitor directly or via the NMT pod's
EEG connector. See chapter 11 for details about EEG monitoring and chapter
25 for details about BISx monitoring.
 Use the provided hand adaptor straps to secure the hand adaptor.
1 Stimulus Indicator (LED)
2 NMT Cable connection port
3 To EEG pod or BISx pod
4 PodCom connection (to
monitor)

Dräger Infinity Delta Specifications

General

Display Size	10.4 inch
Resolution	800 x 600 pixels
Battery Type	Lithium-ion
Parameters Monitored	ECG, SpO2, NIBP, Invasive Blood Pressure, Temperature, CO2, Cardiac Output
ECG	Yes
SpO2	Yes
NIBP	Yes
Invasive Blood Pressure	Yes
Temperature	Yes
CO2	Yes
Cardiac Output	Yes
Power Supply	100 to 240 V AC, 50/60 Hz
Connectivity	WLAN
Operating Temperature	0 to 40 °C
Storage Temperature	-20 to 60 °C
Humidity	15 to 95 % relative humidity, non-condensing
Alarms	Audible and visual alarms
