RADIOMETER MICROGAS 7650 MONITOR
VF8 DELTA/DELTA XL/KAPPA 28-19

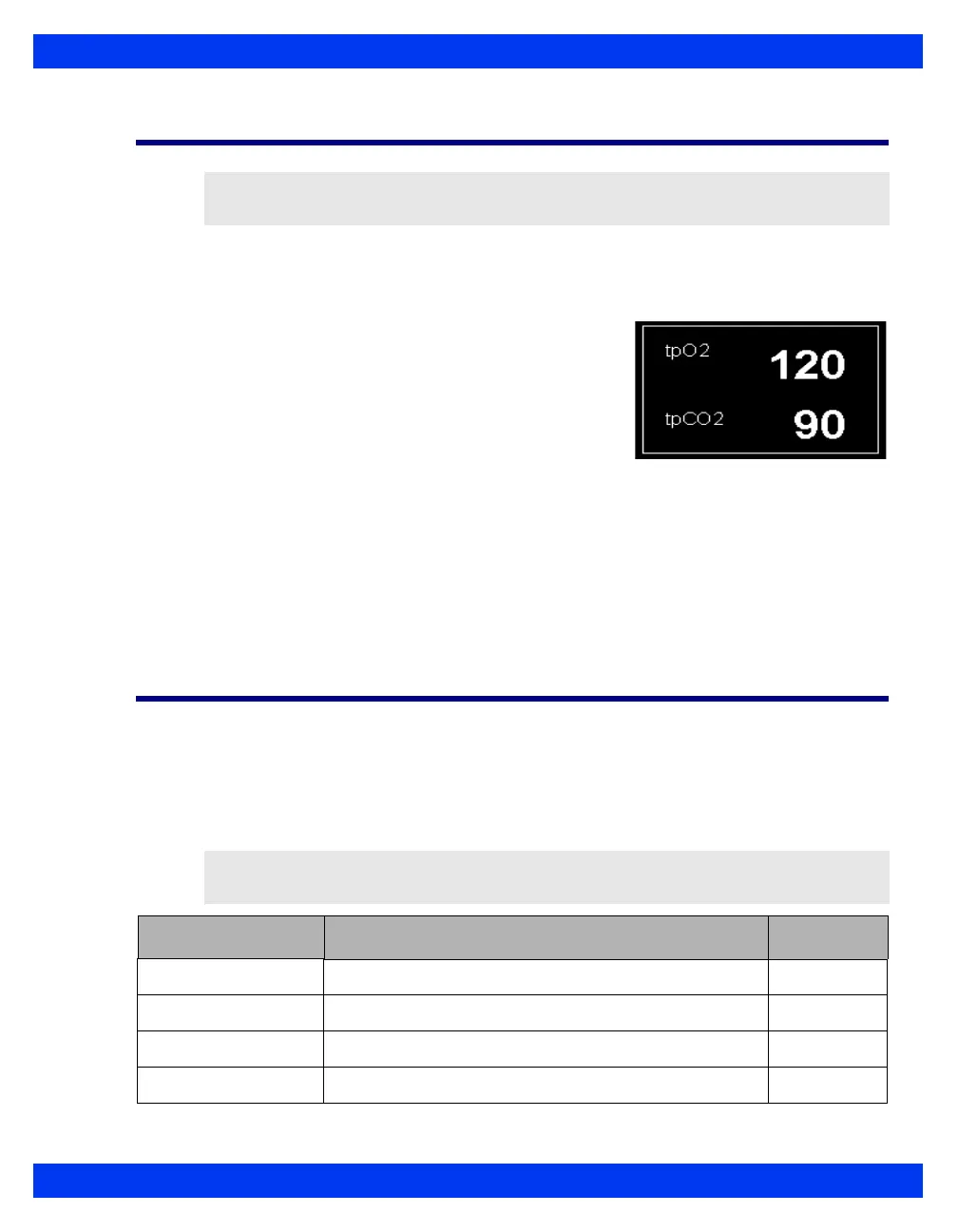

Radiometer MicroGas 7650 Monitor
The Radiometer MicroGas 7650 monitor measures tpO
2
and tpCO
2
data. The data
from the MicroGas 7650 monitor is acquired through an MIB interface. This data is
displayed in a non-configurable tpO2 and tpCO2 parameter box.
A waveform channel is not displayed for the
MicroGas 7650 monitor's data. There are also no site
timers and no alarms.
The tpO
2
and tpCO
2
entries in the Alarm Limits
menu disappear when the MicroGas 7650 monitor is
connected. These entries do not reappear until this
MIB device is removed and a tpO
2
and tpCO
2
pod is
reconnected.
If you click the tpO
2
and tpCO
2
parameter box, the setup menu displays with the text
“No user selections.”
MIB tpO
2
and tpCO
2
trends appear in the trend/graph table similar to the tpO
2
and
tpCO
2
pod parameters (see page 6-3).
Aspect A-2000 BIS

Monitor
The Bispectral Index (BIS) is a continuously processed EEG parameter that measures
the state of the brain during the administration of anesthetics and sedatives. The
Aspect Medical BIS monitor A-2000 is connected to the bedside monitor via an MIB
interface. BIS and its associated parameters are trended and available for display on
the bedside monitor.
NOTE: The Radiometer MicroGas 7650 monitor is only supported on MIB II
hardware.
NOTE: For information about the BIS parameters, see documentation provided with
the Aspect A-2000 BIS Monitor.
Label Parameters Supported Units
BIS Bispectral Index -
SQI Signal Quality Index %
EMG Electromyography Power (70-110 Hz) dB
BSR Burst Suppression Ratio %

Dräger Infinity Delta Specifications

General

Display Size	10.4 inch
Resolution	800 x 600 pixels
Battery Type	Lithium-ion
Parameters Monitored	ECG, SpO2, NIBP, Invasive Blood Pressure, Temperature, CO2, Cardiac Output
ECG	Yes
SpO2	Yes
NIBP	Yes
Invasive Blood Pressure	Yes
Temperature	Yes
CO2	Yes
Cardiac Output	Yes
Power Supply	100 to 240 V AC, 50/60 Hz
Connectivity	WLAN
Operating Temperature	0 to 40 °C
Storage Temperature	-20 to 60 °C
Humidity	15 to 95 % relative humidity, non-condensing
Alarms	Audible and visual alarms
