Display Features
You can configure the monitor to display waveforms, ventilation loops, and numerical
values calculated by the etCO
2

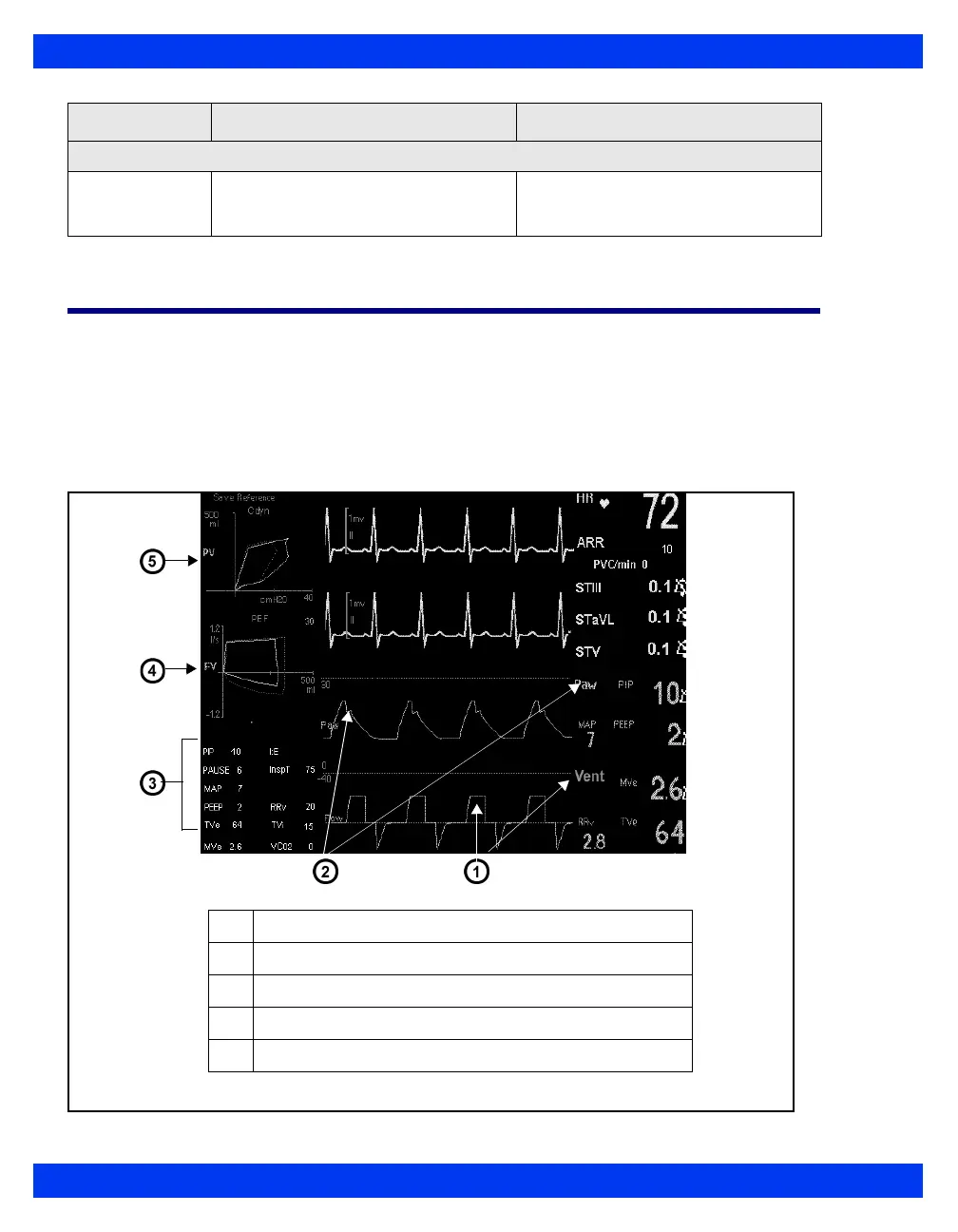

/Respiratory Mechanics pod. The following illustration
shows a typical main screen layout when the etCO
2
/Respiratory Mechanics pod is
connected. The number and screen position of the parameter boxes depends on your
configuration of the Main Screen menu. See page 2-5 for instructions on configuring
the main screen.
Split Screen Configures the main screen to display
ventilator or trend data and standard
waveforms and parameters.
OFF, 60 Min Trends, 10 Min Trends,
Ventilation
Function Description Settings
VENT Setup Menu
1
Flow/volume (Vent) waveform and parameter box
2
Airway pressure (Paw) waveform and parameter box
3
Ventilation parameters
4
Flow/volume loop
5
Pressure/volume loop

Dräger Infinity Delta Specifications

General

Display Size	10.4 inch
Resolution	800 x 600 pixels
Battery Type	Lithium-ion
Parameters Monitored	ECG, SpO2, NIBP, Invasive Blood Pressure, Temperature, CO2, Cardiac Output
ECG	Yes
SpO2	Yes
NIBP	Yes
Invasive Blood Pressure	Yes
Temperature	Yes
CO2	Yes
Cardiac Output	Yes
Power Supply	100 to 240 V AC, 50/60 Hz
Connectivity	WLAN
Operating Temperature	0 to 40 °C
Storage Temperature	-20 to 60 °C
Humidity	15 to 95 % relative humidity, non-condensing
Alarms	Audible and visual alarms
