Dräger Infinity Delta - Monitor with Nellcor Logo - Hardware Setup

HARDWARE S ETUP
VF8 DELTA/DELTA XL/KAPPA 17-5

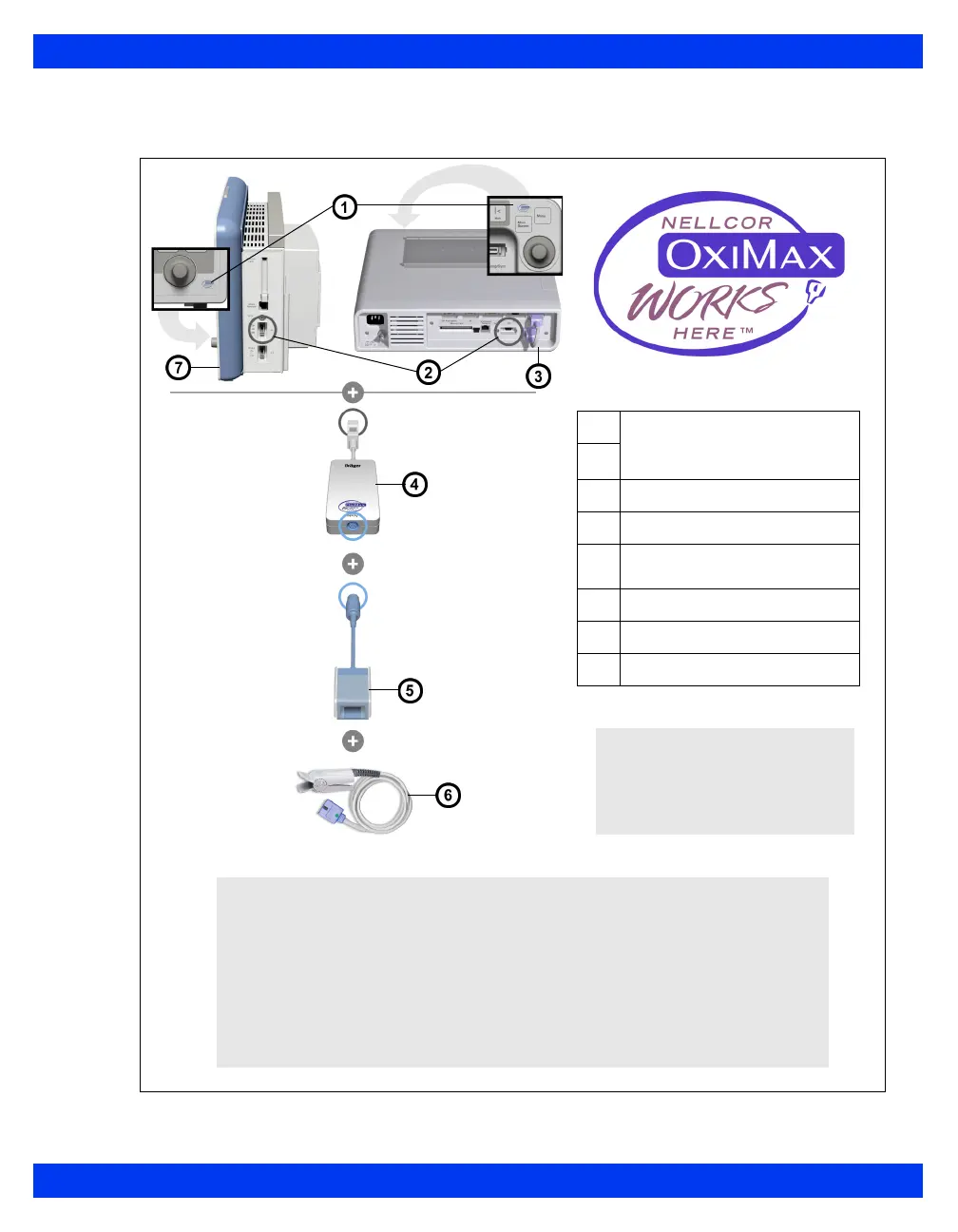

Monitor with Nellcor Logo - Hardware Setup
NOTE:
 The Nellcor Oximax logo indicates that the monitor is configured
with Nellcor Oximax functionality only. Connection of SpO
2
via a
MultiMed cable, MultiMed 12, or a MicrO2+ Pulse Oximeter is not
supported.
 Purchase of this instrument confers no express or implied license
under any Nellcor patent to use this instrument with any oximetry
sensor that is not manufactured or licensed by Nellcor.
WARNING: Only use
Nellcor intermediate
cables and sensors
recommended by
Dräger.
1
Nellcor Oximax logo means
Nellcor Oximax compatibility
is enabled
2
X8 connector
3
Infinity Kappa
4
Nellcor Oximax pod with X8
connection cable to monitor
5
Nellcor intermediate cable
6
Nellcor SpO2 cable
7
Infinity Delta/Delta XL
