Setup
Operating Instructions 867 - 04.0 - 03/2018 115
2. Either drill through the hole for 1 large hole (1) or through the
holes for 2 small holes (2).
3. Screw the sewing lamp holder through the hole on the arm
cover.
4. Assemble the sewing lamp on the bracket.
5. Lay the connecting cable in the machine arm and feed it
through the hole in the tabletop ( p. 108).
6. Stick the sticker with safety instructions onto the front of the
control.
Assembling the sewing lamp transformer

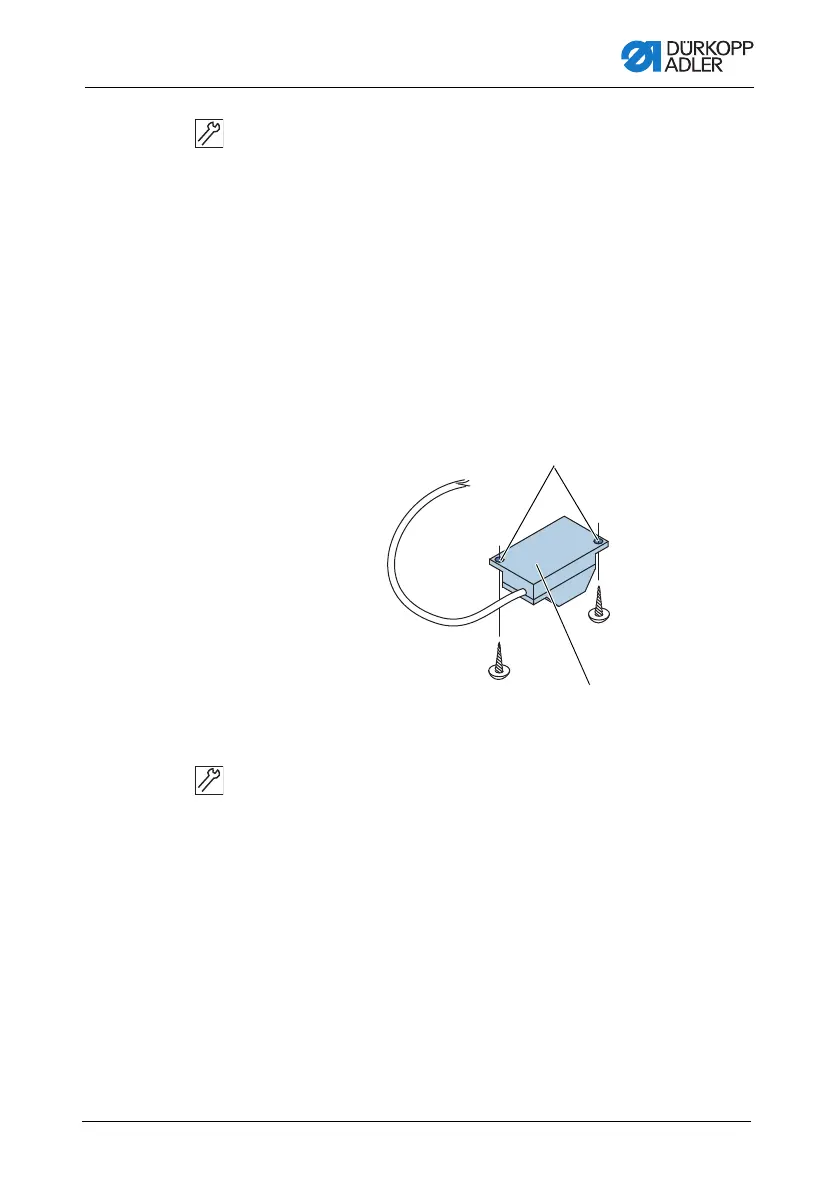

Fig. 67: Assembling the sewing lamp transformer
To assemble the sewing lamp transformer::
1. Screw the sewing lamp transformer (1) in place at the
pre-drilled holes (2) under the tabletop.
2. Assemble the connecting cable under the tabletop using cable
ties.
3. Establish the plug connection to the supply line for the sewing
lamp.
(1) - Sewing lamp transformer (2) - Pre-drilled hole
