Setup
116 Operating Instructions 867 - 04.0 - 03/2018
Connecting the sewing lamp transformer to the DAC control

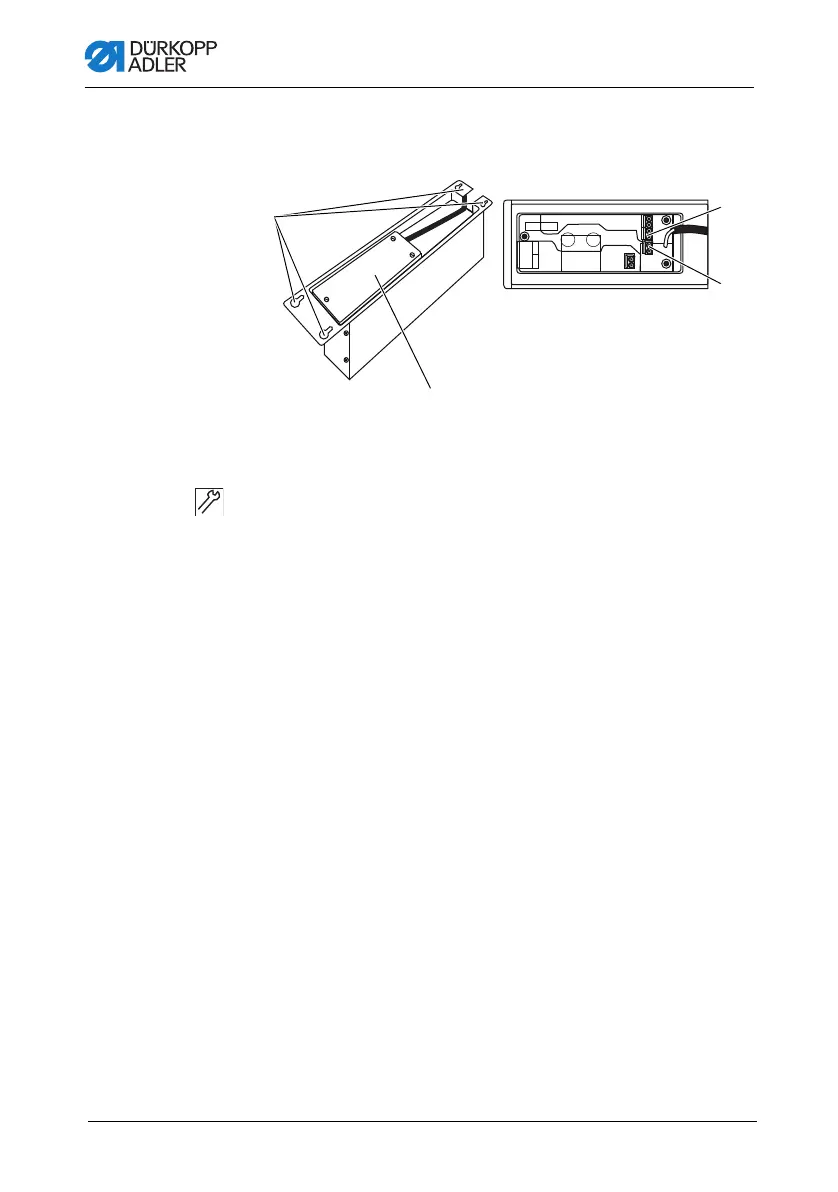

Fig. 68: Connecting the sewing lamp transformer to the DAC control
To connect the sewing lamp transformer to the DAC control:
1. Loosen the screw holder (1) for the control until the control
can be removed.
2. Remove the control.
3. Loosen the adapter cover screws (2).
4. Connect the supply line:
• For sewing lamps to be additionally assembled to the X3
connection (4)
• For integrated LED sewing lamps on the 24V/X5
connection (3)
(1) - Screw holder
(2) - Adapter cover screw
(3) - 24V/X5 connection
(4) - X3 connection
①
③
②
④
