Setup
Operating Instructions 867 - 04.0 - 03/2018 117
Connecting the sewing lamp transformer to the Efka control

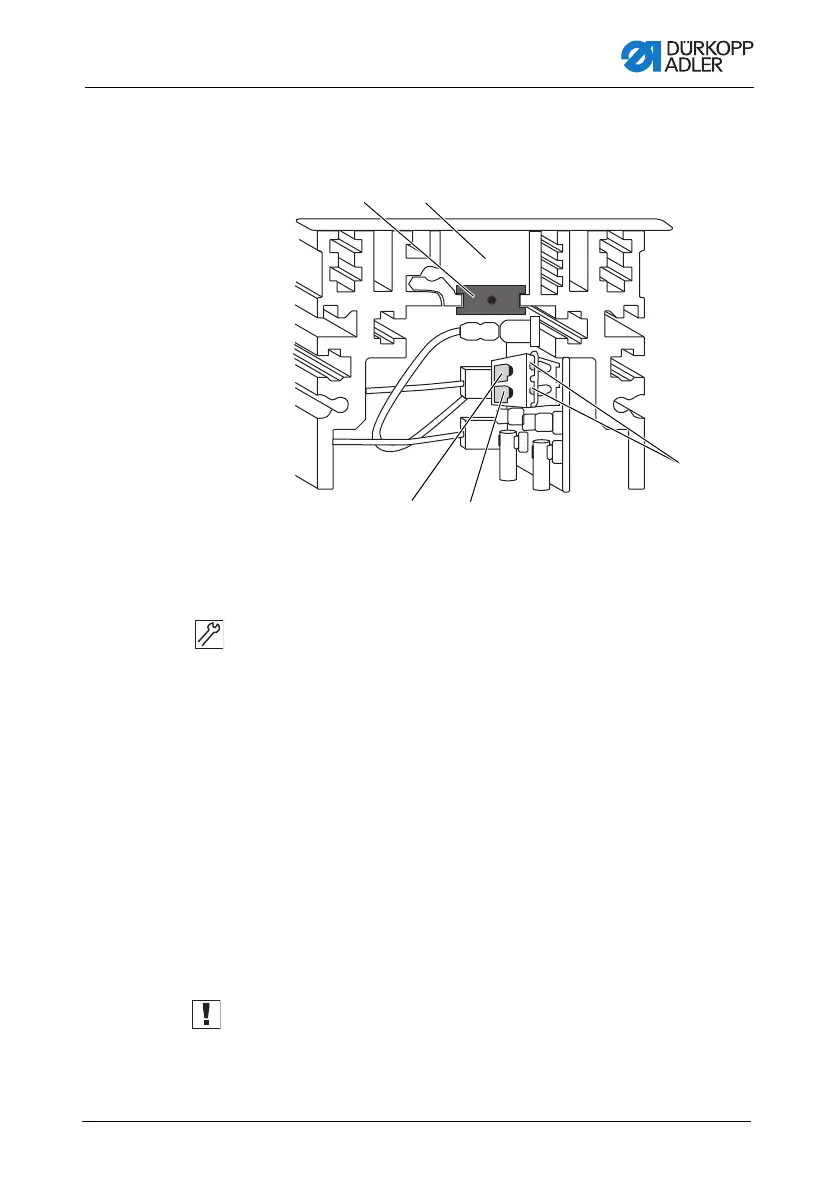

Fig. 69: Connecting the sewing lamp transformer to the Efka control
To connect the sewing lamp transformer to the Efka control:
1. Remove all 4 screws from the control front panel.
2. Remove the front panel.
3. Feed the cable from the rear through the cable duct (1) into
the control.
4. Remove the black rubber guide (2).
5. Pierce the round opening of the rubber guide with a
screwdriver.
6. Feed the sewing lamp transformer cable through the resulting
slot in the rubber guide.
7. Insert the black rubber guide (2) again.
8. Press a narrow screwdriver into the terminal openings (5) to
open terminals (3) and (4).
Important: Do not press so hard that the board is pressed in.
(1) - Cable duct
(2) - Rubber guide
(3) - Upper terminal
(4) - Lower terminal
(5) - Terminal opening
