Operator's Guide 25

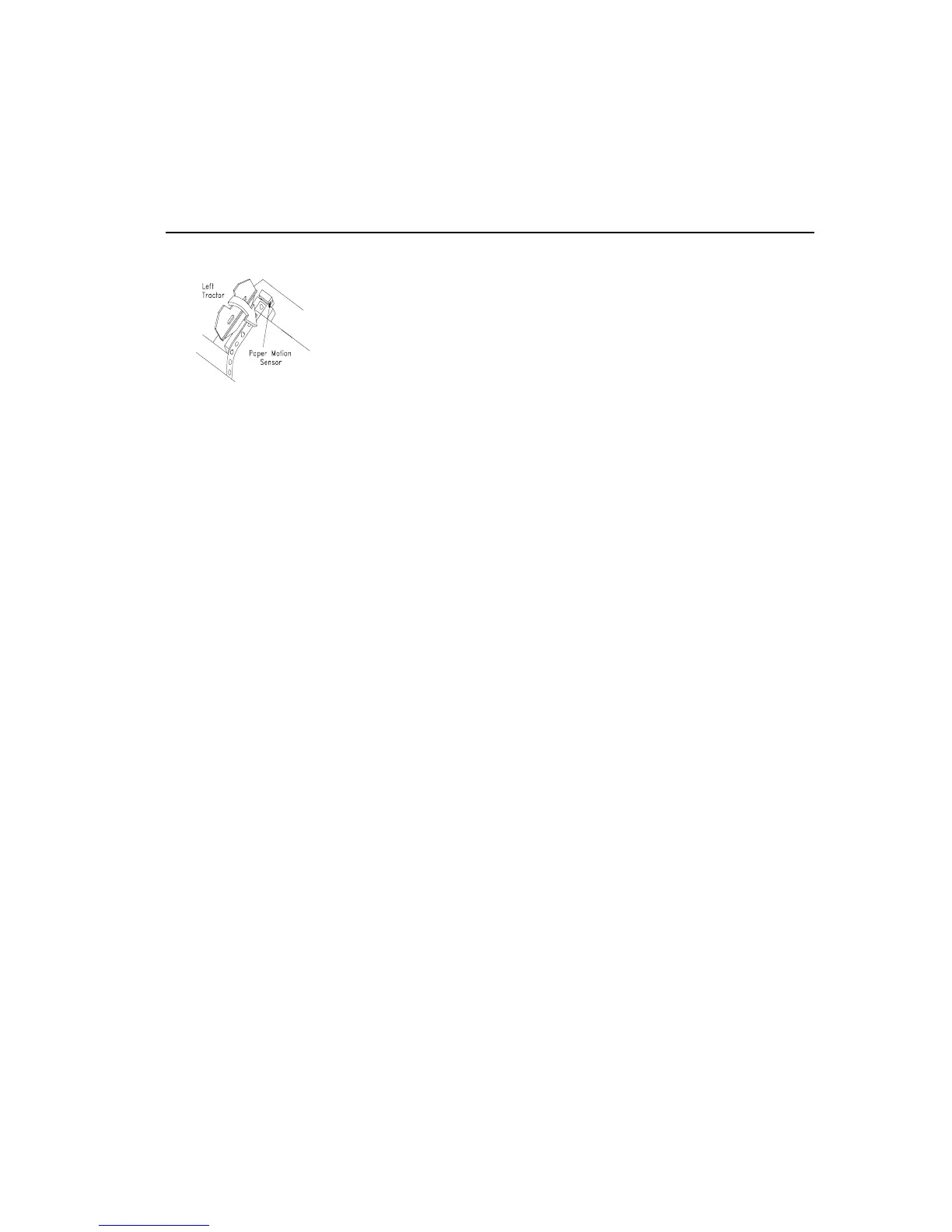

Left Tractor
JB0-L1
6. Align paper on tractor sprockets. Make sure
that the paper is straight.
7. Adjust the position of the right tractor so that
the paper is neither stressed nor buckled.
The sprocket pins should sit comfortably in
the middle of the paper's sprocket holes.
Paper holes should not be distorted.
8. Close retainers.
9. Make sure both tractors are locked in position.
10.Adjust the printhead gap:
•
If you reloaded the printer with the same type of paper, simply
return the printhead gap adjustment lever to its previous position.
•
If you reloaded with a different thickness or weight of paper, see
"Adjusting the Printhead Gap," Page 27.
11.Set top of form. (See "Setting Top of Form," Page 30.)
