Epson Stylus Pro 4450 - Cover, Side, Right Removal

EPSON Stylus Pro 4400/4450/4800/4880/4880C Revision C
Disassembly & Assembly Disassembly Procedures 218
6. Open "Cover, Printer".
7. Remove the four screws securing "Cover, Side, Right".
 C.B.S. 3x6: 2 pcs.
 C.C.P. 4x10: 2 pcs.
8. While slightly lifting the upper part of "Cover, Side, Right", remove the
"Cover, Side, Right" toward right side of the main unit.

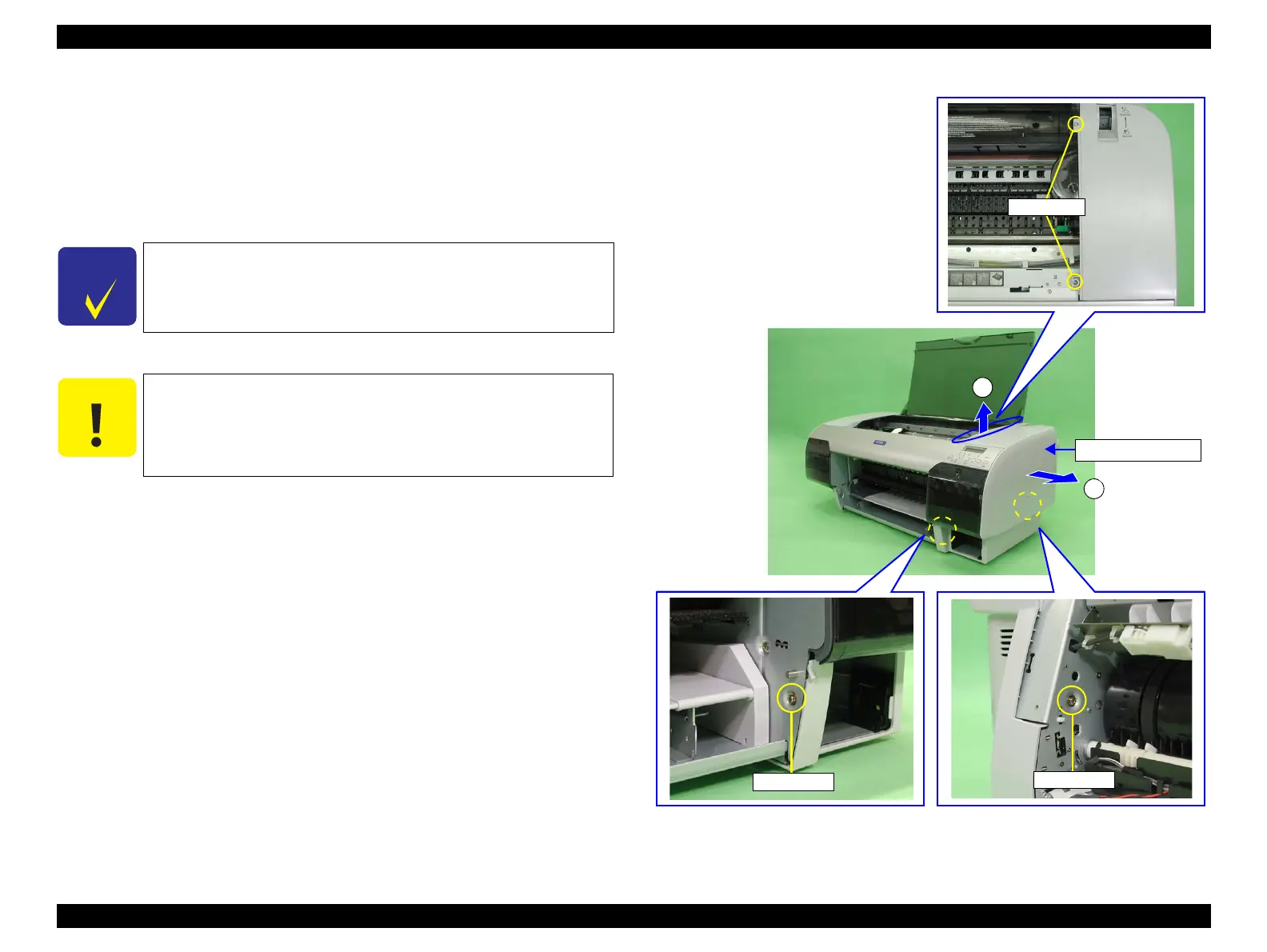

Figure 4-19. Cover, Side, Right Removal
C H E C K
P O I N T
Slightly lifting the upper part of "Cover, Side, Right" allows
the cover to be removed without interfering with the upper
part of the printer.
C A U T I O N
When removing the “Cover, Side, Right”, ink may leak or
splatter. So have cleaning rags ready and prevent ink from
getting on the work area. Install the "Maintenance Tank"
beforhand when leaving the "Cover, Side, Right" being
removed for a long time.
C.C.P. 4x10
C.C.P. 4x10
1
2
C.B.S. 3x6
Cover, Side, Right
