EPSON Stylus Pro 4400/4450/4800/4880/4880C Revision C
Disassembly & Assembly Disassembly Procedures 290

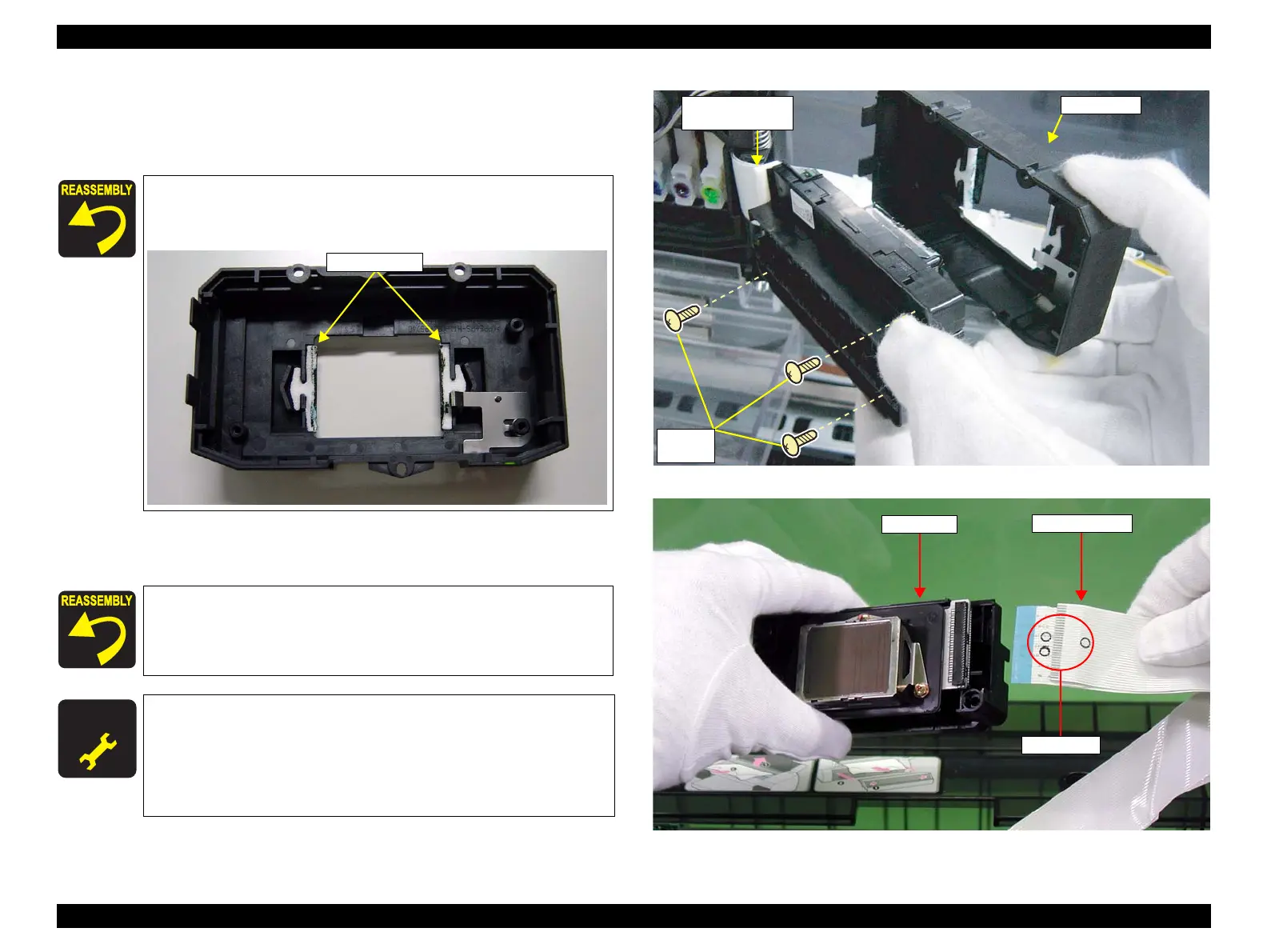

12. Remove the three screws that secure the "Printhead", and then remove the
"Printhead" from the "Carriage, C". (Refer to Figure 4-113.)
 C.P.P. 2.6x8: 3 pcs.
13. Disconnect the two "harness, Head"s from the "Printhead", and then
remove the "Printhead". (Refer to Figure 4-114.)
Figure 4-113. Printhead Removal
Figure 4-114. Harness, Head Removal
If the "Absorber, CR" comes off when removing the
"Printhead" form the "Carriage, C", reattach the "Absorber,
CR" to the "Carriage, C" as shown in the figure bilow.
"Harness, Head" should be connected with its circle-marked
surface facing downward (the nozzle surface).
Upper side: 2 circles
Lower side: 1 circle
A D J U S T M E N T
R E Q U I R E D
Be sure to refer to Chapter 5 “Adjustment” (p.366) and
perform specified adjustments after replacing or removing
the "Printhead". When replacing the "Printhead" with a new
one, be sure to write down the Head Rank ID of the new one
(21 characters in all) which is discribed on the ID Label.
(Refer to Figure 4-112.)
Absorber, CR
C.P.P.
2.6x8
Carriage, CCAUTION:
Head, Harness
Harness, Head
Print Head
Circle Mark
