Epson Stylus Pro 4450 - Mount Assy., Plate, Motor, ASF, SP Removal

EPSON Stylus Pro 4400/4450/4800/4880/4880C Revision C
Disassembly & Assembly Disassembly Procedures 260
3. Insert screwdriver through hole at lower right of "Spur Gear, 16" removed
in Step 2 and remove the screw securing "Mount Assy., Plate, Motor, ASF,
SP".
 C.B. 3x8: 1 pc.
4. Remove the two screws securing "Mount Assy., Plate, Motor, ASF, SP"
and then remove "Mount Assy., Plate, Motor, ASF, SP".
 C.B.S. 3x6: 1 pc.

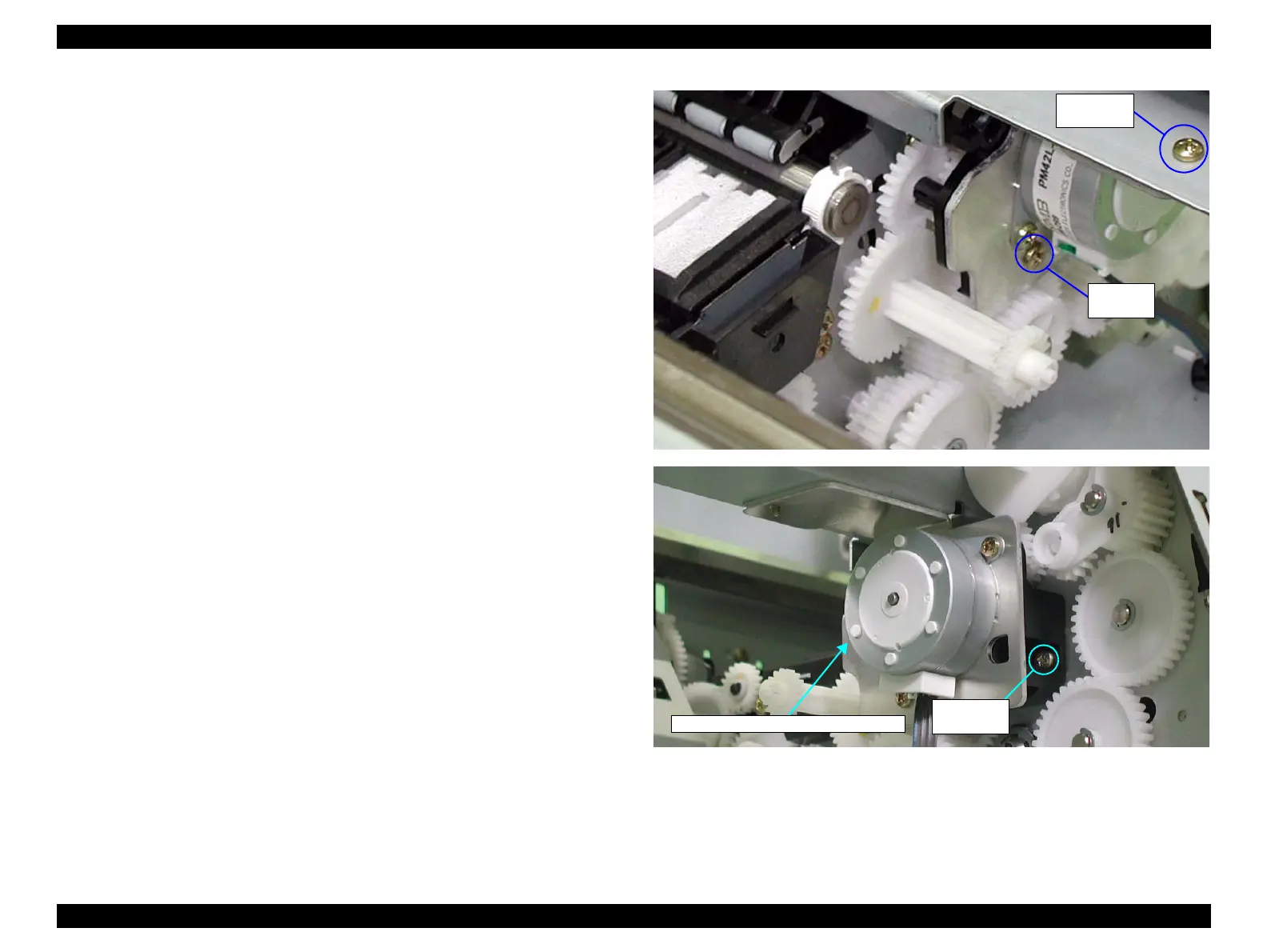

Figure 4-71. Mount Assy., Plate, Motor, ASF, SP Removal
Step 3
C.B. 3x8
Step 4
C.B.S. 3x6
Step 4
C.B.S. 3x6
Mount Assy., Plate, Motor, ASF, SP
