EPSON Stylus Pro 4400/4450/4800/4880/4880C Revision C
Adjustment Basic Adjustment 425
33. Click [OK] and follow the instructions (following procedure) displayed on
the screen to perform color measuring.
1. Set the calibrator with its measuring part matched with measuring start
position (gray part) as shown in Figure 5-68.
2. Press the button on the side of the calibrator.
3. When it beeps, keep holding down the button and scan the patch along
the scanning ruller to measuring end position (gray part).
4. Once the measuring is complete, release the button.
5. Repeat Step 1 through 4 twice for the same patch line.
6. Repeat Step 1 through 5 to measure the bottommost line to the top
line. (The line which needs to be measured is displayed on the
screen.)
34. Once all the lines (5 lines) are measured, click [OK].
35. Measure Sheet 2 by following Step 31 through 34.

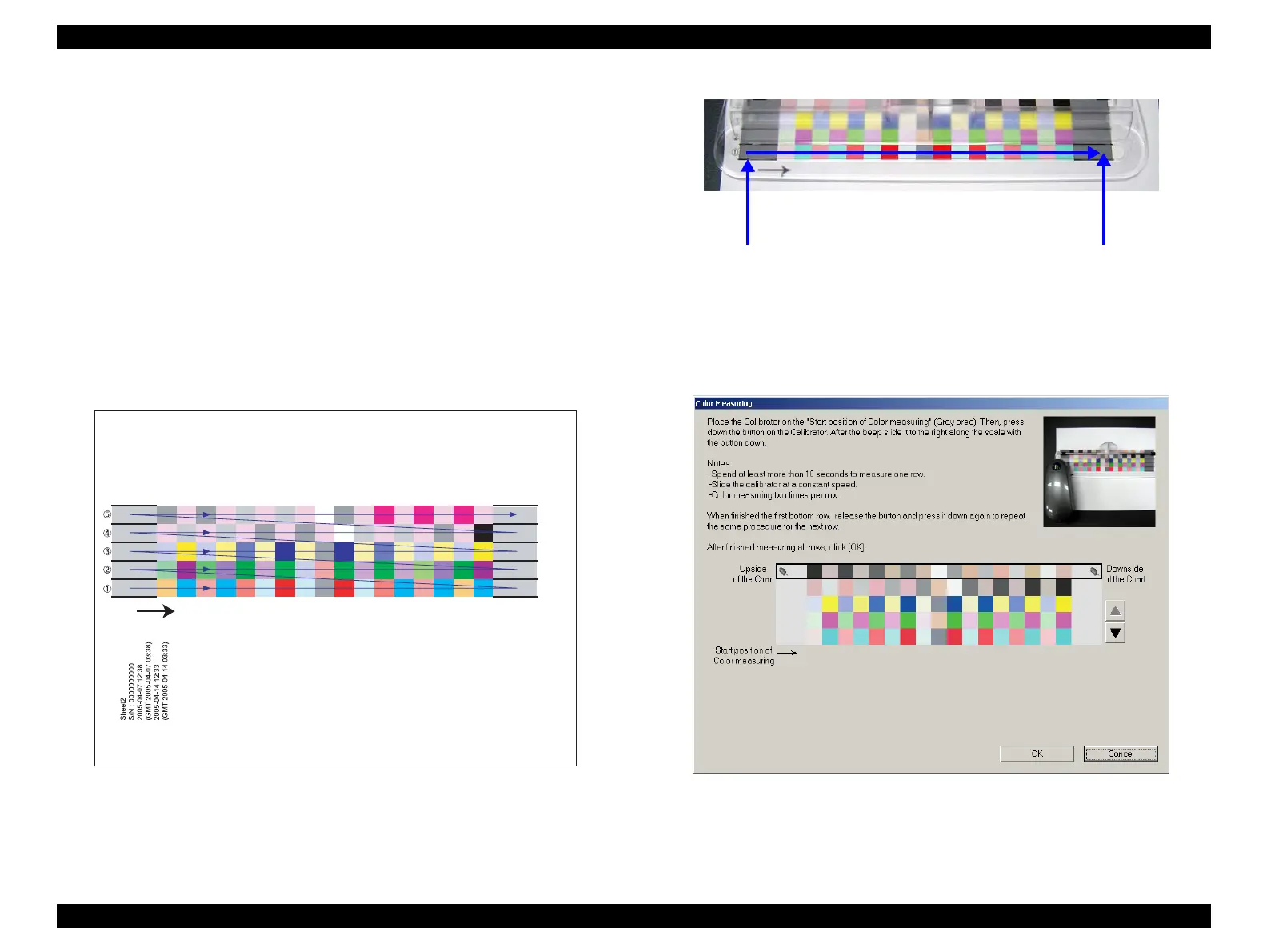

Figure 5-75. Color Measuring Order
Figure 5-76. Setting the Calobrator/Color Measuring Position
Figure 5-77. Color Measuring Screen
Start position in the color measuring End position in the color measuring
