Epson Stylus Pro 4450 - Screws Securing Frame, ASF, Right; Frame, ASF, Right Removal; Wheel, Detector Removal

EPSON Stylus Pro 4400/4450/4800/4880/4880C Revision C
Disassembly & Assembly Disassembly Procedures 255
3. Remove the three screws that secure the "Frame, ASF, Right" from the
bottom of the "ASF Unit", and remove the "Frame, ASF, Right" from the
hole shown in Figure 4-64 as holding the "Hopper"
 C.B.P. 3x8: 3 pcs.
4. Push down and release the tab that secures the "Wheel, Detector" using a
precision driver or a similar tool, and then remove the "Wheel, Detector".
(Refer to Figure 4-65.)

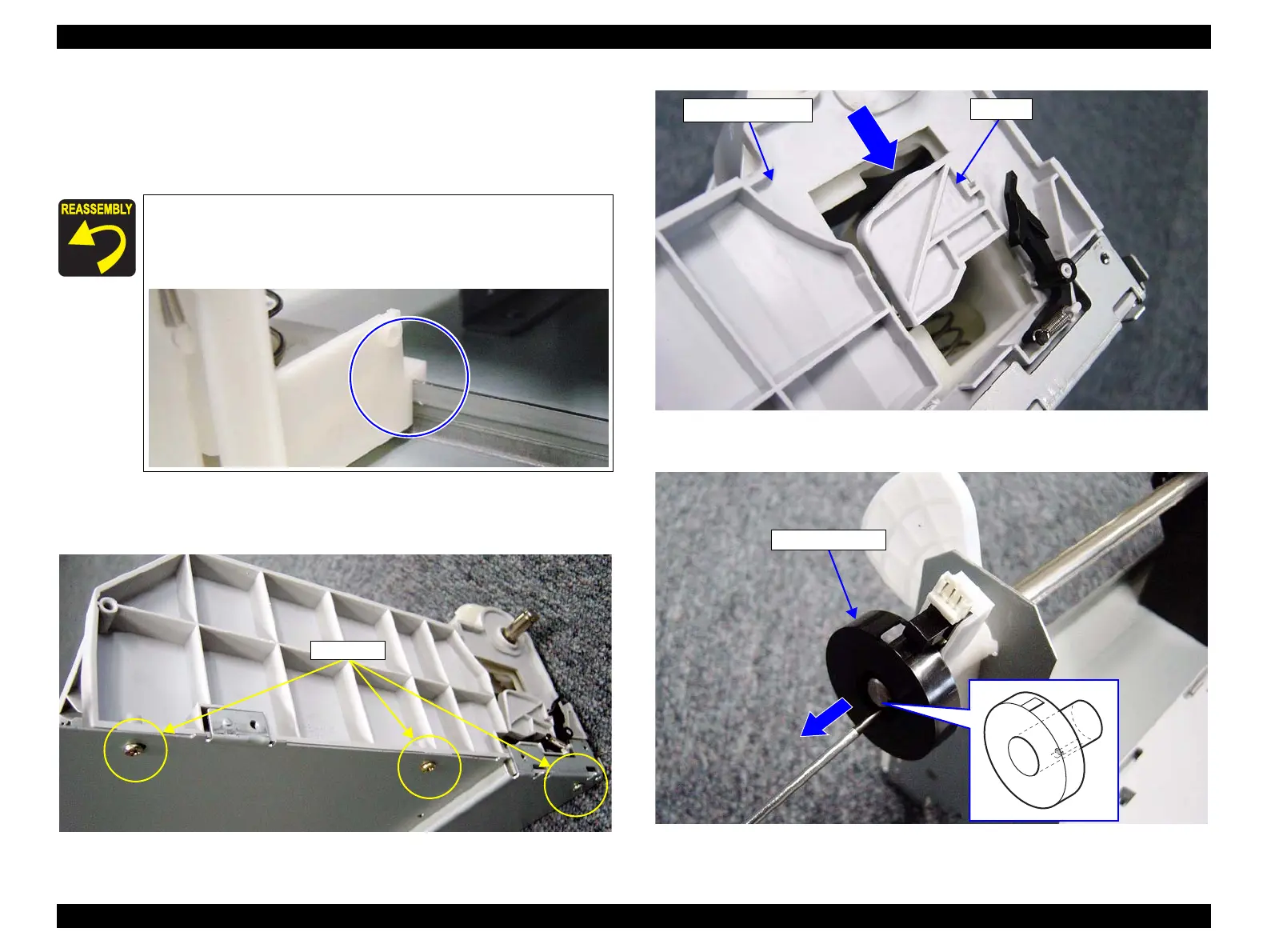

Figure 4-63. Screws Securing "Frame, ASF, Right"
Figure 4-64. "Frame, ASF, Right" Removal
Figure 4-65. "Wheel, Detector" Removal
When installing the "Frame, ASF, Right", make sure that both
the grooves of the "Cover, Roller, LD, Left" and the "Cover,
Roller, LD, Right" are engaged with the rail of the "Frame,
ASF, Lower".
C.B.P. 3x8
Freme, ASF, Right
Hopper
Wheel, Detector
