Epson Stylus Pro 4450 - Releasing Harnesses

EPSON Stylus Pro 4400/4450/4800/4880/4880C Revision C
Disassembly & Assembly Disassembly Procedures 309
9. Disconnect "Harness, CSIC"s (5 connectors: CN39, CN42, CN43, CN45,
CN461) and "I/H Lever Sensor (Right)" harness (CN36: white, 2 pin) from
"C511_SUB-B Board".
(Refer to "4.2.4.4 C511_SUB-B Board" (p236).)
10. Peel off four pieces of acetate tape shown in Figure 4-142 and 4-143.

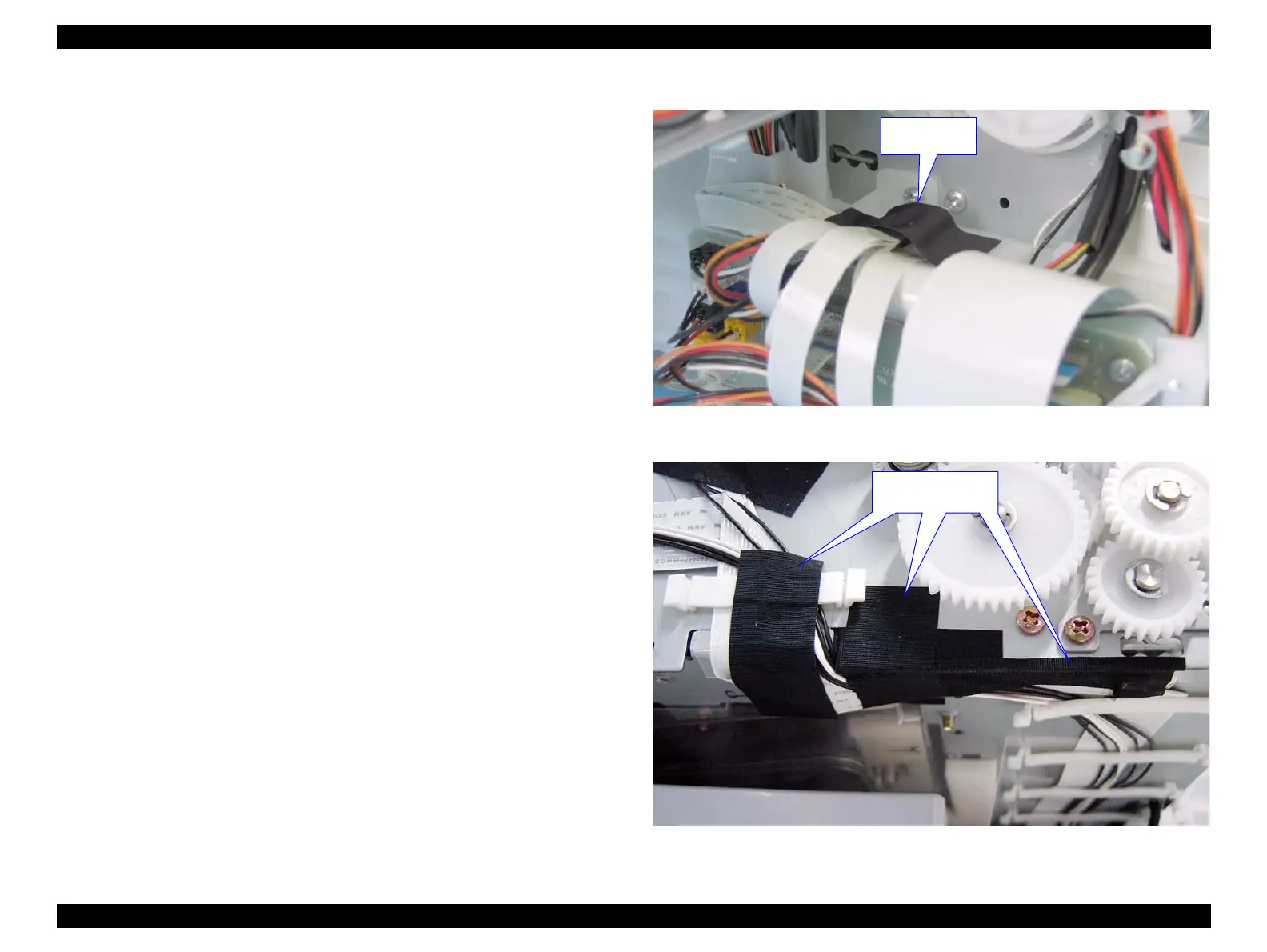

Figure 4-142. Releasing Harnesses_1
Figure 4-143. Releasing Harnesses_2
Step 10
Acetate Tape
Step 10
Acetate Tape
