4.2.7.3 Harness, CR
1. Remove “Release, Lever Unit”. (Refer to "4.2.9.1 Release Unit" (p343).)
2. Disconnect "Motor Assy., CR" harness (CN15: white, 2 pin) from the "C533
MAIN Board", and peel the acetate tape to release the harness. (Refer to
"4.2.4.1 C593 MAIN Board" (p226).)
3. Release the “Motor Assy., CR” harness from the “Paper Guide, Lower” tab
and the two channels. (Refer to Figure 4-86.)
4. Peel two pieces of acetate tape and release “Motor Assy., CR” harness,
and then pull it out through the hole of the frame.(Refer to Figure 4-87.)
5. Cut the tying band and release the “Motor Assy., CR” harness.(Refer to
Figure 4-87.)

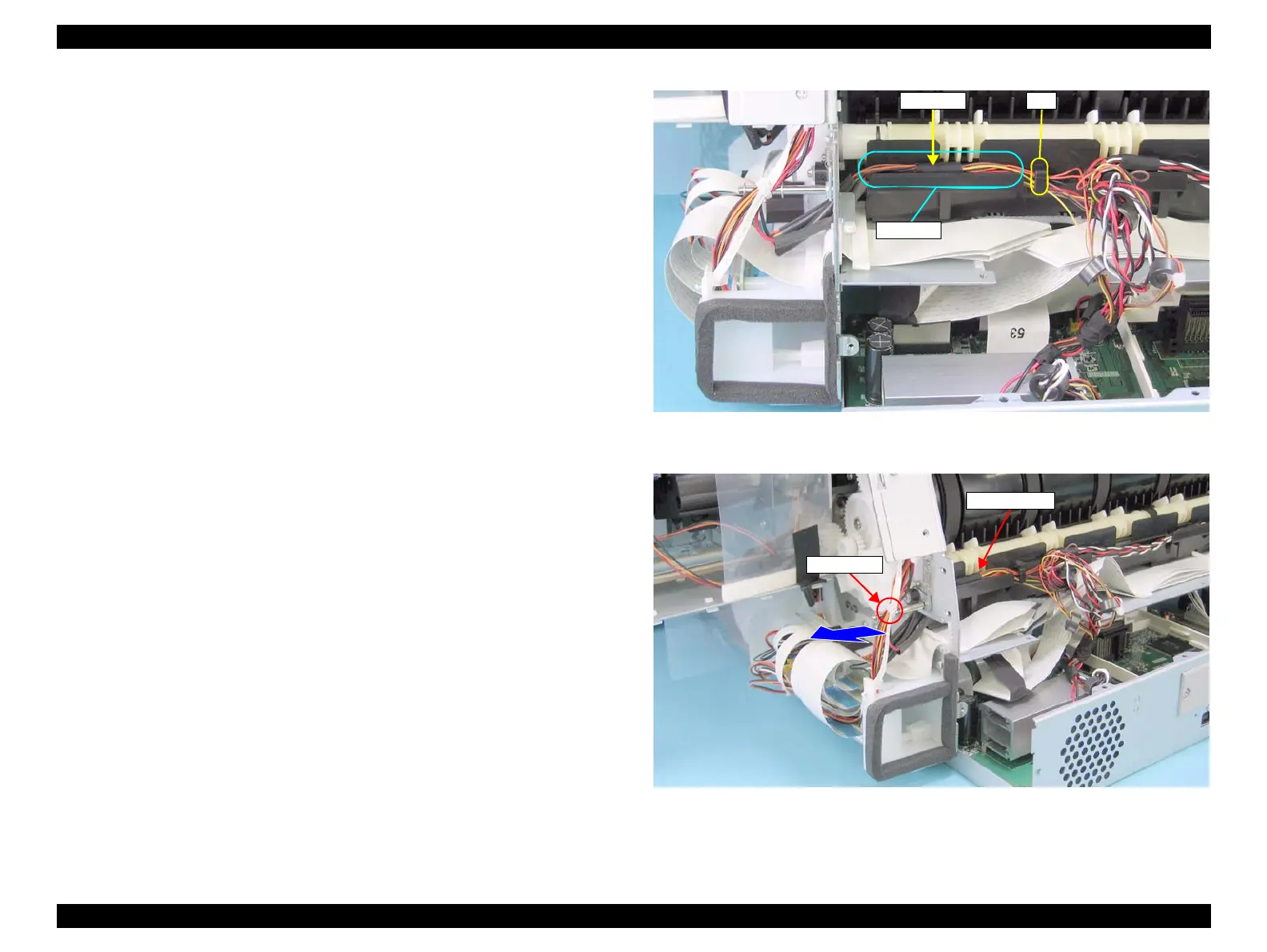

Figure 4-86. Releasing the Harness_1
Figure 4-87. Releasing the Harness_2
Harness
Channels
Tab
Tying Band
Acetate Tape
