6. Release the "Motor Assy., CR" harness from the four cramps, four pieces
of acetate tape and the tab on the frame. (Refer to Figure 4-88.)
7. Disconnect the connector from “Motor Assy., CR” and remove “Harness,
CR”.(Refer to Figure 4-83.)

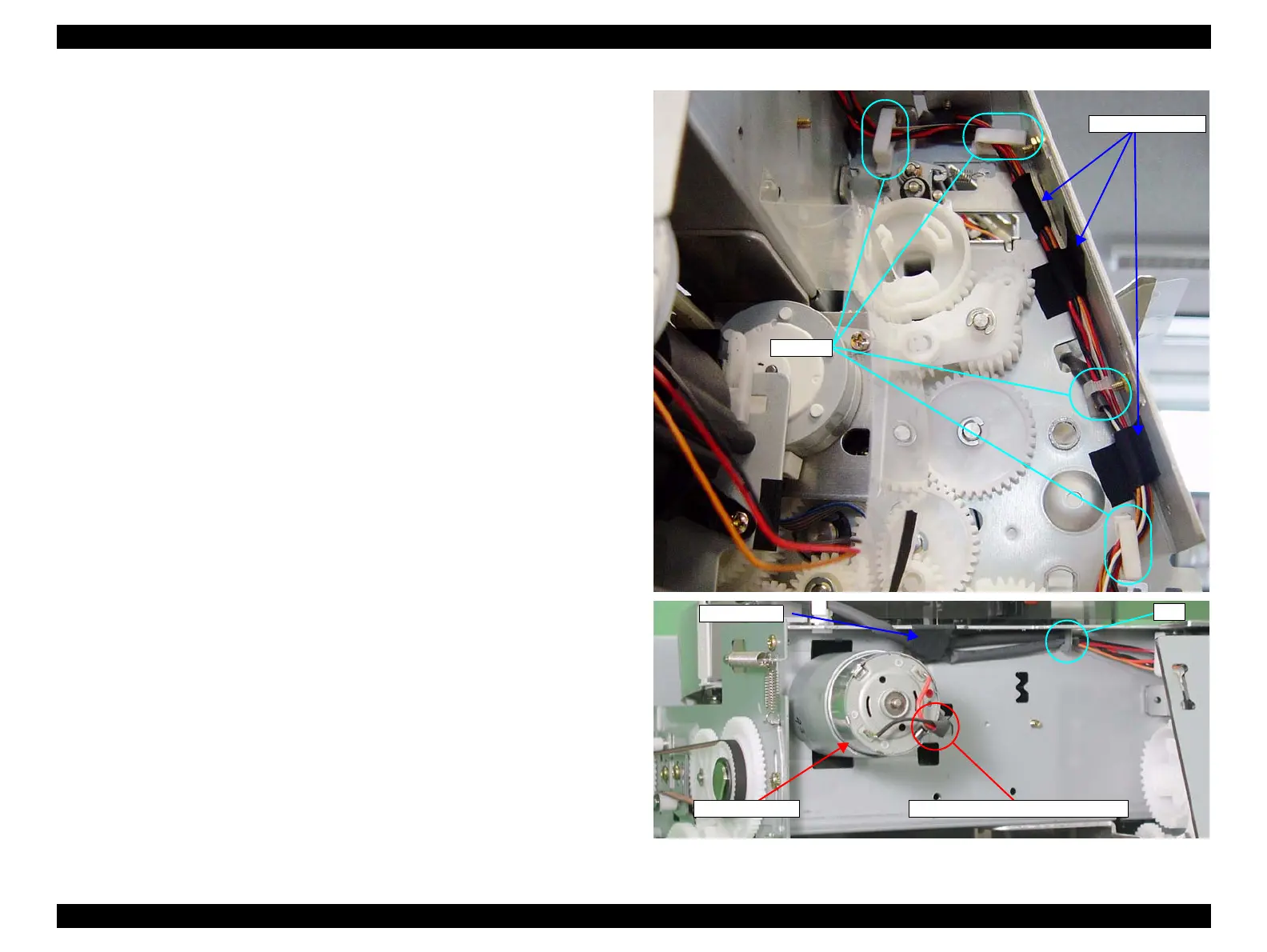

Figure 4-88. Releasing the Harness_3
Acetate Tape (x3)
Clamps
Tab
Acetate Tape
Motor Assy., CR
Fasten tube to motor end surface
