EPSON Stylus Pro 4400/4450/4800/4880/4880C Revision C
Disassembly & Assembly Disassembly Procedures 331
4.2.8.11 Harness, Head, Intermit / Harness, Head
1. Remove the "Panel, Front".
(Refer to "4.2.3.5 Panel, Front/Panel Unit" (p219).)
2. Disconnect the "Harness, Head, Intermit" and the three "Harness, Head"s
from the following connectors on the "C593 SUB-D Board".
(Refer to "4.2.4.6 C593_SUB-D Board" (p240).)
 CN4: Harness, Head, C
 CN5: Harness, Head, A
 CN6: Harness, Head, B
3. Remove the clamp that attaches the FFC to the printer frame at the front of
the printer. (Refer to Figure 4-174.)
4. Release the FFC from the tabs of the "Cover, Tube" and draw out the FFC
from the hole on the front frame of the printer. (Refer to Figure 4-175.)
5. Release the FFC from the tabs of the "Cover, Tube".
(Refer to Figure 4-176.)

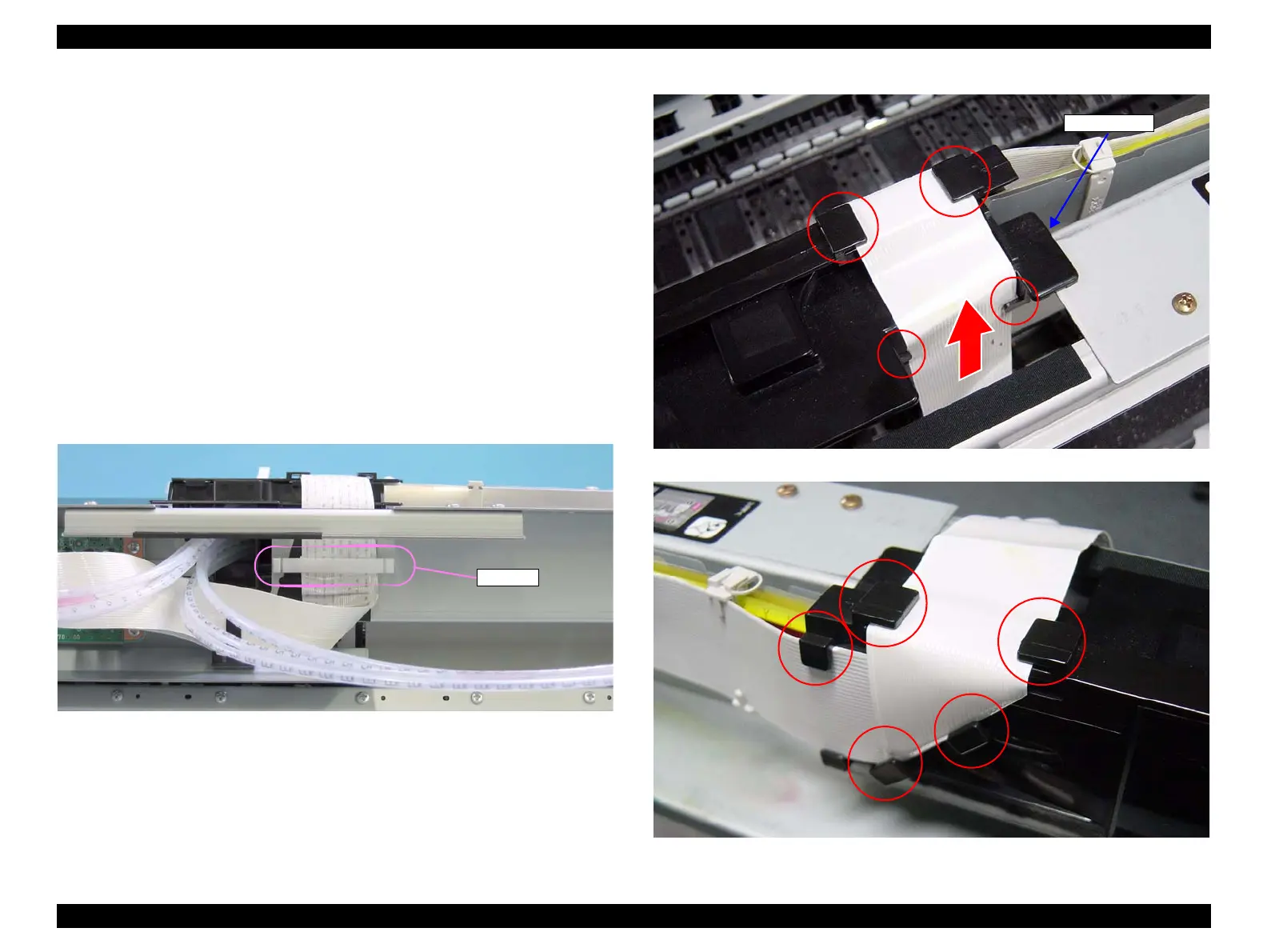

Figure 4-174. FFC Release
Figure 4-175. Release from Cover, Tube_1
Figure 4-176. Release from Cover, Tube_2
Clamp
Cover, Tube
