EPSON Stylus Pro 4400/4450/4800/4880/4880C Revision C
Disassembly & Assembly Disassembly Procedures 234
4.2.4.3 C593_SUB Board
1. Open "Cover, Printer".
2. Release the carriage lock and move the "Carriage Unit" to the position
shown in Figure 4-41.
(Refer to "4.2.1.2 Carriage Unit Lock Release/Lock Set Method" (p208).)
3. Remove the three screws securing the "Carriage Cover" and remove the
"Carriage Cover" upward. (Refer to Figure 4-42.)
 C.B.P. 3x8: 3 pc.

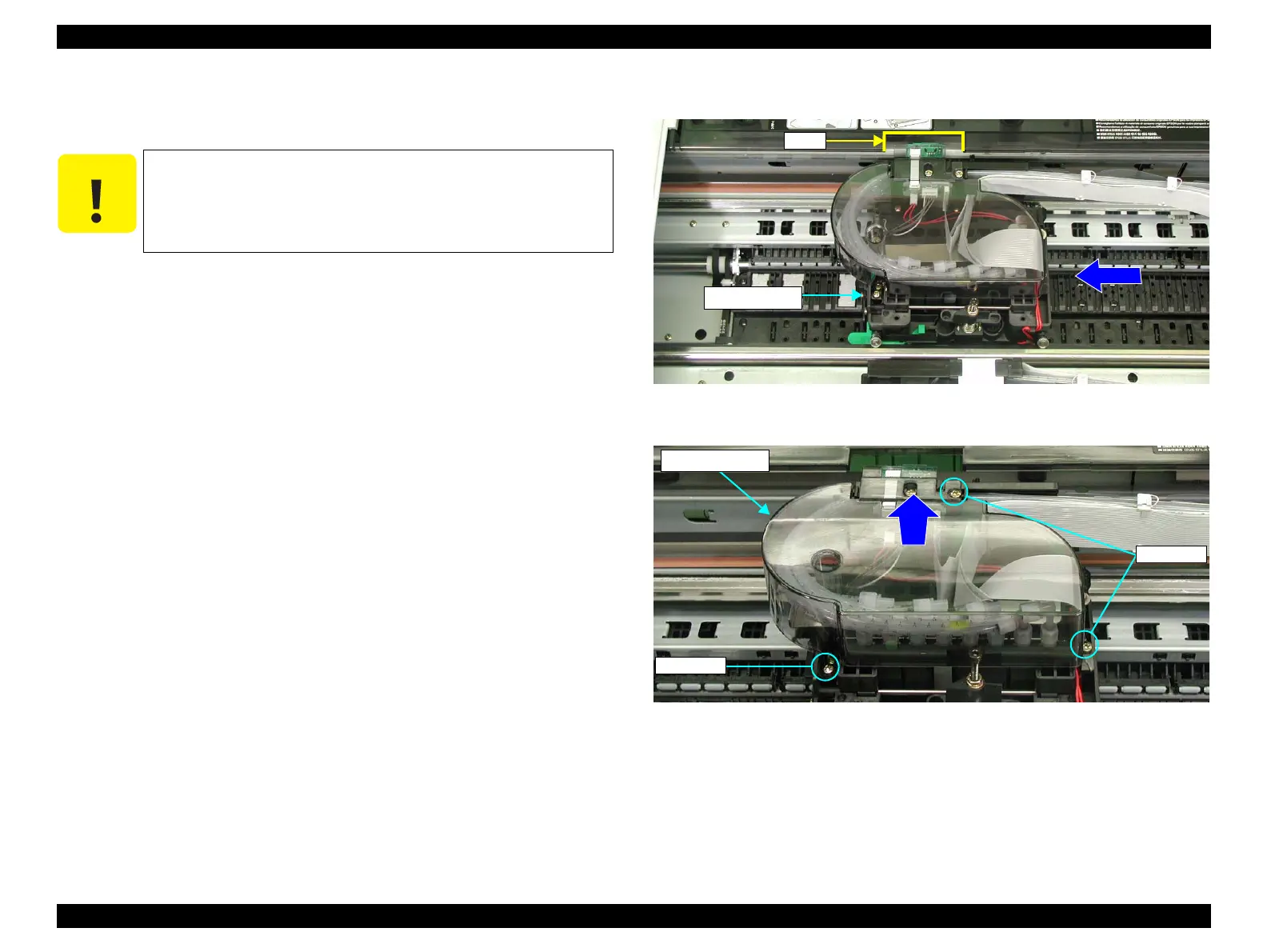

Figure 4-41. Moving the Carriage Unit
Figure 4-42. Carriage Cover Removal
C A U T I O N
When performing the following steps, remove protective
equipment if it is installed and make sure to release the
Carridge Unit lock with the "Transport Retaining Lever".
Refer to "4.2.1.1 Release of the Transport Retaining Lever"
(p207).
Slot
Carriage Unit
C.B.P. 3x8
C.B.P. 3x8
Carriage Cover
