5. Remove the four screws securing "Guide, I/H, Right" and remove "Guide, I/
H, Right" by pulling forward. (Refer to Figure 4-138.)
 C.B.S. 3x6: 4 pcs.
6. Remove the screw securing "Installation Plate, I/H Guide, B" and then
remove "Installation Plate, I/H Guide, B".
(Refer to Figure 4-139.)
 C.B.S. 3x6: 2 pcs.

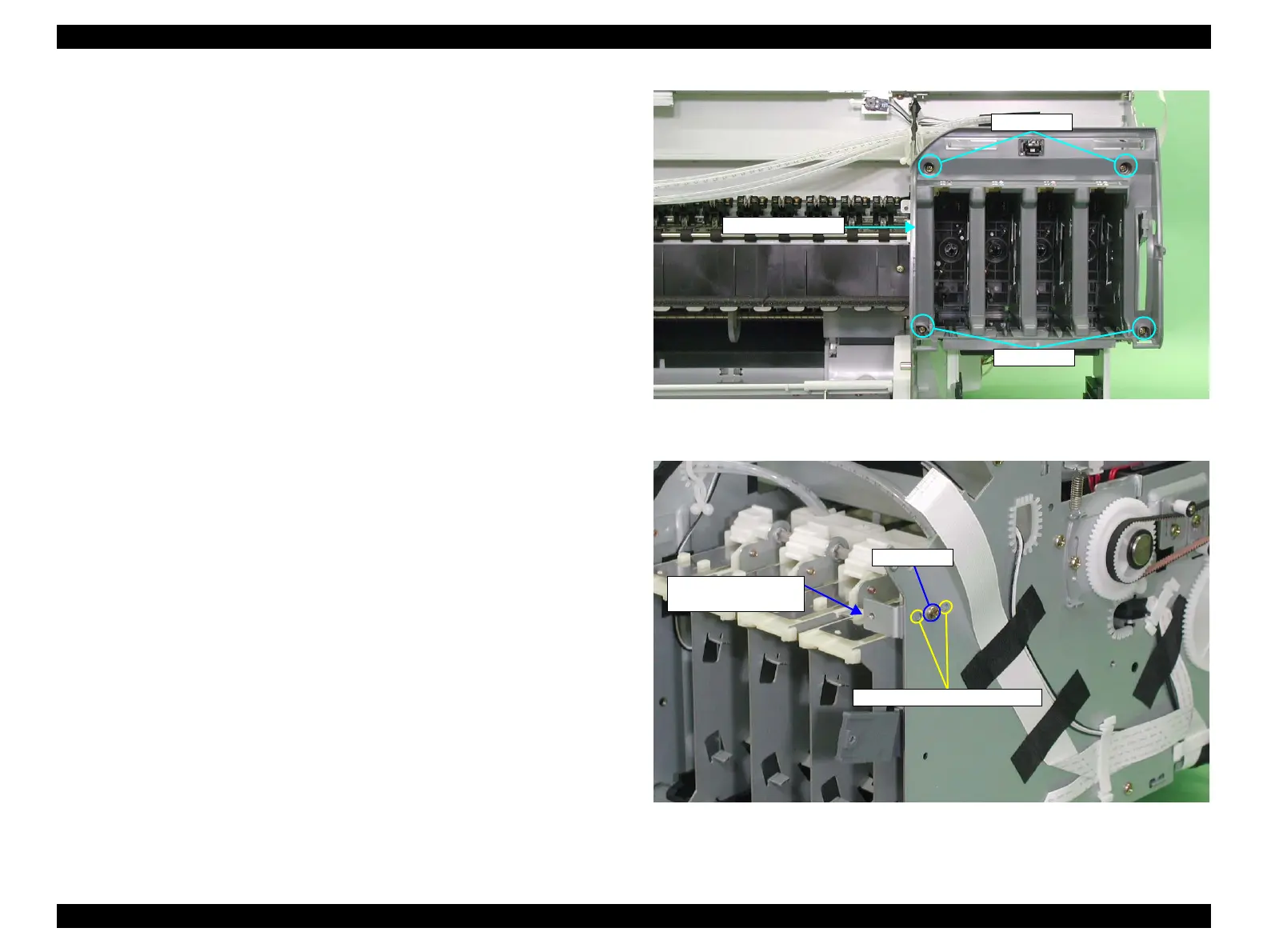

Figure 4-138. Screws Securing Guide, I/H, Right
Figure 4-139. Installation Plate, I/H Guide, B Removal
Guide, I/H, Right
C.B.S. 3x6
C.B.S. 3x6
Installation Plate, I/H
Guide, B
Dowels and Positioning Holes
C.B.S. 3x6
