Epson Stylus Pro 4450 - Base, Right Setting

EPSON Stylus Pro 4400/4450/4800/4880/4880C Revision C
Disassembly & Assembly Disassembly Procedures 248

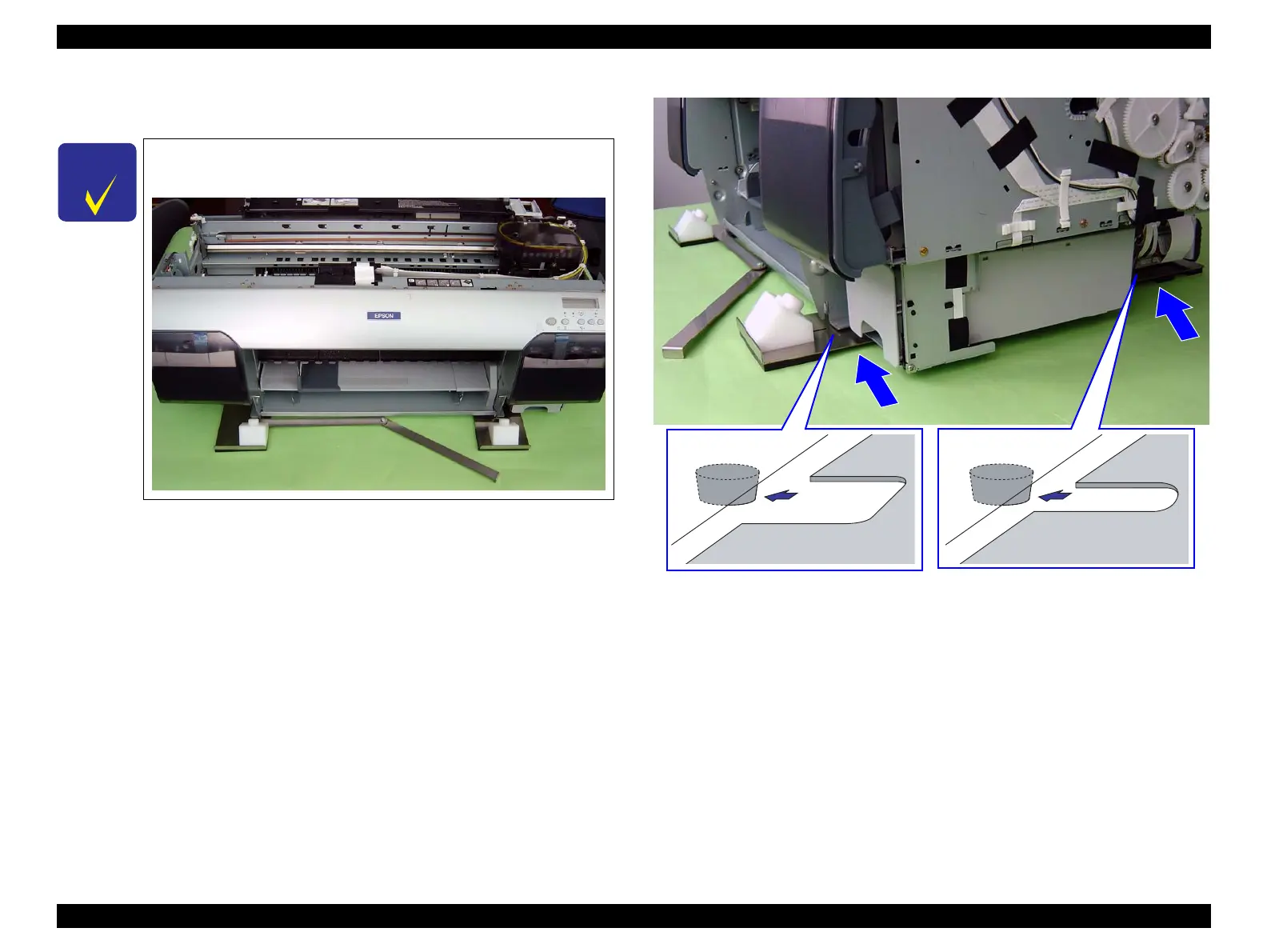

6. Insert the "Base, Right" under the right bottom of the main unit until the
noches hit the rubber feet of the printer.
Figure 4-56. "Base, Right" Setting
C H E C K
P O I N T
After the "Base, Left", "Base, Right", and the "Joint Plate"
are set up.
