Epson Stylus Pro 4450 - Cover, Rear; Cover, Rear Removal

EPSON Stylus Pro 4400/4450/4800/4880/4880C Revision C
Disassembly & Assembly Disassembly Procedures 223
4.2.3.7 Cover, Rear
1. Remove "Cover, Printer" (p221).
2. Remove "Cover, Side, Right" (p217).
3. Remove the three screws securing "Cover, Rear" and remove "Cover,
Rear" upward.
 Shaft, Installation, CR: 2 pcs.
 C.B.S. 3x6: 1 pc.

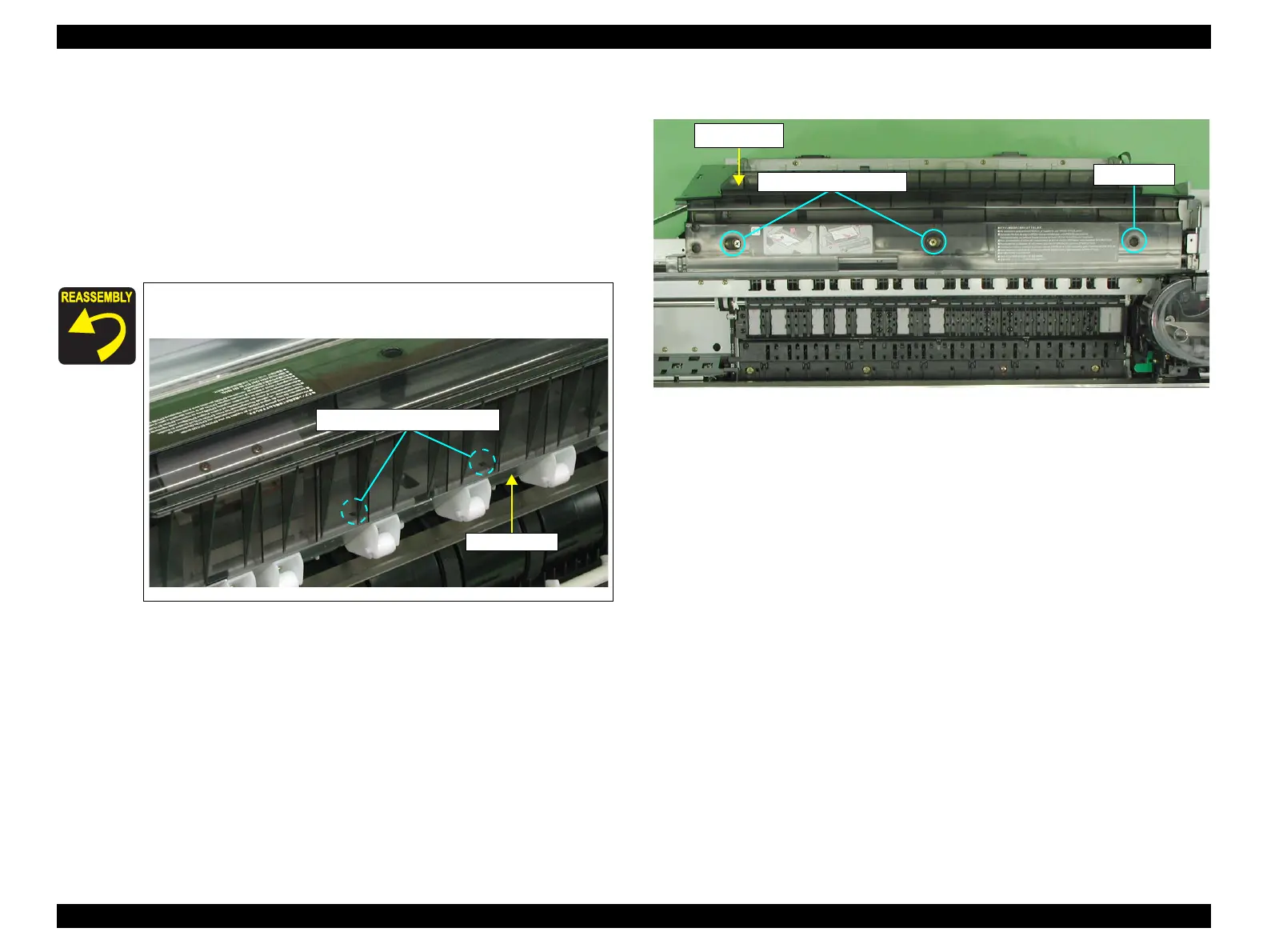

Figure 4-25. Cover, Rear Removal
Align the two ribs of the "Cover, Rear" with the two
positioning holes on the"Release Unit".
Ribs and Positioning Holes
Release Unit
Cover, Rear
Shaft, Installation, CR
C.B.S. 3x6
