EPSON Stylus Pro 4400/4450/4800/4880/4880C Revision C
Disassembly & Assembly Disassembly Procedures 229

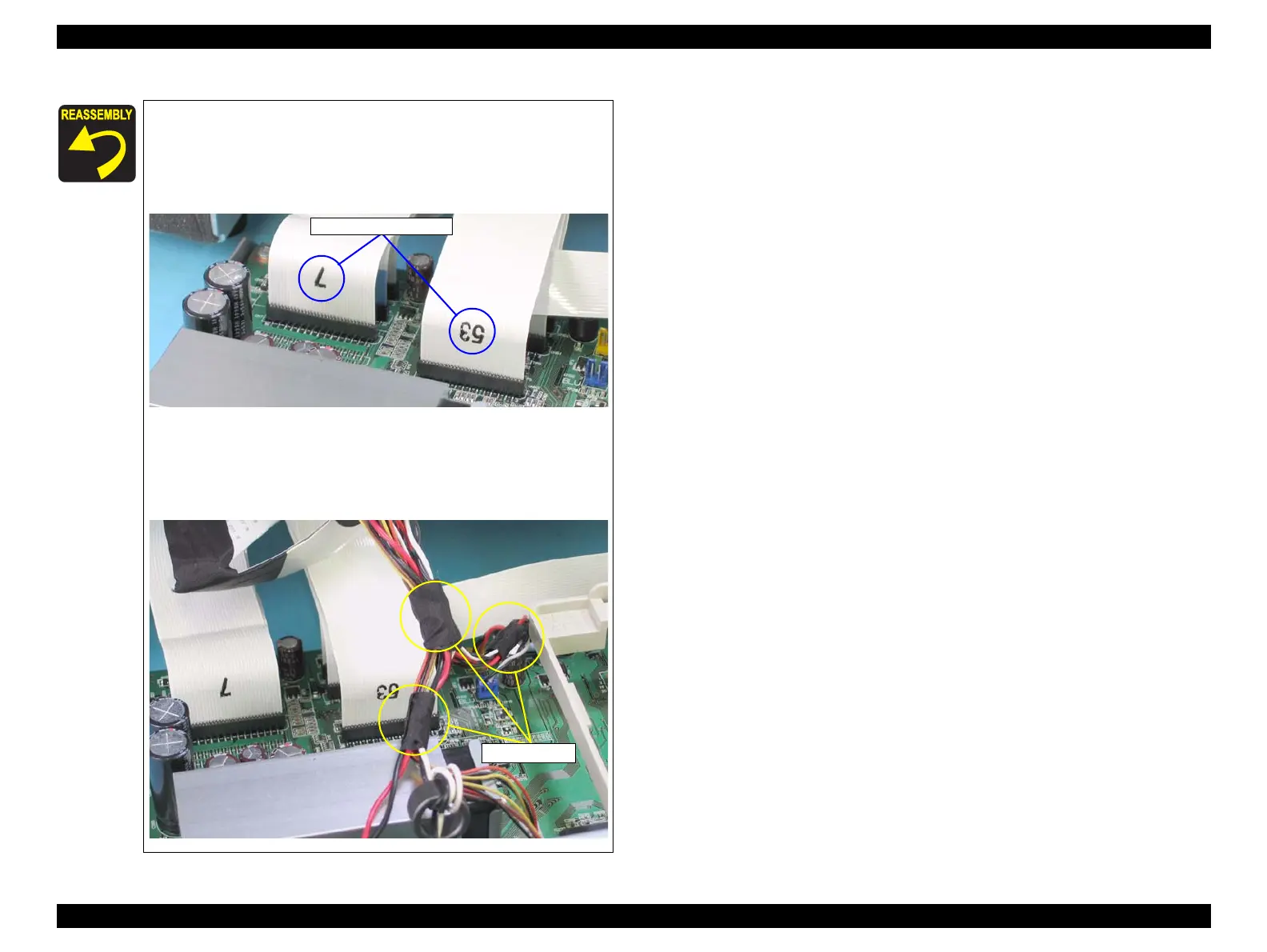

The connector number is marked on each connector on
the board. When connecting the FFCs, match the
connector numbers with the ones on the board with the
number printed side of the FFCs facing toward the
printer rear.
The wires should be bundled with acetate tapes in three
places as shown in the figure below to prevent them
from getting onto the guide rail for the Type-B Board. If
the wires are not bundled, they may be broken or cut off
when installing the Type B Board.
Connector Numbers
Acetate Tapes
To Next Page
