EPSON Stylus Pro 4400/4450/4800/4880/4880C Revision C
Disassembly & Assembly Disassembly Procedures 262

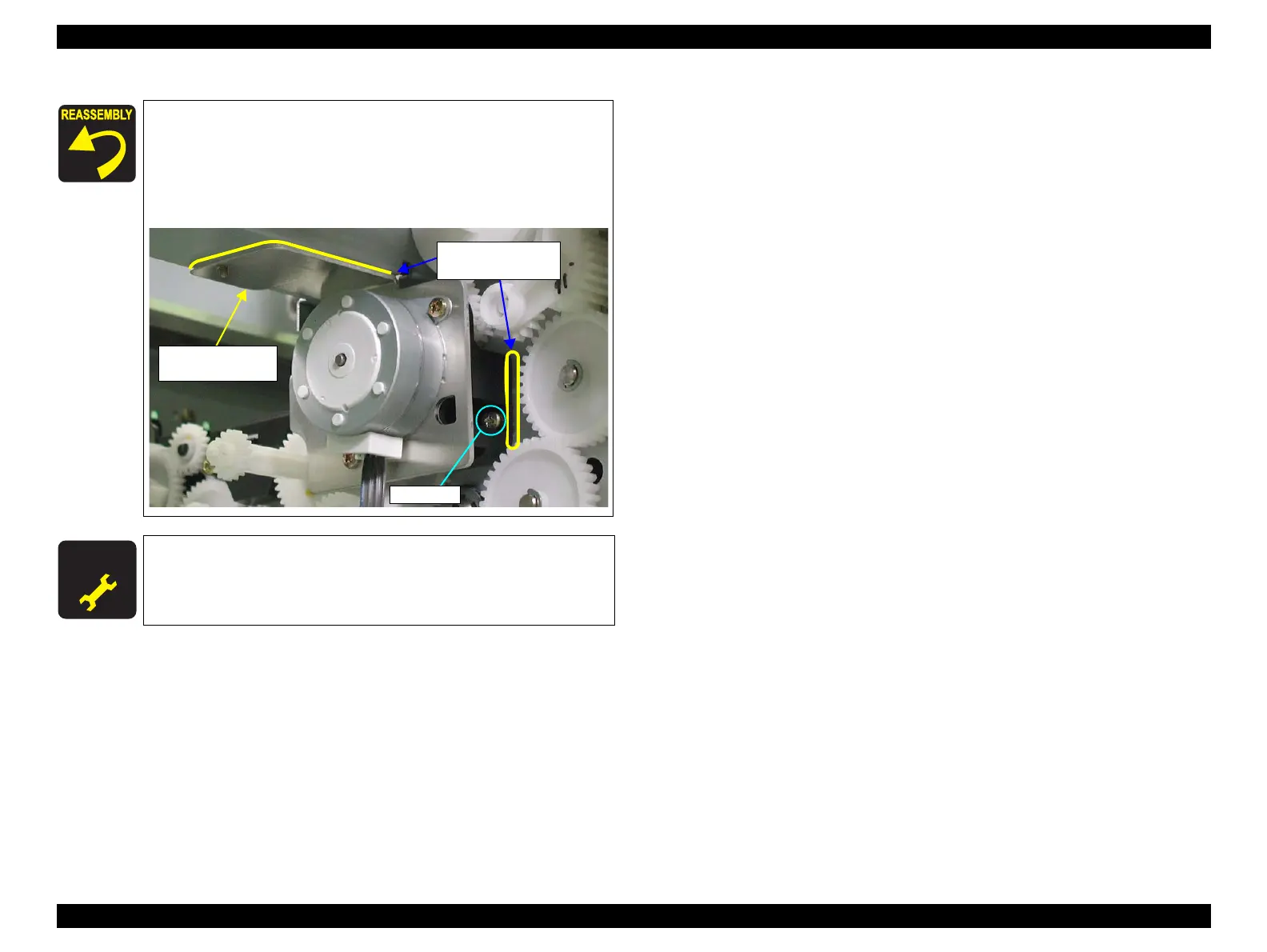

5. Tighten screws so that there are no gaps at the locations
listed below.
• Between frame and "Heat Dissipation Plate, Motor,
ASF".
• Between frame and "Mount Assy., Plate, Motor, ASF,
SP".
A D J U S T M E N T
R E Q U I R E D
Be sure to refer to Chapter 5 “Adjustment” (p.366) and
perform specified adjustments after replacing the "Mount
Assy., Plate, Motor, ASF, SP".
C.B.S. 3x6
Confirm close fit of
components
Heat Dissipation
Plate, Motor, ASF
