EPSON Stylus Pro 4400/4450/4800/4880/4880C Revision C
Disassembly & Assembly Disassembly Procedures 302

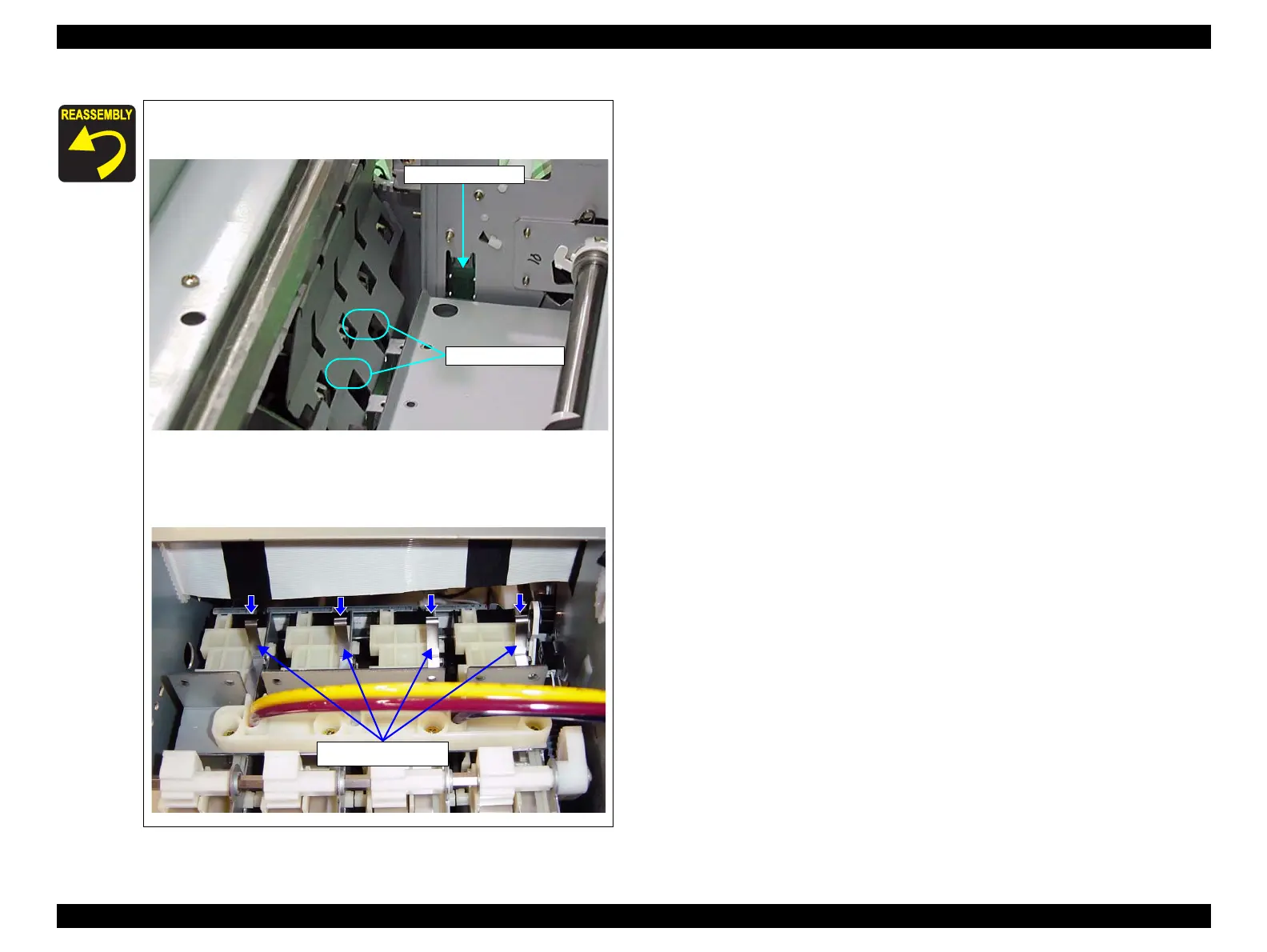

Make the rear side screw stop tabs stay under the
"Cover, Motor, PF".
The four grounding springs on the top of the "I/H Left
Unit" make contact with the printer frame, so install the
"I/H Left Unit" while lightly holding down the grounding
springs so as not to deform them.
Cover, Motor, PF
Screw Stop Tabs
Grounding Springs
To Next Page
