UPGRADING FIRMWARE Revision 1.4 Page 8-5
5. Configure the port settings of the terminal program as follows:
Baud
57600
Parity
None
Data bits
8
Stop bits
2
Flow Control
None
5. Power up the unit.
8.3.2.2. Initiating Firmware Upgrade Mode from the Terminal Program
You may send commands to the keyer unit boot monitor in order to upgrade the application firmware.
6. Move the upgrade jumper into UPGRADE mode. Re-insert the card.
7. Power up the unit. After the unit powers up, user should hit CTRLX 5 times and a banner with the
boot code version information should appear in the terminal window. The cursor to the right of the
word “BOOT>” should be spinning. The user should now type in the word upgrade. Please refer to
Figure 8-3.
For example:
EVERTZ 7700FC BOOT MONITOR
MON8240 1.1 BUILD 9
COPYRIGHT 2000 EVERTZ MICROSYSTEMS LTD. ALL RIGHTS RESERVED
UPGRADE JUMPER PRESENT
UPLOAD MAIN PROGRAM

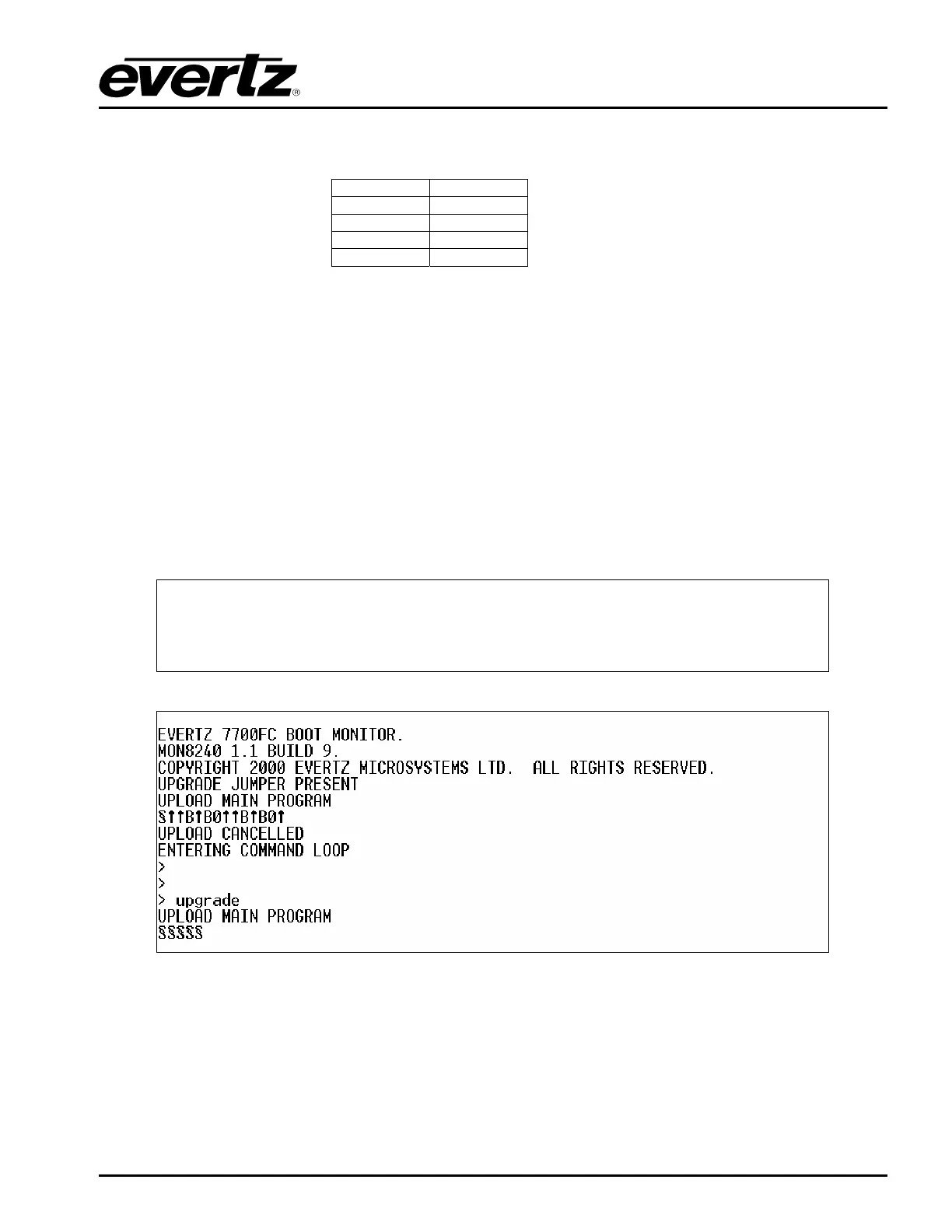

Figure 8-3: 7700FC Boot Monitor
