7700 Multiframe Manual
7725DSK-LG / 7725DSK-LG-HD HD/SD Logo Inserter & Media Keyer
Page 3-34 Revision 1.4 VLPRO OPERATION
3.13.7.12. Setting the Font Height
This option is used to set the font size that will be used for the crawl logo scrolling text message.
The Font Height is the vertical size of the font measured in lines of video.
3.13.7.13. Setting the Font Name
This option is used to set the font that will be used for the crawl logo scrolling text message.
3.13.8. Setting the Crawl Logo Colours
There are two menu items used to set the text (foreground) and background colours of the crawl logo.
For the sake of simplicity, only the menu item for setting the background colour will be described in the
manual. The Crawl FG in RGB Format is set the same way.
The Crawl BG in RGB Format option is used to set the background colour for the crawl logo.

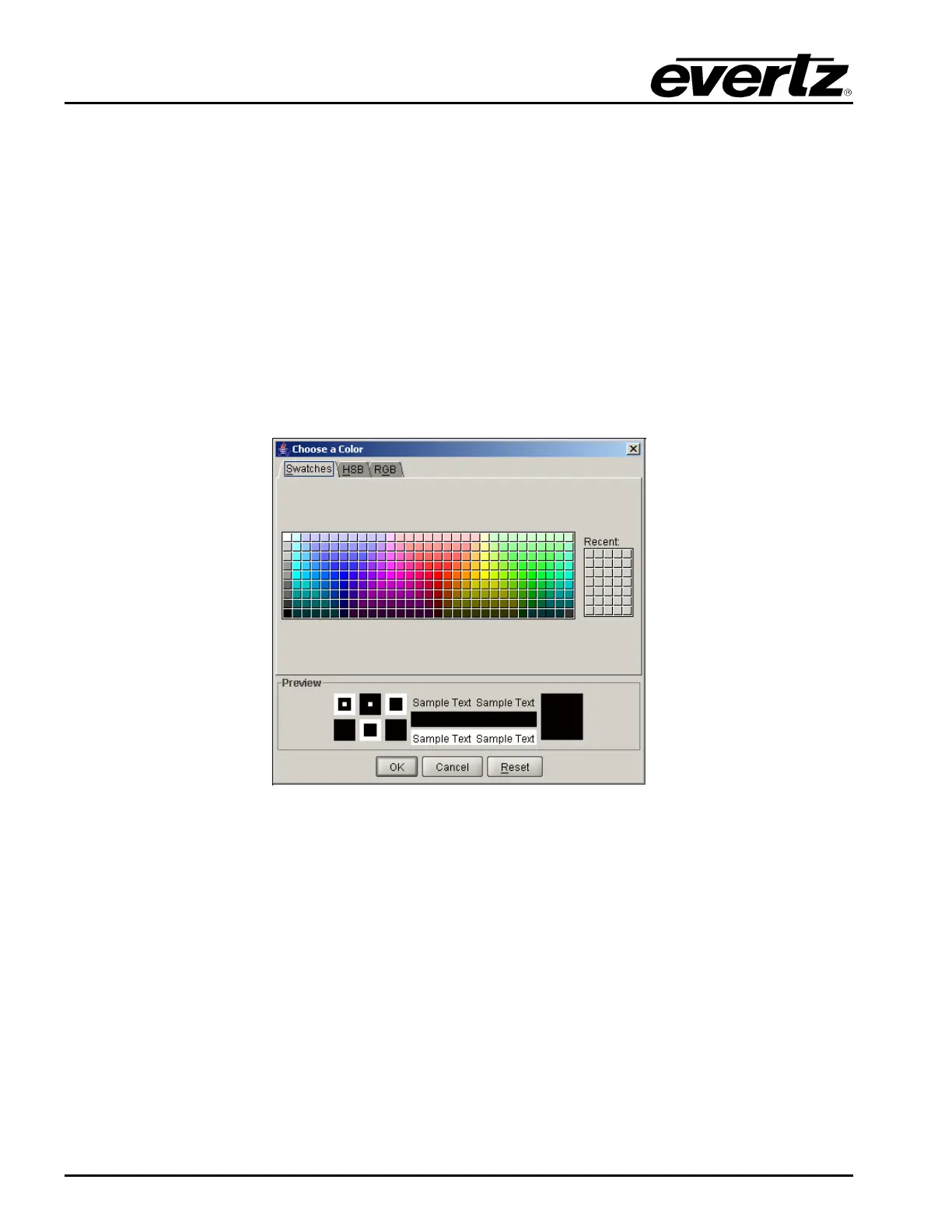

Figure 3-17: “Choose a Colour” Dialog Box
In order to change the colour settings for crawls, select the colour palette on the bottom right of the
screen and the “Choose a Colour” dialog box will appear as illustrated in Figure 3-17. In this dialog box
the user can select a colour using Swatches, HSB, and RGB formats.
3.13.8.1. Setting the Crawl Outline Opacity
The Crawl Outline Opacity control is used to set the opacity of the crawl outline. The opacity value
ranges from 0 to 255. Setting the opacity to a value of 255 makes the crawl outline completely opaque.
Setting the opacity to a value of 0 makes the crawl outline complete transparent.
