3. When testing is completed, a Summary Results screen is displayed like
that in Figure 5-3 for the
HDSL2 Service Type, using a TN2100:
acy55s.eps

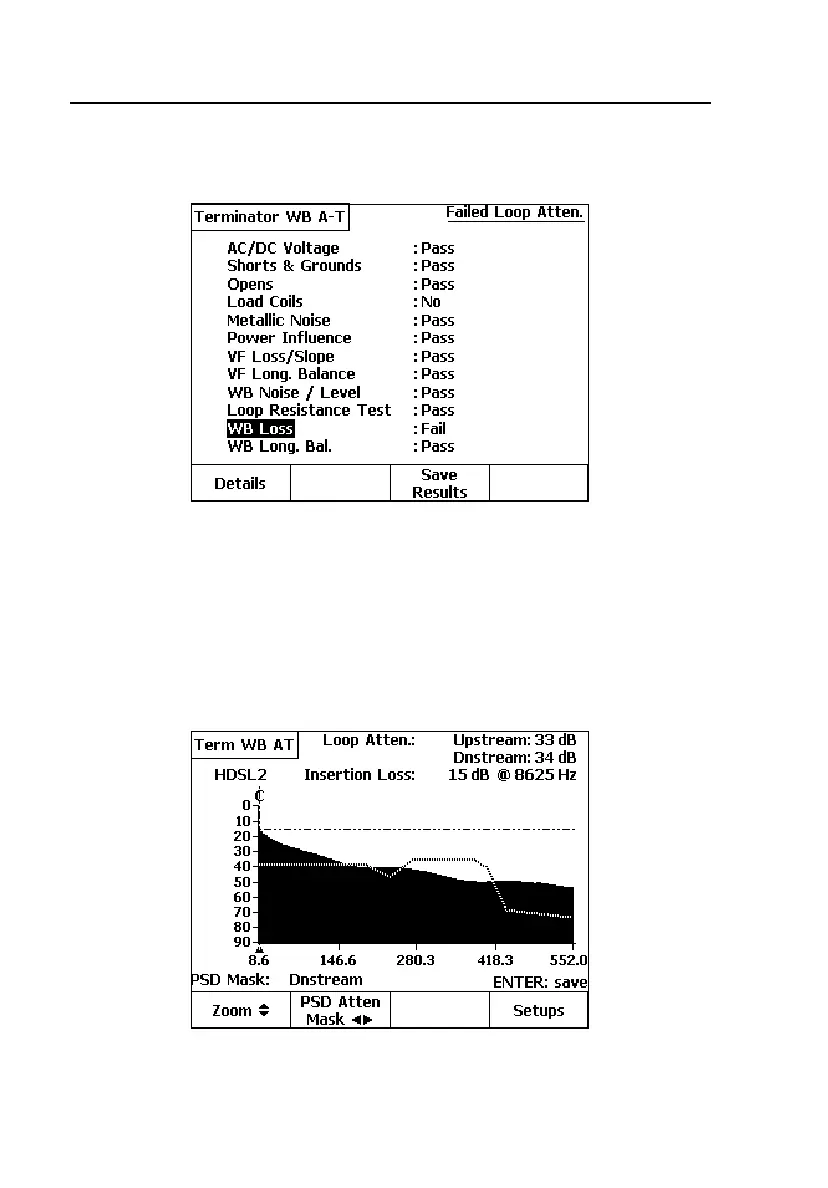

Figure 5-3. DSL Auto-Test Summary Results: HDSL2
Note that the pair failed the WB Loss test, with a descriptive message in the
upper right corner of the screen (
Failed Loop Atten.).
4. Select the desired test and press A(
Details) to view detailed test results.
Detailed results for the failed WB Loss test are shown in Figure 5-4.
acy56s.eps
Figure 5-4. DSL Auto-Test Loss Results: HDSL2 Loop Attenuation
