990DSL
Users Guide
4-70
The first failed test is highlighted by the cursor (
Loop Resistance in this
case), with a failure description in the upper right corner of the screen
(
Failed Resist. Unbal.).
4. To view detailed results for a test, follow the procedure listed earlier in
this chapter under the POTS Auto-Test section.
Detailed results for the VF Loss / Slope test are shown in Figure 4-35:
acy103s.eps

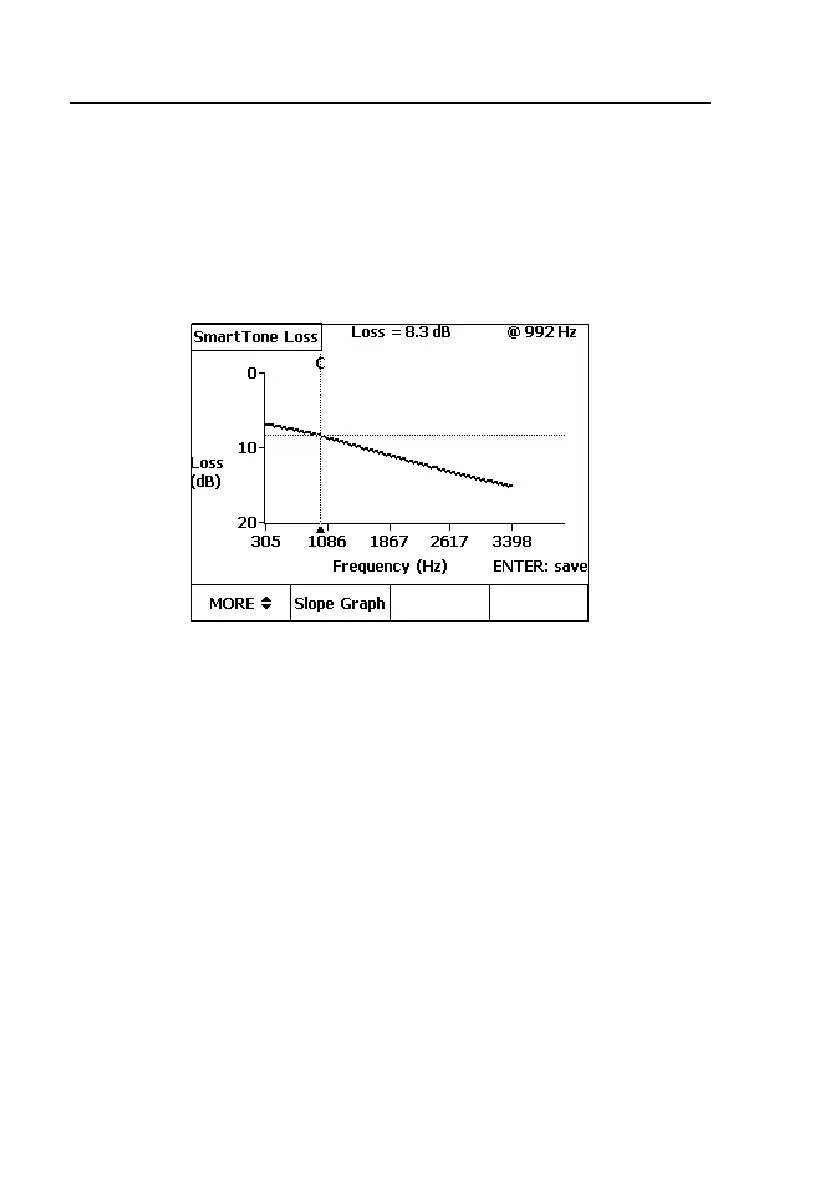

Figure 4-35. Terminator VF Auto-Test Results: Smart Tone Loss
5. Press B(Slope Graph) to view the VF Loss results in terms of Slope.
6. Press L to return to the Summary Results screen.
Saving Terminator VF Auto-Test Results
As indicated earlier in the chapter, Auto-Test results are not automatically
saved. Follow the same instructions under “Saving POTS Auto-Test Results”
to save the Terminator Auto-Test results.
