Fluke 990DSL - Impulse Noise Test Results

990DSL
Users Guide
5-44
Impulse Noise Test Results

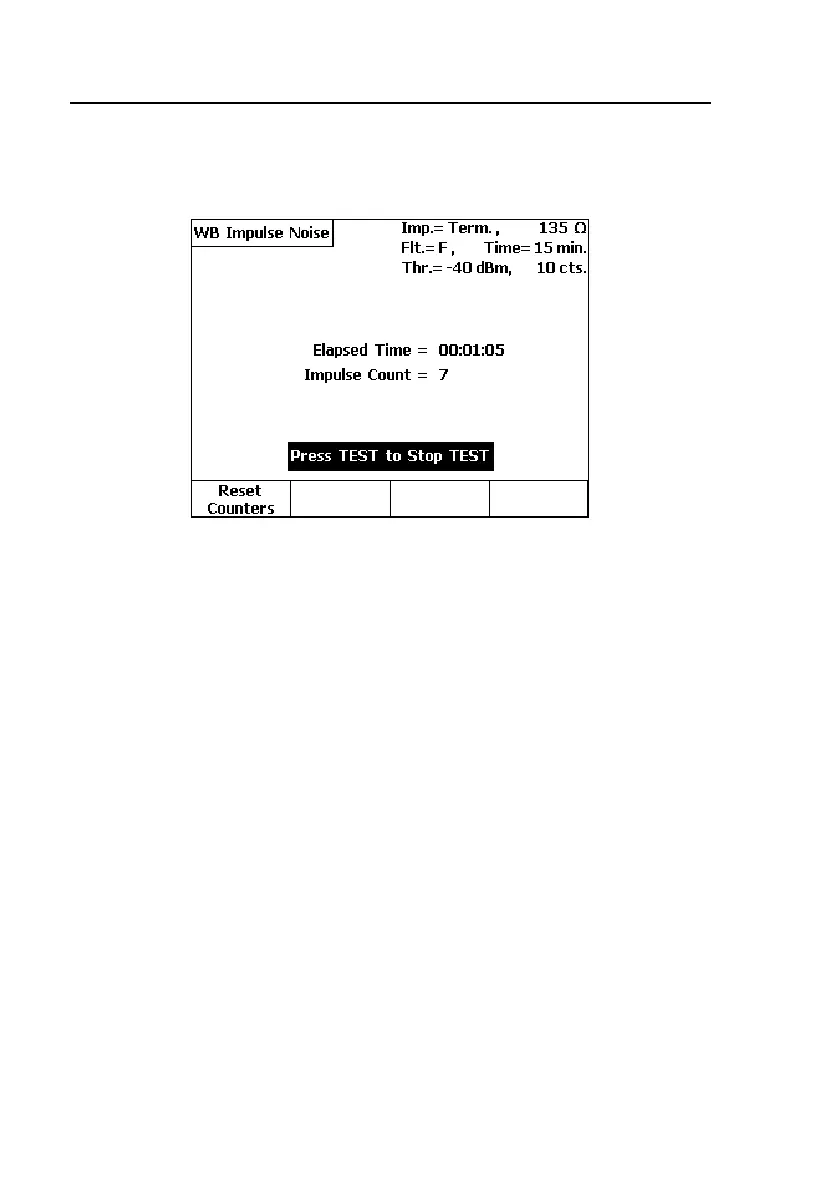

Figure 5-20 shows an example of a WB Impulse Noise test results screen.
acy105s.eps
Figure 5-20. WB Impulse Noise Test Results
3. To reset the Elapsed Time or Impulse Count at any time during the test,
press A(
Reset Counters).
4. To change the setup for the test, press K to stop the test. Then, press
D(
Setups). After you make setup changes, press K to re-start the test.
