POTS Testing and Fault Location
The POTS Toolbox
4
4-35
acy33s.eps

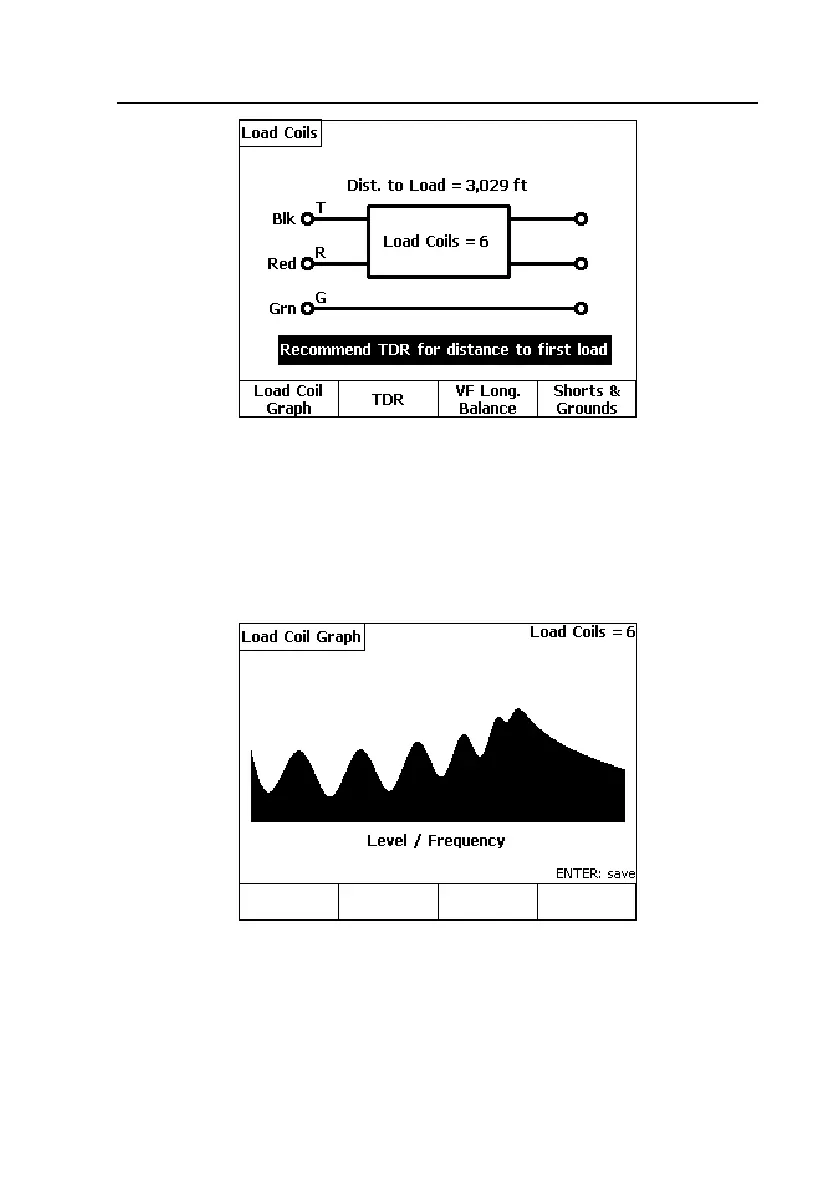

Figure 4-21. Load Coils Test Results
Figure 4-21 shows that six load coils were detected, with 3029 feet to the first.
From this result screen, you can do the following:
a) Press A (
Load Coil Graph) to view a frequency sweep graph of the test
results, like that shown in Figure 4-22:
acy34s.eps
Figure 4-22. Load Coil Graph: 6 Loads
